CDM-Qx Satellite Modem
Front Panel Operation

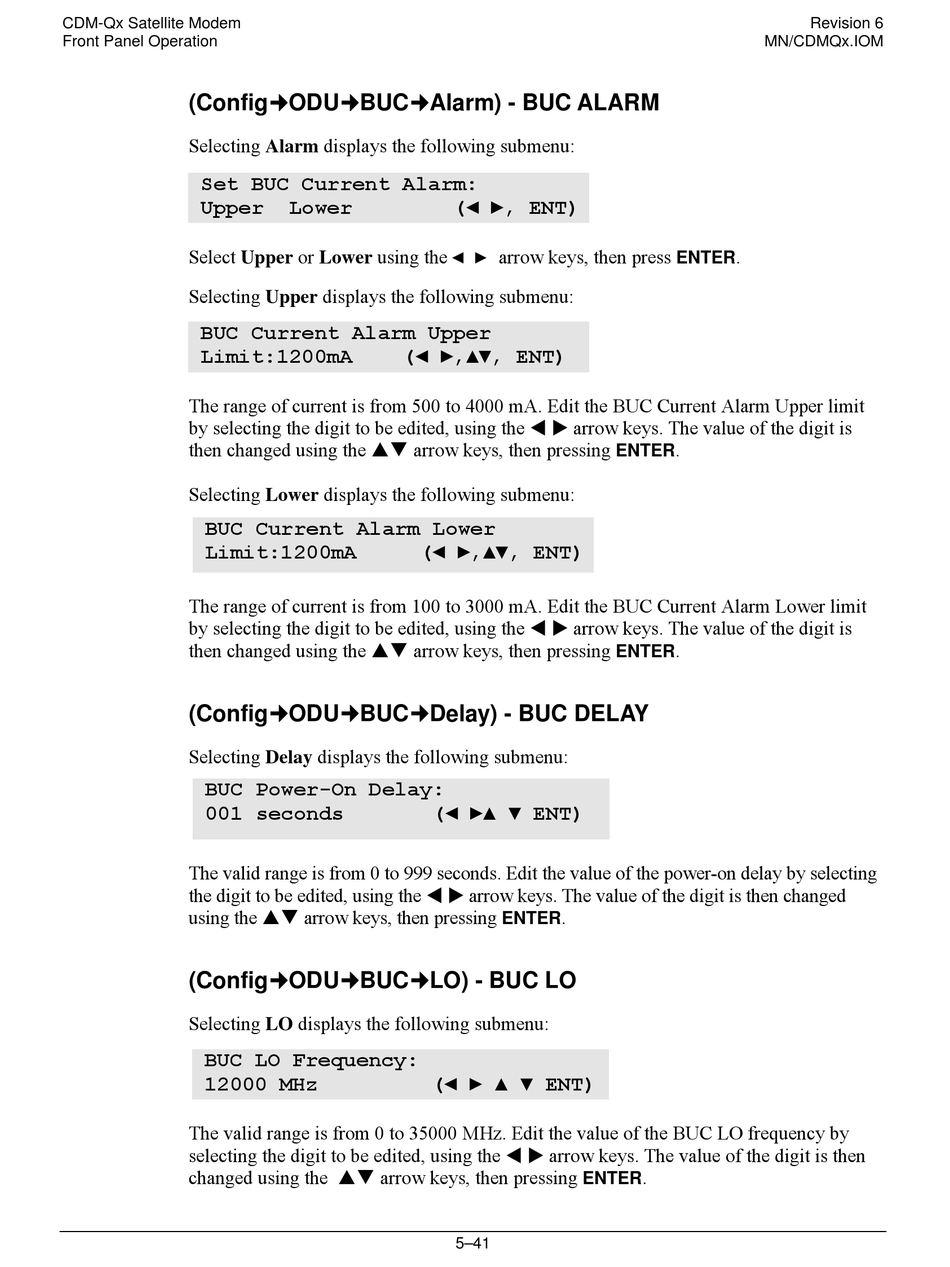

(Config%ODU%BUC%Alarm) - BUC ALARM
Selecting Alarm displays the following submenu:
Set BUC Current Alarm:
Upper
Select Upper or Lower using the ◄ ► arrow keys, then press
Selecting Upper displays the following submenu:
BUC Current Alarm Upper
Limit:1200mA
The range of current is from 500 to 4000 mA. Edit the BUC Current Alarm Upper limit
by selecting the digit to be edited, using the ! " arrow keys. The value of the digit is
then changed using the #$ arrow keys, then pressing
Selecting Lower displays the following submenu:
BUC Current Alarm Lower
Limit:1200mA
The range of current is from 100 to 3000 mA. Edit the BUC Current Alarm Lower limit
by selecting the digit to be edited, using the ! " arrow keys. The value of the digit is
then changed using the #$ arrow keys, then pressing
(Config%ODU%BUC%Delay) - BUC DELAY
Selecting Delay displays the following submenu:
BUC Power-On Delay:
001 seconds
The valid range is from 0 to 999 seconds. Edit the value of the power-on delay by selecting
the digit to be edited, using the ! " arrow keys. The value of the digit is then changed
using the #$ arrow keys, then pressing
(Config%ODU%BUC%LO) - BUC LO
Selecting LO displays the following submenu:

BUC LO Frequency:

12000 MHz
The valid range is from 0 to 35000 MHz. Edit the value of the BUC LO frequency by
selecting the digit to be edited, using the ! " arrow keys. The value of the digit is then
changed using the #$ arrow keys, then pressing
Lower (◄ ►, ENT)
(◄ ►,▲▼, ENT)
(◄ ►,▲▼, ENT)
(◄ ►▲ ▼ ENT)
(◄ ► ▲ ▼ ENT)
5–41
ENTER
.
ENTER
.
ENTER
.
ENTER
.
ENTER
Revision 6
MN/CDMQx.IOM
.
