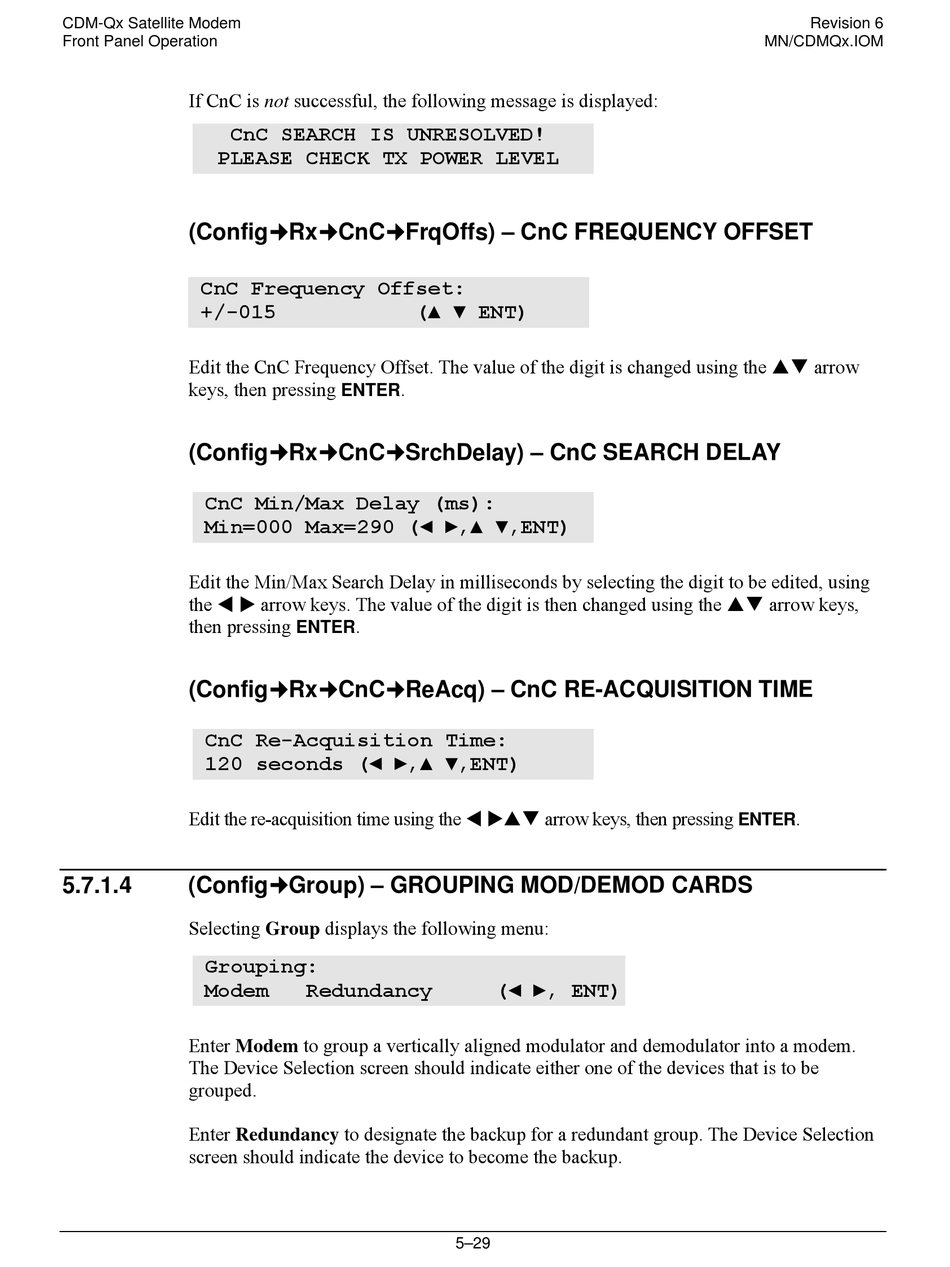

CDM-Qx Satellite Modem
Front Panel Operation
If CnC is not successful, the following message is displayed:
CnC SEARCH IS UNRESOLVED!
PLEASE CHECK TX POWER LEVEL
(Config%Rx%CnC%FrqOffs) – CnC FREQUENCY OFFSET
CnC Frequency Offset:
+/-015
Edit the CnC Frequency Offset. The value of the digit is changed using the #$ arrow
keys, then pressing
(Config%Rx%CnC%SrchDelay) – CnC SEARCH DELAY
CnC Min/Max Delay (ms):
Min=000 Max=290 (◄ ►,▲ ▼,ENT)
Edit the Min/Max Search Delay in milliseconds by selecting the digit to be edited, using
the ! " arrow keys. The value of the digit is then changed using the #$ arrow keys,
then pressing
(Config%Rx%CnC%ReAcq) – CnC RE-ACQUISITION TIME
CnC Re-Acquisition Time:
120 seconds (◄ ►,▲ ▼,ENT)
Edit the re-acquisition time using the ! "#$ arrow keys, then pressing
5.7.1.4 (Config%Group) – GROUPING MOD/DEMOD CARDS
Selecting Group displays the following menu:
Grouping:
Modem
Enter Modem to group a vertically aligned modulator and demodulator into a modem.
The Device Selection screen should indicate either one of the devices that is to be
grouped.
Enter Redundancy to designate the backup for a redundant group. The Device Selection
screen should indicate the device to become the backup.
(▲ ▼ ENT)
.
ENTER
.
ENTER
Redundancy
5–29
(◄ ►, ENT)
Revision 6
MN/CDMQx.IOM
.
ENTER
