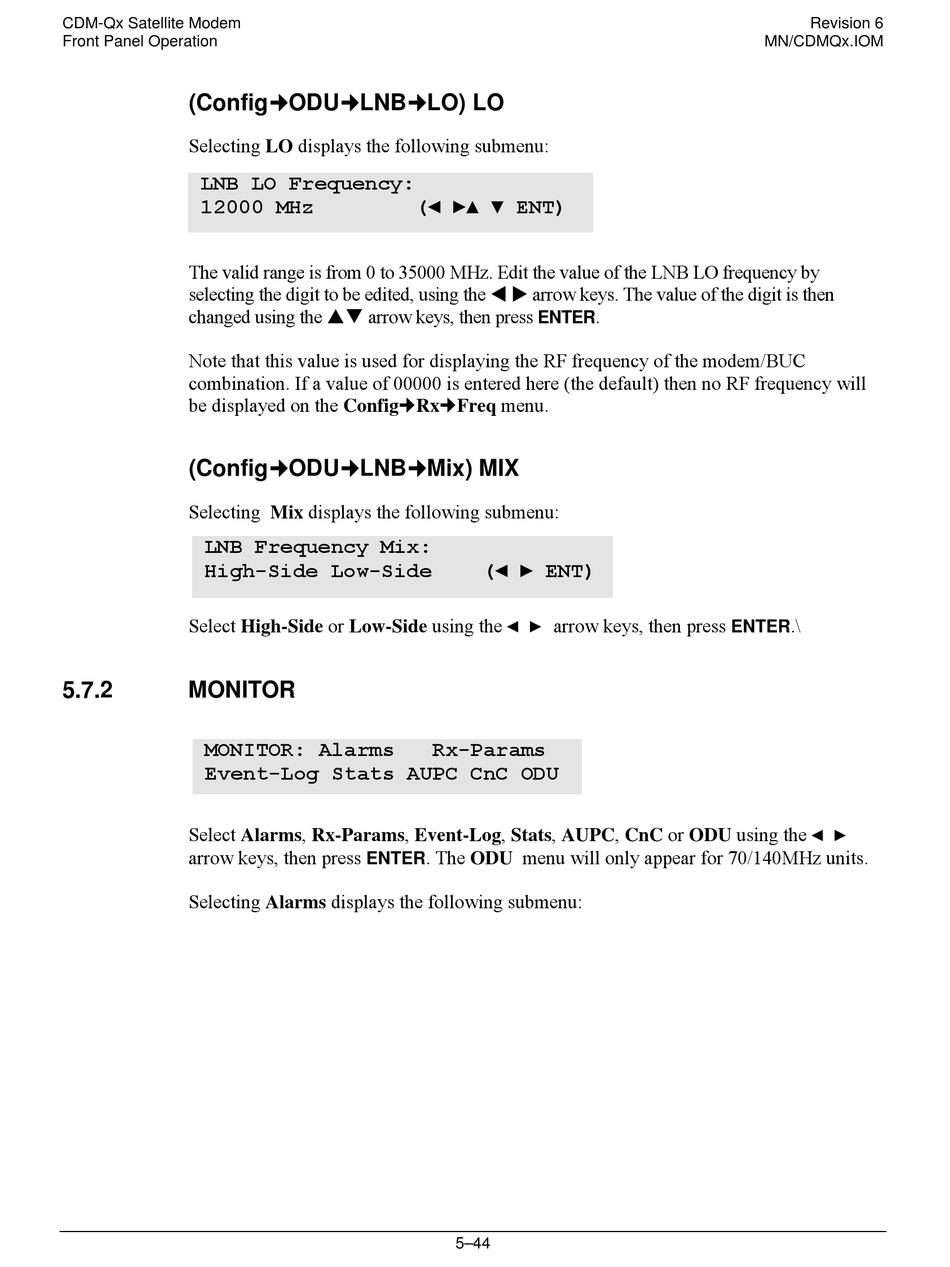

CDM-Qx Satellite Modem
Front Panel Operation
(Config%ODU%LNB%LO) LO
Selecting LO displays the following submenu:
LNB LO Frequency:
12000 MHz
The valid range is from 0 to 35000 MHz. Edit the value of the LNB LO frequency by
selecting the digit to be edited, using the ! " arrow keys. The value of the digit is then
changed using the #$ arrow keys, then press
Note that this value is used for displaying the RF frequency of the modem/BUC
combination. If a value of 00000 is entered here (the default) then no RF frequency will
be displayed on the Config%Rx%Freq menu.
(Config%ODU%LNB%Mix) MIX
Selecting Mix displays the following submenu:
LNB Frequency Mix:
High-Side Low-Side
Select High-Side or Low-Side using the ◄ ► arrow keys, then press
5.7.2

MONITOR

MONITOR: Alarms
Event-Log Stats AUPC CnC ODU
Select Alarms, Rx-Params, Event-Log, Stats, AUPC, CnC or ODU using the ◄ ►
arrow keys, then press
Selecting Alarms displays the following submenu:
(◄ ►▲ ▼ ENT)
ENTER
(◄ ► ENT)
Rx-Params
. The ODU menu will only appear for 70/140MHz units.
ENTER
5–44
MN/CDMQx.IOM
.
ENTER
Revision 6
.\
