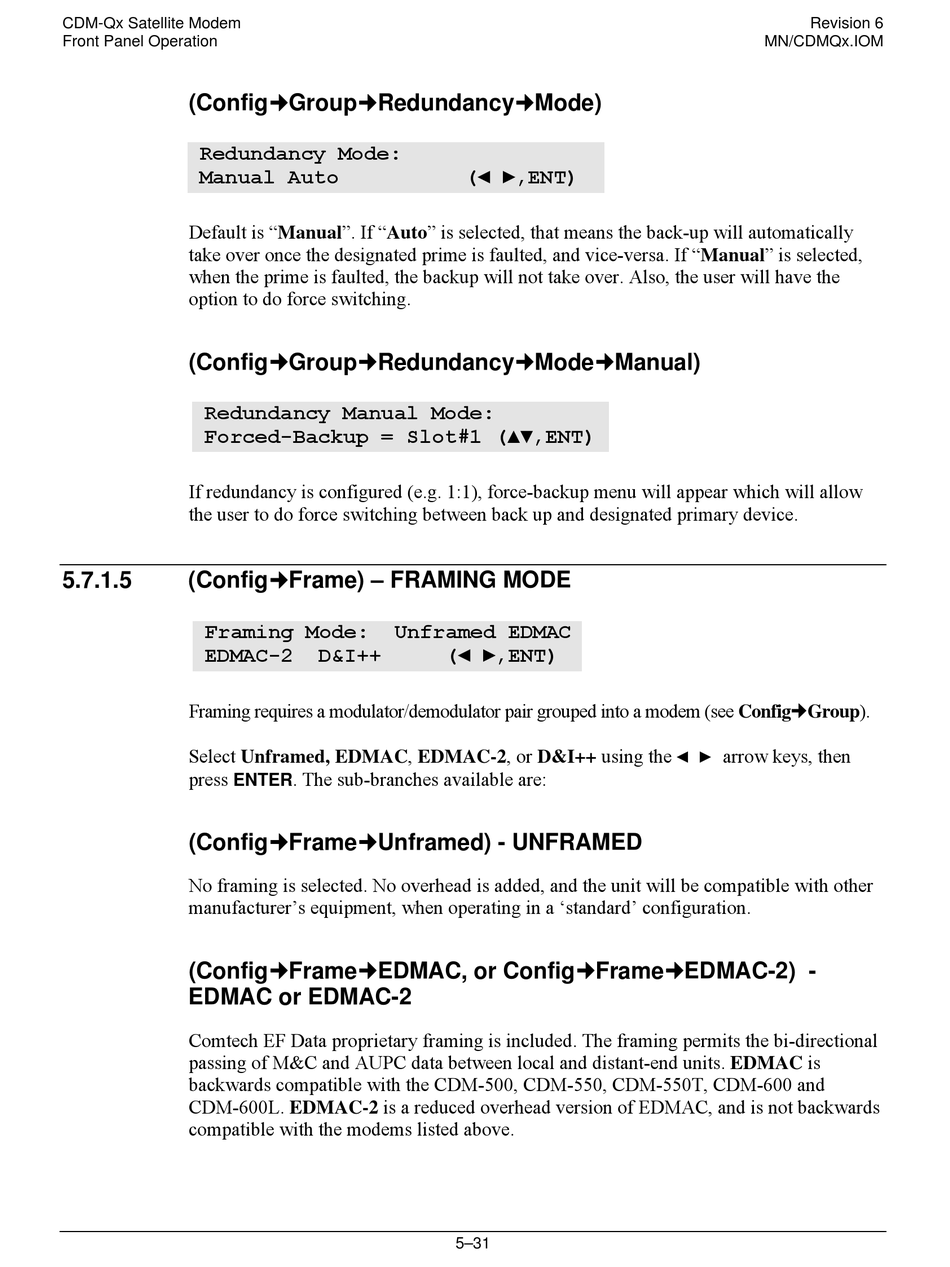

CDM-Qx Satellite Modem
Front Panel Operation
(Config%Group%Redundancy%Mode)
Redundancy Mode:
Manual Auto
Default is "Manual". If "Auto" is selected, that means the back-up will automatically
take over once the designated prime is faulted, and vice-versa. If "Manual" is selected,
when the prime is faulted, the backup will not take over. Also, the user will have the
option to do force switching.
(Config%Group%Redundancy%Mode%Manual)
Redundancy Manual Mode:
Forced-Backup = Slot#1 (▲▼,ENT)
If redundancy is configured (e.g. 1:1), force-backup menu will appear which will allow
the user to do force switching between back up and designated primary device.
5.7.1.5 (Config%Frame) – FRAMING MODE
Framing Mode:
EDMAC-2
Framing requires a modulator/demodulator pair grouped into a modem (see Config%Group).
Select Unframed, EDMAC, EDMAC-2, or D&I++ using the ◄ ► arrow keys, then
press
ENTER
(Config%Frame%Unframed) - UNFRAMED
No framing is selected. No overhead is added, and the unit will be compatible with other
manufacturer's equipment, when operating in a 'standard' configuration.
(Config%Frame%EDMAC, or Config%Frame%EDMAC-2) -
EDMAC or EDMAC-2
Comtech EF Data proprietary framing is included. The framing permits the bi-directional
passing of M&C and AUPC data between local and distant-end units. EDMAC is
backwards compatible with the CDM-500, CDM-550, CDM-550T, CDM-600 and
CDM-600L. EDMAC-2 is a reduced overhead version of EDMAC, and is not backwards
compatible with the modems listed above.
(◄ ►,ENT)
Unframed EDMAC
D&I++ (◄ ►,ENT)
. The sub-branches available are:
5–31
Revision 6
MN/CDMQx.IOM
