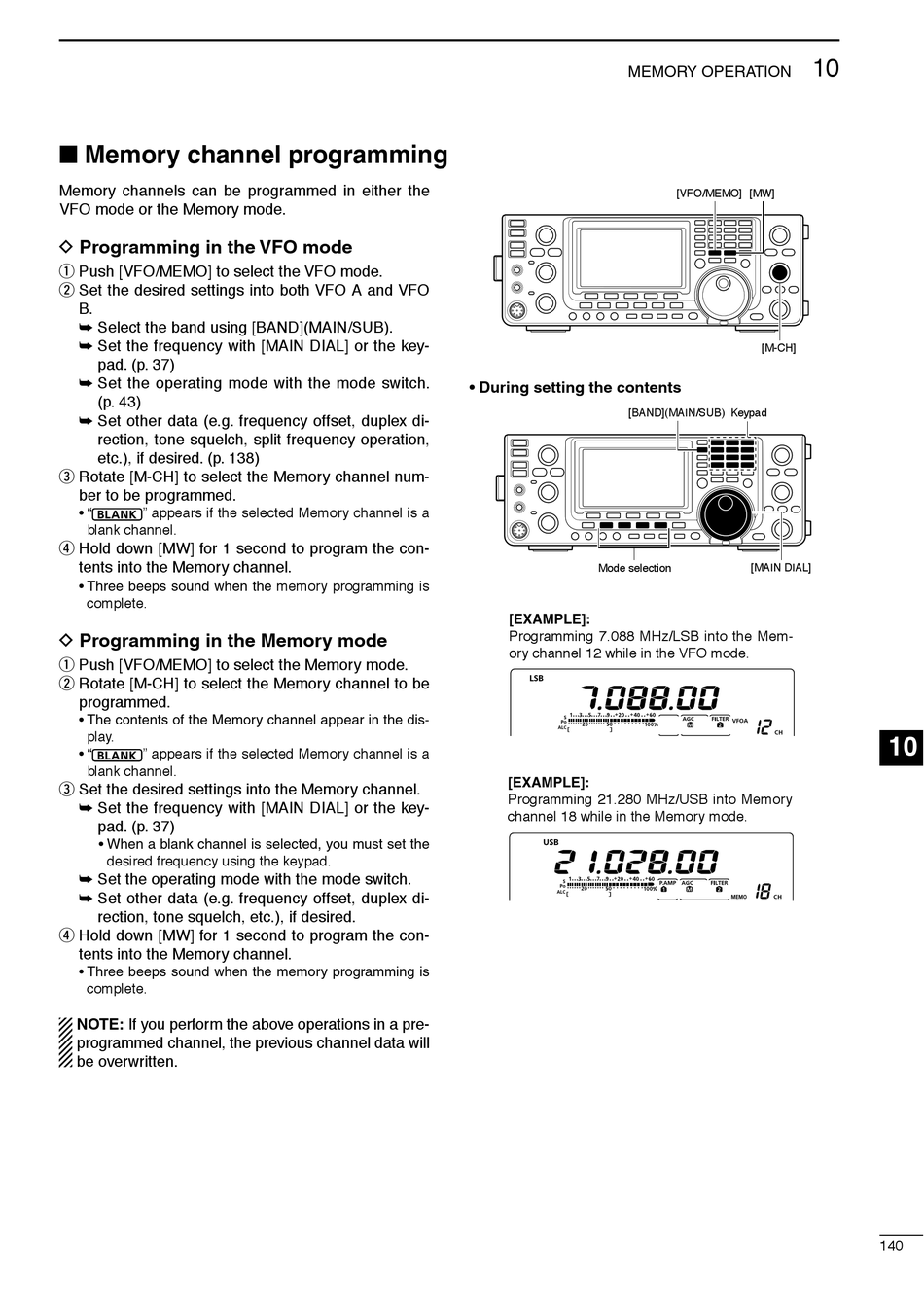

Memory channels can be programmed in either the
VFO mode or the Memory mode.
D
q Push [VFO/MEMO] to select the VFO mode.
w Set the desired settings into both VFO A and VFO
B.
Select the band using [BAND](MAIN/SUB).
Set the frequency with [MAIN DIAL] or the key-
pad. (p. 37)
Set the operating mode with the mode switch.
(p. 43)
Set other data (e.g. frequency offset, duplex di-
rection, tone squelch, split frequency operation,
etc.), if desired. (p. 138)
e Rotate [M-CH] to select the Memory channel num-
ber to be programmed.
" appears if the selected Memory channel is a
blank channel.
r Hold down [MW] for 1 second to program the con-
tents into the Memory channel.
complete.
D
q Push [VFO/MEMO] to select the Memory mode.
w Rotate [M-CH] to select the Memory channel to be
programmed.
play.
" appears if the selected Memory channel is a
blank channel.
e Set the desired settings into the Memory channel.
Set the frequency with [MAIN DIAL] or the key-
pad. (p. 37)
desired frequency using the keypad.
Set the operating mode with the mode switch.
Set other data (e.g. frequency offset, duplex di-
rection, tone squelch, etc.), if desired.
r Hold down [MW] for 1 second to program the con-
tents into the Memory channel.
complete.
If you perform the above operations in a pre-
programmed channel, the previous channel data will
be overwritten.
memory programming is
-
[VFO/MEMO] [MW]
[BAND](MAIN/SUB)
Mode selection
Programming 7.088 MHz/LSB into the Mem-
ory channel 12 while in the VFO mode.
Programming 21.280 MHz/USB into Memory
M1
channel 18 while in the Memory mode.
A G C D U P C O M P T B W
M1
A G C D U P C O M P T B W
10
[M-CH]
1
Keypad
2
3
4
5
[MAIN DIAL]
6
7
8
9
10
11
12
S C P
13
14
15
16
S C P
17
18
19
20
21
