OPTION INSTALLATION
UX-9100
The optional UX-9100 is required to operate on the
1200 MHz frequency band.
q Remove the top and bottom covers as shown in the
diagram on page 174.
w Remove the antenna plate from the chassis on the
rear panel using a standard flat screwdriver.
R WARNING! NEVER push on the antenna plate
using your finger to remove it. This may cause an
injury.

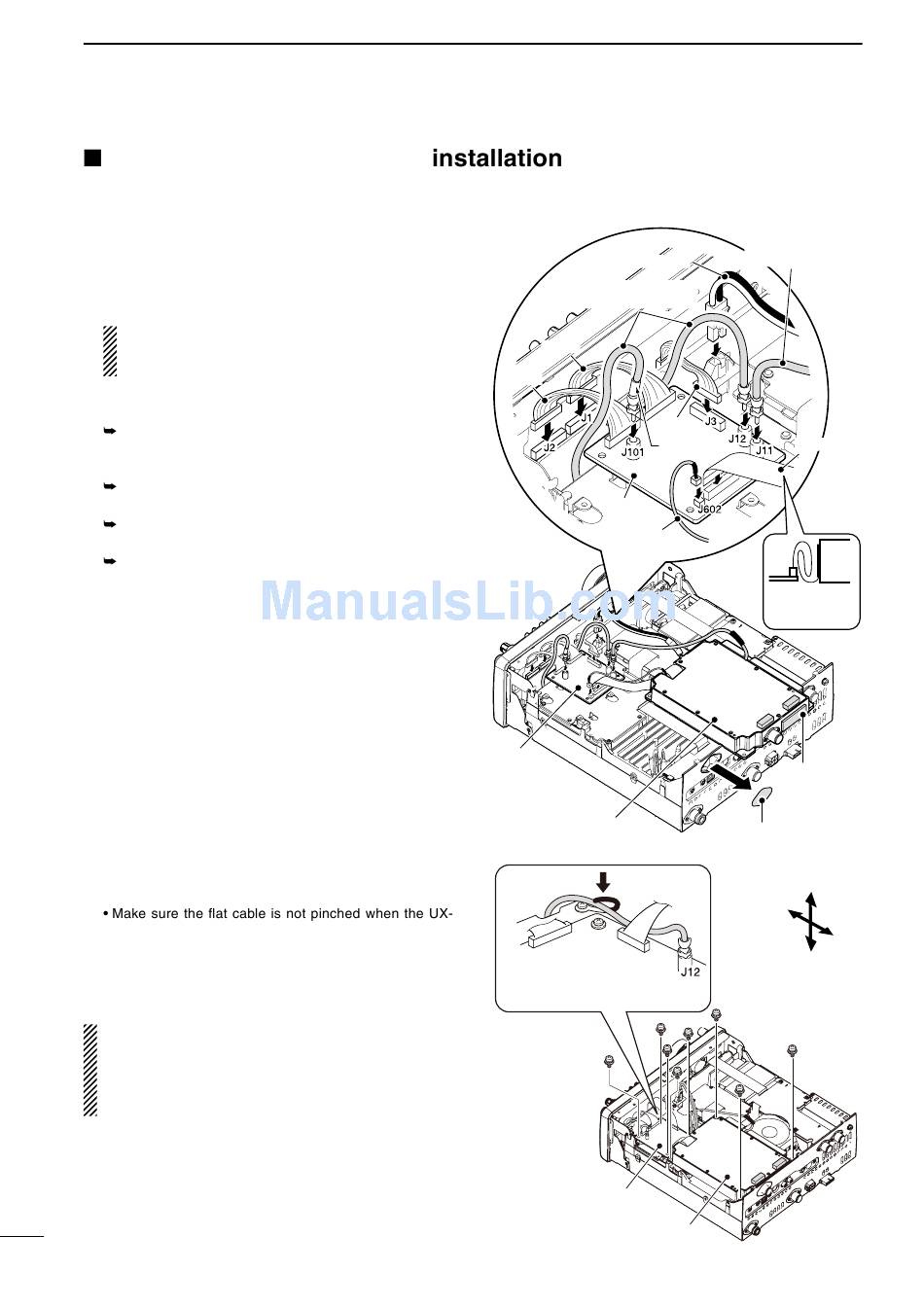

e Connect the DC power cable, coaxial cables, shield
cable and flat cable, as shown to the right.
Connect the longer coaxial cable from the trans-
ceiver to J12, and the other one, with a white
mark near the connector, to J101 on the IF unit.
Connect the coaxial cable from the UX-9100's
main unit to J11 on the IF unit.
Connect the shield cable from the UX-9100's
main unit to J602 on the IF unit.
Ensure the flat cable is connected to the IF unit
correctly, and not upside down.
After connecting, fold the cable, but not too
tightly, as illustrated to the right.
r Connect the 9-pin connector from the transceiver's
front unit to J3 on the IF unit.
t Connect the 12-pin connector from the IF unit to J1,
and the 11-pin connector to J2 on the transceiver's
front unit.
y Attach the UX-9100 and IF unit using the eight sup-
plied screws.
9100 is installed.
u Return the top and bottom covers to their original
positions.
R WARNING! When UX-9100 is installed, the unit
continues to draw current, even when the trans-
ceiver is turned OFF. Therefore, when you don't in-
tend to use the transceiver for a long period of time,
disconnect the transceiver's DC power cable.
175
MHz BAND UNIT
1200
DC power cable
Coaxial cable
(from the transceiver)
12-pin
11-pin
9-pin
White mark
IF unit
Shield
cable
IF unit
UX-9100
Secure the coaxial cable, con-
necting to J12 on the IF unit,
by the clip, as shown here.
IF unit
UX-9100
Coaxial cable
(from the UX-9100)
Flat cable
After connect-
ing, fold the
cable like this.
Shield
sponge
Antenna plate
Bottom
Front
Rear
Top
