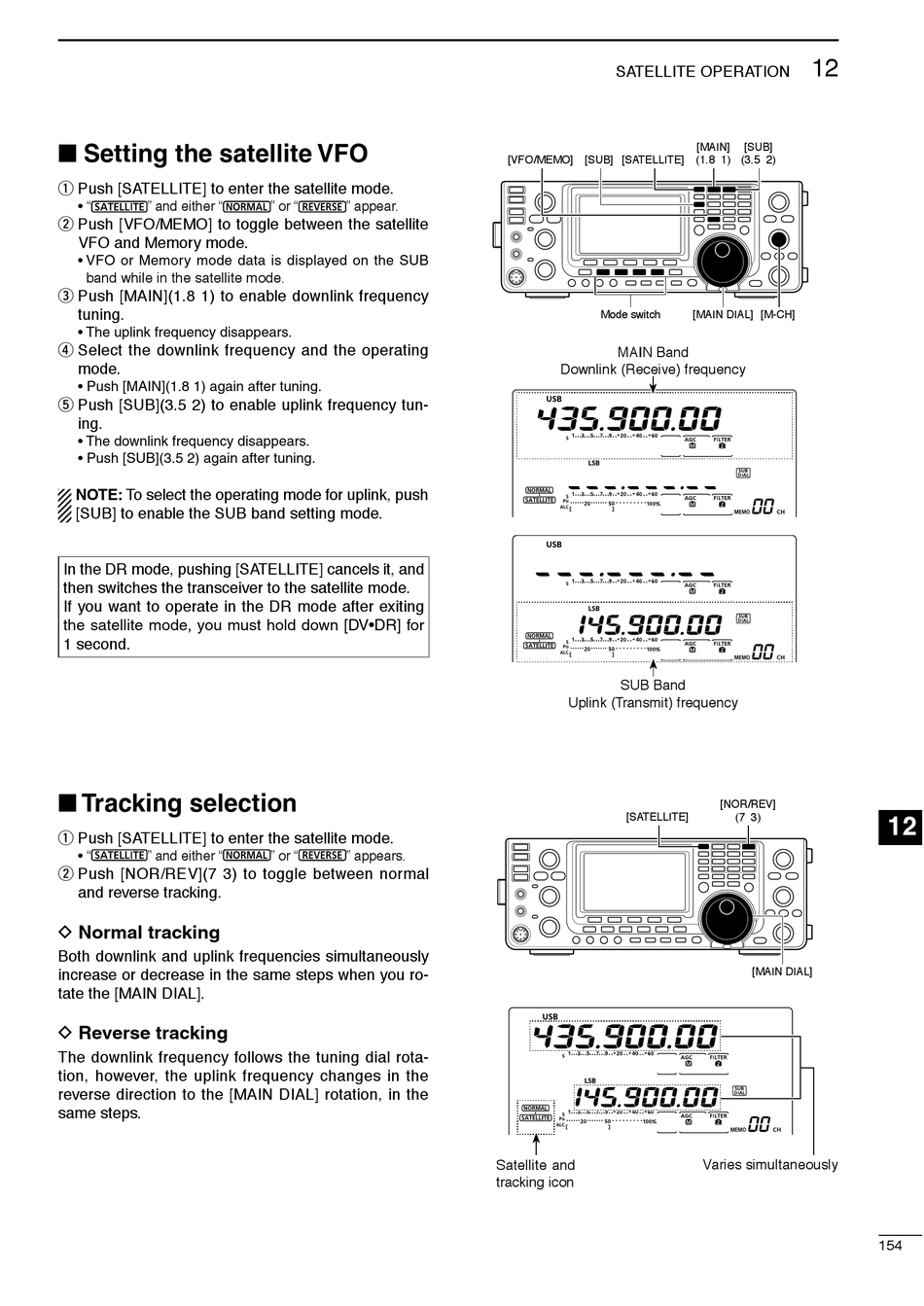

q Push [SATELLITE] to enter the satellite mode.
" " and either "
w Push [VFO/MEMO] to toggle between the satellite
VFO and Memory mode.
band while in the satellite mode.
e Push [MAIN](1.8 1) to enable downlink frequency
tuning.
r Select the downlink frequency and the operating
mode.
t Push [SUB](3.5 2) to enable uplink frequency tun-
ing.
To select the operating mode for uplink, push
[SUB] to enable the SUB band setting mode.
In the DR mode, pushing [SATELLITE] cancels it, and
then switches the transceiver to the satellite mode.
If you want to operate in the DR mode after exiting
1 second.
q Push [SATELLITE] to enter the satellite mode.
" " and either "
w Push [NOR/REV](7 3) to toggle between normal
and reverse tracking.
D
Both downlink and uplink frequencies simultaneously
increase or decrease in the same steps when you ro-
tate the [MAIN DIAL].
D
The downlink frequency follows the tuning dial rota-
tion, however, the uplink frequency changes in the
reverse direction to the [MAIN DIAL] rotation, in the
same steps.
" or " " appear.
" or " " appears.
SATELLITE OPERATION
[VFO/MEMO] [SUB] [SATELLITE]
Mode switch
MAIN Band
Downlink (Receive) frequency
M1
A G C D U P C O M P T B W
M1
SUB Band
A G C D U P C O M P T B W
Uplink (Transmit) frequency
[SATELLITE]
M1
A G C D U P C O M P T B W
Satellite and
tracking icon
12
[MAIN] [SUB]
(1.8 1) (3.5 2)
[MAIN DIAL] [M-CH]
S C P
S C P
[NOR/REV]
(7 3)
[MAIN DIAL]
S C P
Varies simultaneously
