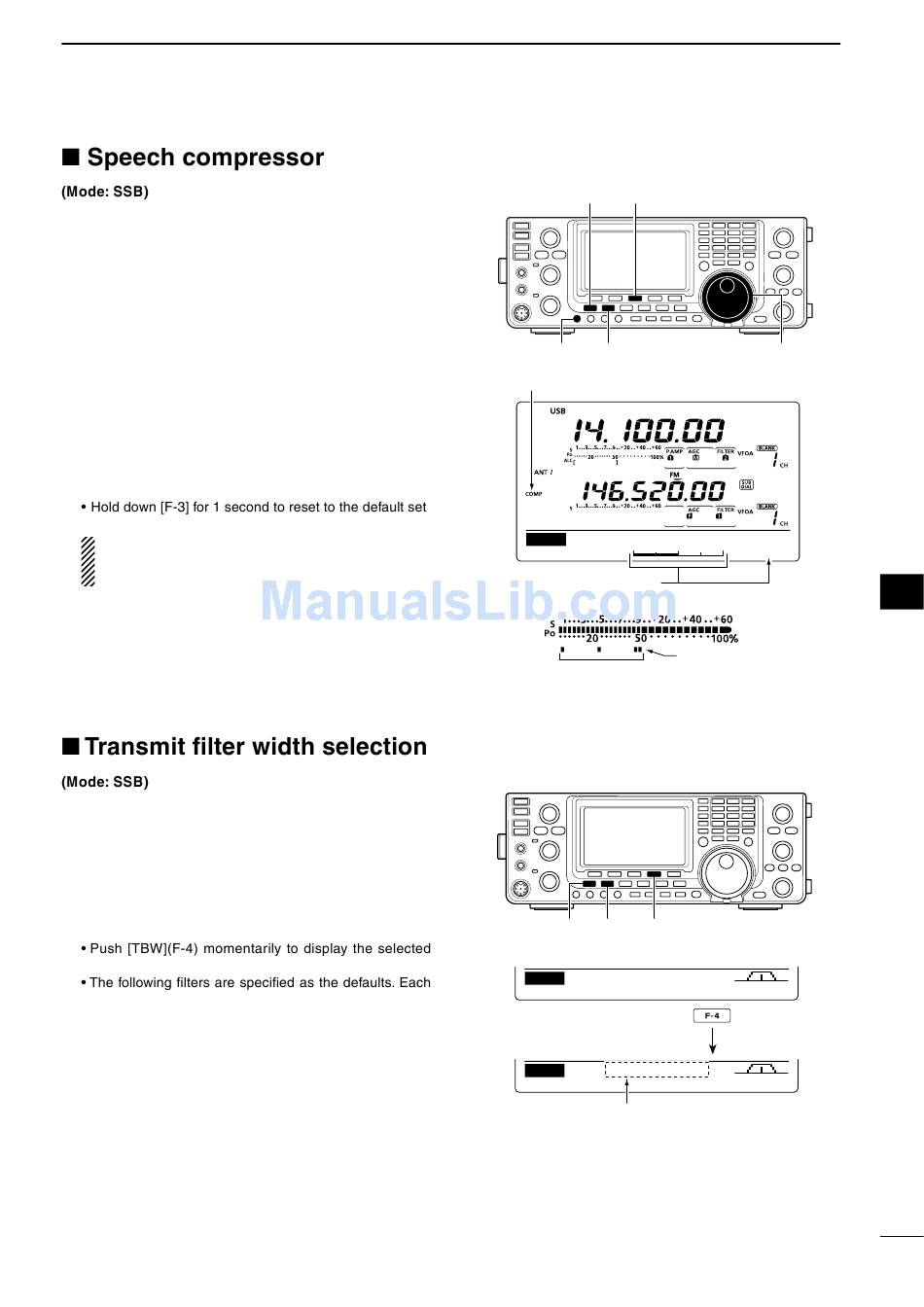

Speech Compressor; Transmit Filter Width Selection - Icom IC-9100 Instruction Manual

The Speech Compressor function increases average
RF output power, improving signal strength and read-
ability.
q Push [SSB] to select the USB or LSB mode.
w Adjust the [MIC GAIN] control so that the ALC
meter reads within the ALC zone, whether or not
you speak softly or loudly.
e Push [MENU] to display the "M1" screen (Menu 1),
then push [COMP](F-3) to turn ON the Speech Com-
pressor.
r Hold down [COMP](F-3) for 1 second to display the
"COMP" screen (Compressor).
t While speaking into the microphone at your normal
voice level, rotate [MAIN DIAL] so the COMP meter
reads within the COMP zone.
ting, if desired.
When the COMP meter peaks above the COMP
level zone, your transmitted voice may be dis-
torted.
y Push [MENU] to return to the previous menu.
The transmit filter width for the SSB mode can be se-
lected from Wide, Mid or Narrow.
q Push [SSB] to select the USB or LSB mode.
w Push [MENU] to display the "M1" screen (Menu
1), then hold down [TBW](F-4) for 1 second, one
or more times, to select a Wide, Mid or Narrow
transmission passband width.
TX filter width for approximately 1 second.
of the filter widths can be set in the Tone control Set
mode. (pp. 169, 170)
- WIDE : 100 Hz to 2900 Hz
- MID : 300 Hz to 2700 Hz
- NAR : 500 Hz to 2500 Hz
FUNCTIONS FOR TRANSMIT
[MENU]
[MIC GAIN] [SSB]
Appears
-
COMP Level
COMP
Shows the compression level
COMP level zone
[MENU] [SSB]
M1
A G C D U P
M1
A G C D U P
The selected transmit filter width is
displayed for approximately 1 second.
[COMP]
[MAIN DIAL]
5
COMP meter
[TBW]
C O M P T B W S C P
Hold down
T B W W I D E
C O M P T B W S C P
