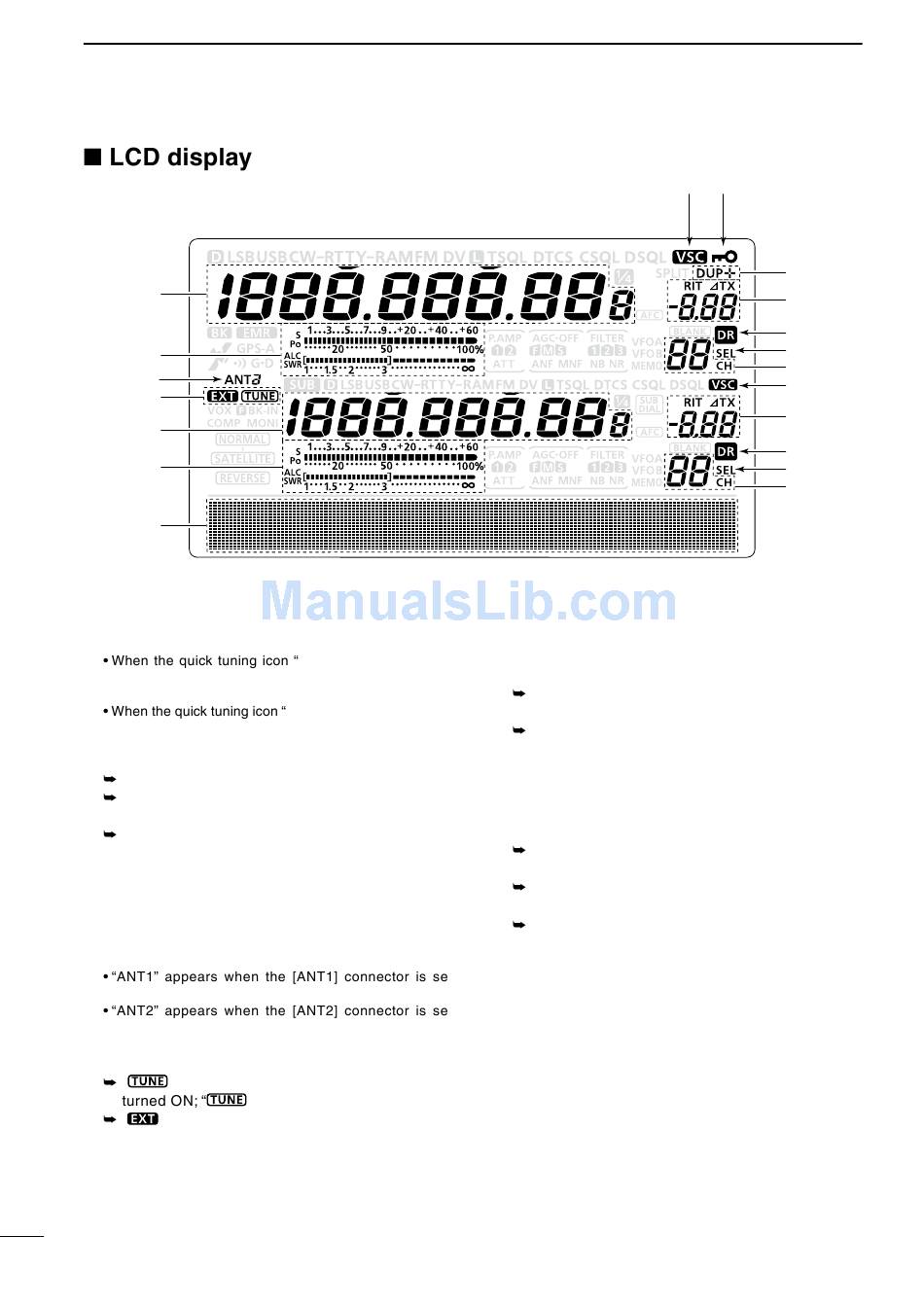

PANEL DESCRIPTION
q
w
e
r
q
w
t
q FREQUENCY READOUTS
Displays the operating frequency.
quency changes in pre-set kHz or 1 MHz quick tuning
steps. (p. 38)
quency changes in 10 Hz or 1 Hz steps. (pp. 37, 39)
w MULTI-FUNCTION METER INDICATION
Displays the signal strength while receiving.
Displays the relative output power, SWR, ALC or
compression levels while transmitting.
When the Meter Peak Hold function is ON, the
peak level of a received signal strength or the
output power is displayed for approximately 0.5
seconds.
e ANTENNA ICON (p. 158)
Displays which antenna connector is selected for
HF/50 MHz.
lected.
lected.
r ANTENNA TUNER ICONS (pp. 159, 160)
" " appears when the antenna tuner is
" " appears when the optional AH-4 external
antenna tuner is connected to the [ANT1] con-
nector, and [ANT1] is selected.
t FUNCTION DISPLAY (p. 19)
Shows the function of the function switches ([F1]–
[F5]), Set mode items and IF passband width.
15
Z" is displayed, the fre-
Z" is not displayed, the fre-
" blinks during tuning.
y MEMORY CHANNEL READOUTS
Displays the selected memory channel.
u SELECT MEMORY CHANNEL ICON
Appears when the selected memory channel is
set as a select memory channel. (p. 151)
Appears when the repeater can be selected as
the access repeater in the DR mode. (p. 100)
i DR MODE ICON (p. 43)
Appears when the DR mode is selected.
o RIT/∂TX ICONS (pp. 69, 81)
"RIT" appears when the RIT function is turned
ON.
"∂TX" appears when the ∂TX function is turned
ON.
Shows the shift frequency of the RIT or ∂TX
function.
!0 VOICE SQUELCH CONTROL ICON (p. 146)
-
Appears when the VSC (Voice Squelch Control)
-
function is turned ON.
!1 DUPLEX ICON (p. 65)
"DUP+" appears when plus duplex, "DUP –" ap-
pears when minus duplex (repeater) operation is
selected.
!2 DIAL LOCK ICON (p. 77)
Appears when the Dial Lock function is turned ON.
!0 !2
!1
o
i
u
y
!0
o
i
u
y
