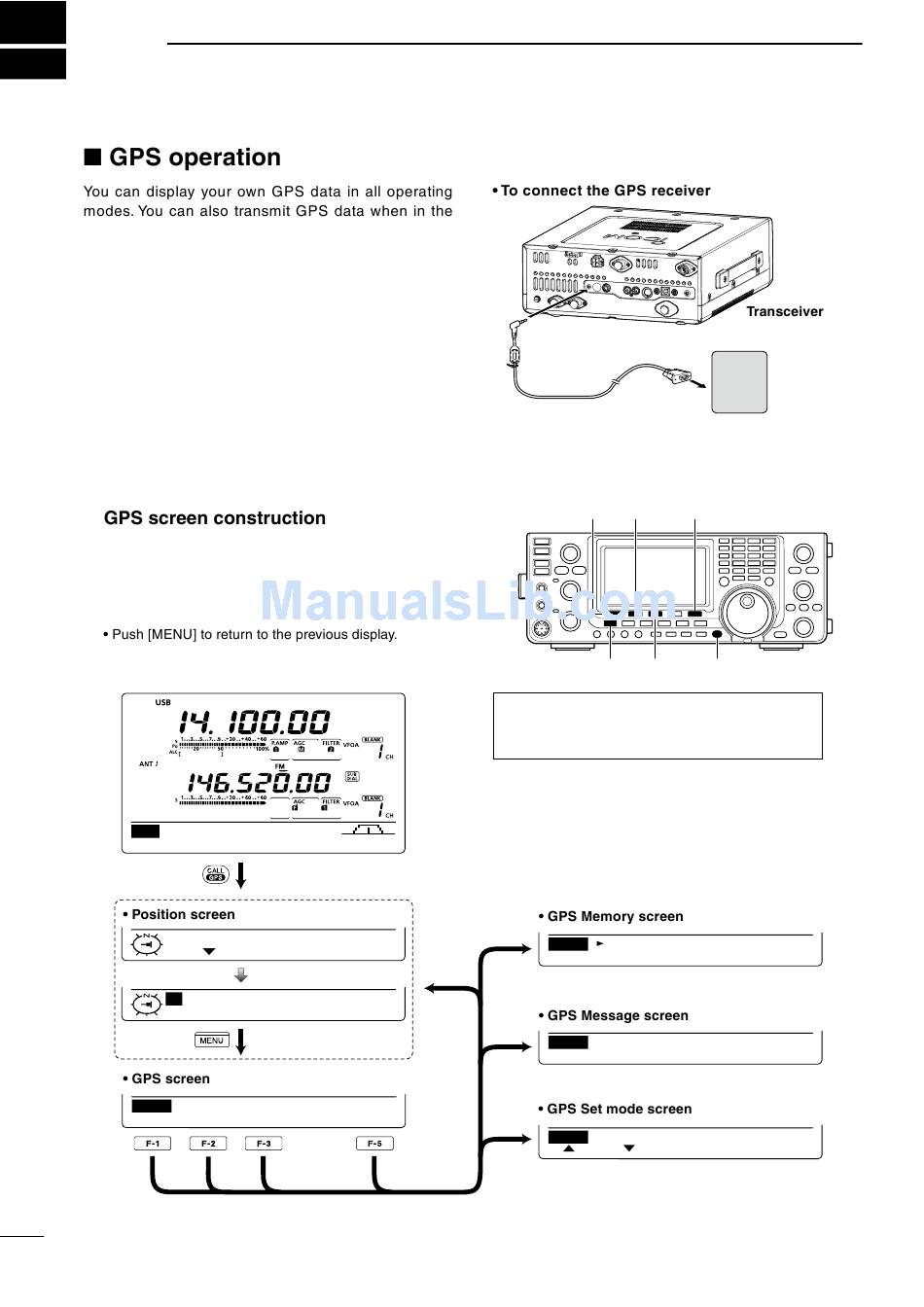

GPS/GPS-A OPERATION
DV mode. To receive GPS data, connect a third-party
GPS receiver that has an RS-232C output and NMEA
data format. Third-party GPS receivers connect to the
[DATA1] jack of the transceiver.
In addition, GPS messages can also be transmitted in
the GPS mode.
D
q Hold down [CALL/GPS] for 1 second to display the
"GPS" screen.
w Push [POS](F-1), [GPM](F-2), [MSG](F-3) or [SET]
(F-5) to select the desired menu.
See the diagram below.
M1
A G C D U P
M Y P o s i t i o n
M
3 5 ˚ 4 5 . 0 0 ' N E L E : − − − − f t
1 3 5 ˚ 3 6 . 0 0 ' E 1 2 : 0 0 : 0 0
GPS
P O S G P M
121
C O M P T B W S C P
Hold down
(p. 123)
G L W R
Approximately 2 seconds
Push
M S G S E T
To the [DATA1] jack
OPC-1529R
(optional)
[POS]
[MENU] [MSG]
The screen you want to appear first can be se-
lected between GPS and Position in the "GPS
1st Menu" item of the Set mode. (p. 165)
GPM R X
[F-2]
[F-1]
MSG G P S M e s s a g e
T X M R X M
[F-3]
G P S R e c e i v e r B a u d
SET
1
[F-5]
(Rear panel)
GPS
receiver
to the RS-232C port
( null modem adapter
is required)
[GPM] [SET]
[CALL/GPS]
(p. 127)
A L M
(p. 125)
(p. 132)
4 8 0 0
