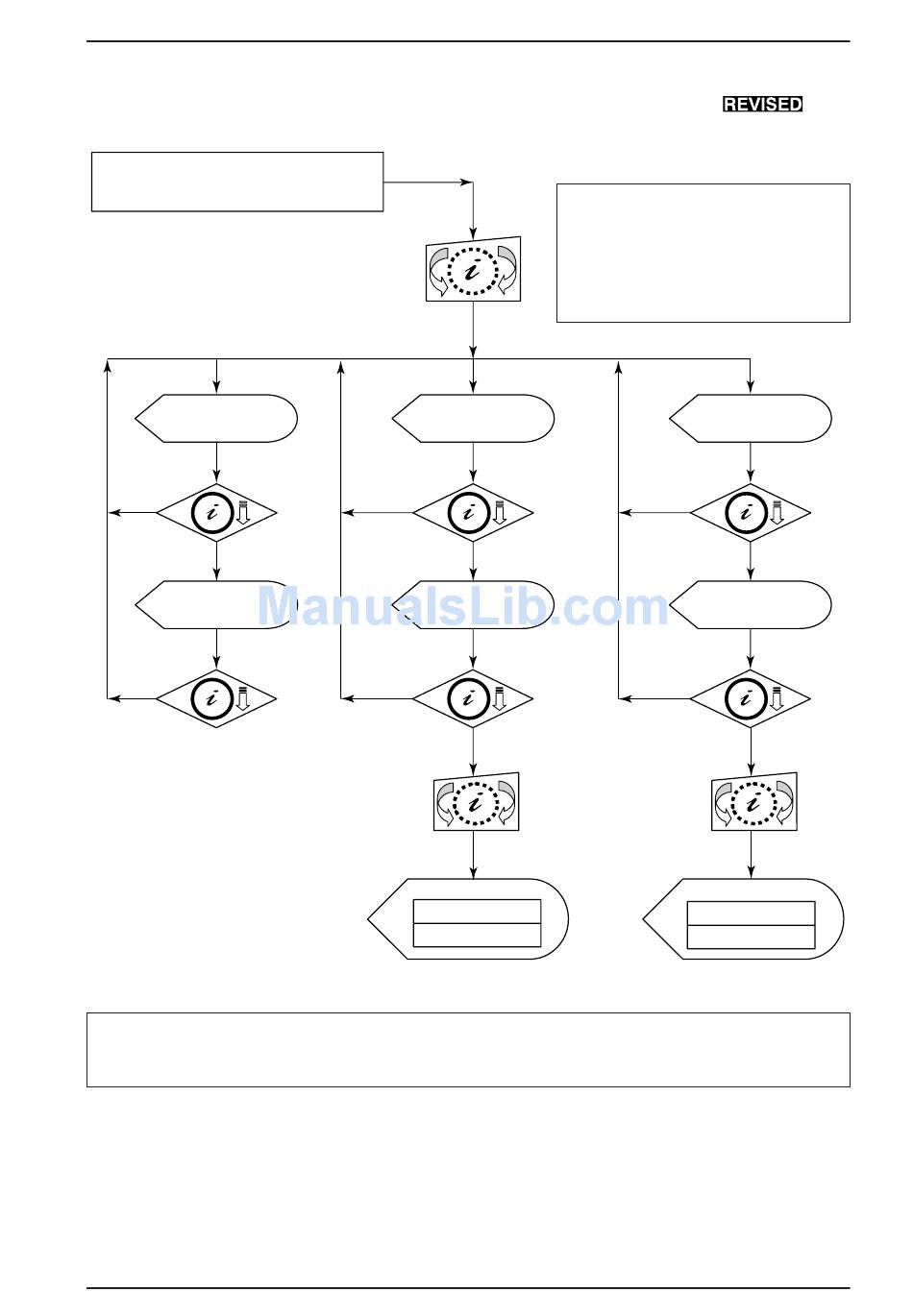

5.3 Setup menu
5.3.1.3

Cleaning module and lifting module parameters

5.2.b Access to the setup menu
(See chapter 5.3.1.1)
Display
Parameter menu
clean module (2)?
no
yes
Display
Return to setup
module selection?
yes
no
Note:
If the I-button is turned in an anti-clockwise direction the cursor works in the opposite direction, i.e. the menu is called
up from the last to the first parameter. The last saved cursor can be called up again after quitting the menu, e.g. by
switching back to the standard display (battery display).
Service Manual 08.2007
Basic settings and service procedures
If the i-button is not pressed within 30 seconds
Display
Parameter menu
lifting module(1)?
no
yes
Display
Return to setup
module selection?
yes
no
Display
max speed
M2/D-S 40%
max speed
M2/U-S 40%
Note:
the program automatically switches to
Battery: E.......F
Water/C: E.......F
Then restart as described in Chapter 5.3.1.1
Display
Parameter menu
lifting module (2)?
no
yes
Display
Return to setup
module selection?
yes
no
Display
max speed
M2/D-S
max speed
M2/U-S
Page 93 / 171
40%
40%
