BR/BD 100/250 R BP / RI

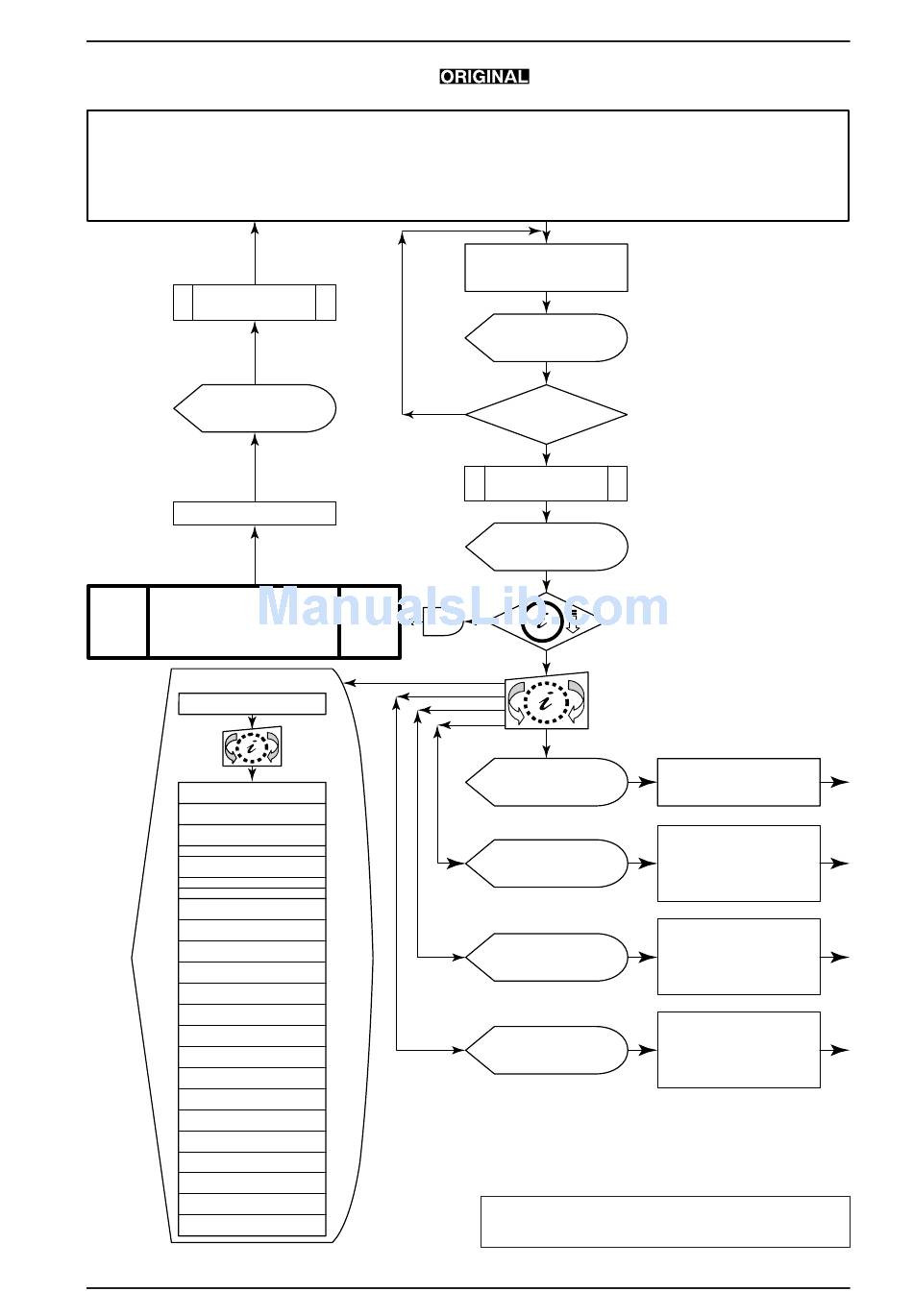

5.2.1 Access to the test mode

Requirements
- Unit switched off
- Program switch in Pos 1 (drive)
- Key switch (SO) in „O" position
Main relay (K1)
switches off
Display
shutdown takes
a few seconds
Switch off key switch (SO)
Display
Battery: E....F
Water/C: E....F
Display
Battery voltage
37,4 V = 2,07 V/Z
fan off:
0,0A
program switch 1-8:
Vor:0 USR:0
WORK:0 Rund:00
I_traction motor:0,0A
Direction switch
for traction
seat switch=
gas pedal voltage=0,0V
temp. traction
module: 21°C
I_brush:
0,0A
I_vacuum:
0,0A
I_waterpump:
0,0A
water valve
closed
module temprat.
clean. unit:18°C
switch brush head
upper:0 lower:0
I_linear actuator
Brush head
switch squeegee
upper:1 lower:0
I_linear actuator
squeegee 0,0A
temp lift module
clean. unit:23°C
temp. accessory
module:28°C
I_blower, sweep:
switch sweep unit:
upper:1 lower:0
I_linear actuator
sweepunit:0,1A
temp. liftmodule
clean.unit: 32°C
Service Manual 08.2007
>10s
1
TR:0
1 -1
1
0,0A
0,0A
Basic settings and service procedures
-Keep I-button Key function
depressed
and switch on key switch (SO)
Display
self-diagnosis
no
Self-test
o.k.?
yes
Main relay (K1)
switched on
Display
TESTER MODE ?
no
yes
Display
Activate module
parameter setup
Display
TESTER-MODE
drives
Display
TESTER-MODE
linear actuators
Display
TESTER-MODE
adjustment
Note:
To quit test mode, switch off the key switch (S0).
SETUP MENÜ
(see chapter 5.3.2)
TEST MODE
Drive units
(see chapter 5.2.2)
TEST MODE
Lifting motors
(see chapter 5.2.3)
TEST MODE
calibration
(see chapter 5.2.4)
Page 87 / 171
