BR/BD 100/250 R BP / RI
5.1.5.2

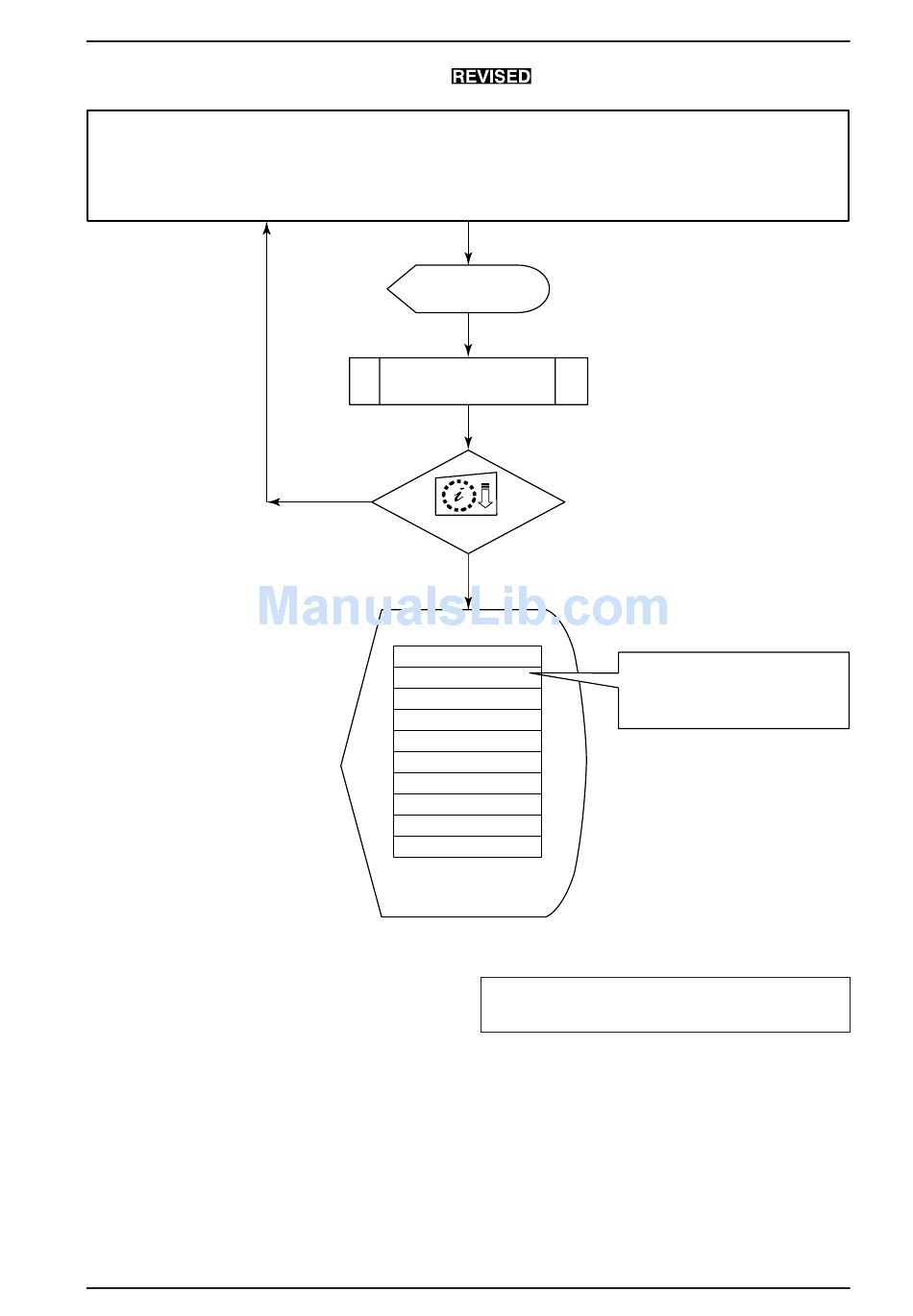

Illuminated symbol test

Requirements
– Unit is ready for service in test mode
– Program switch (S9) in Pos 5 Polish
– Above the rotary function I-button, the Illuminated symbol test display is active
Service Manual 08.2007
Basic settings and service procedures
Display
Illuminated symbol
test
All LEDs flash
in 1 sec rhythm
no
Press conti-
nuousiv
yes
Display
Illuminated symbol test
WDB
Illuminated symbol test
Pre-sweep active
Illuminated symbol test
Service mode
IIlluminated symbol test
Chemicals tank empty
Illuminated symbol test
Filter cleaning
Illuminated symbol test
Parking brake
Illuminated symbol test
Flat battery
Illuminated symbol test
Error/warning
Illuminated symbol test
Dirty water tank full
Illuminated symbol test
Brush overload
Parallel to the display the
corresponding LED is also active
for approx 2 sec
Note:
- Switch off the key switch (S0) to quit test mode
Automatic scrolling through the
display. At the last position the
cursor jumps back to the 1st
posi-tion (cycle)
