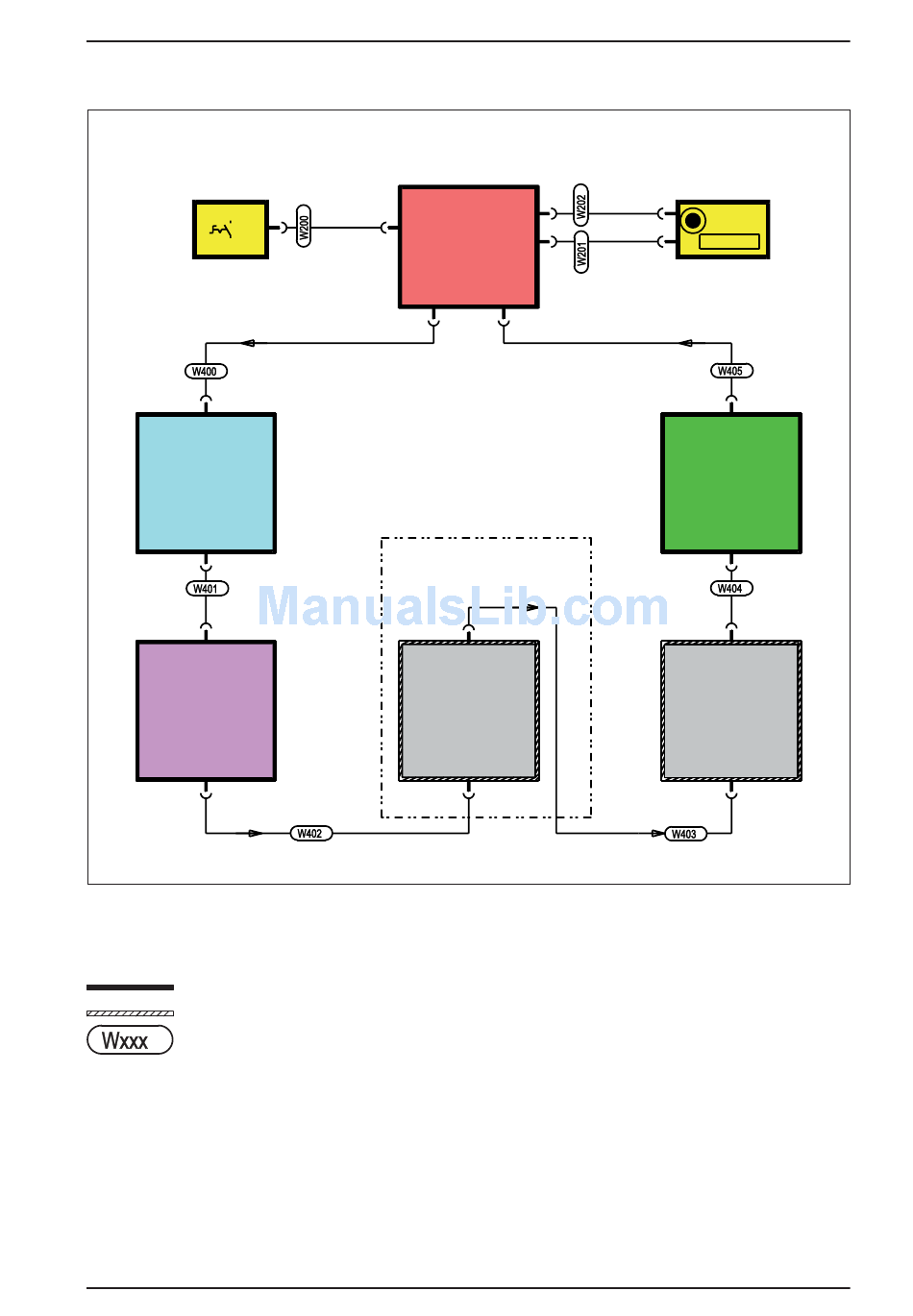

Modular system BR/BD 100/250 R with side brush (optional)

S9
A2
X7/IN
FAHRMODUL
TRACTION-MODULE
MODULE DE MOTEUR
X8/OUT
A4
X3/IN
HUBMODUL
LIFTING-MODULE
MODULE DE MOTEUR
DE COURSE
X2/OUT
Kärcher bus with RS 485 communication core
Basic unit
Accessories
Kärcher bus cable 1:1, (6-pin, with
integrated RS 485 bus system)
Service Manual 08.2007
A1
KOPF-CPU
MASTER-MODULE
CPU-MODULE
X4/OUT
X3/IN
ZUBEHÖR-SEITENBESEN
ACCESSORIES-SIDE BROOM
ACCESSOIRES-GENET A
BALAIS DE COTE
A4/1
X2/OUT
HUBMODUL
LIFTING-MODULE
MODULE DE MOTEUR
DE COURSE
X3/IN
Modular Electronic Control Circuits
A0
A3
CLEANMODUL
CLEANING-MODULE
MODULE DE
NETTOYAGE
A5
ZUBEHÖRMODUL
ACCESSORY-MODULE
MODULE
D´ ACCESSOIRES
X2/OUT
X1/IN
X3/OUT
X2/IN
