Brush Head - Kärcher BR 100 R Service Manual

BR/BD 100/250 R BP / RI

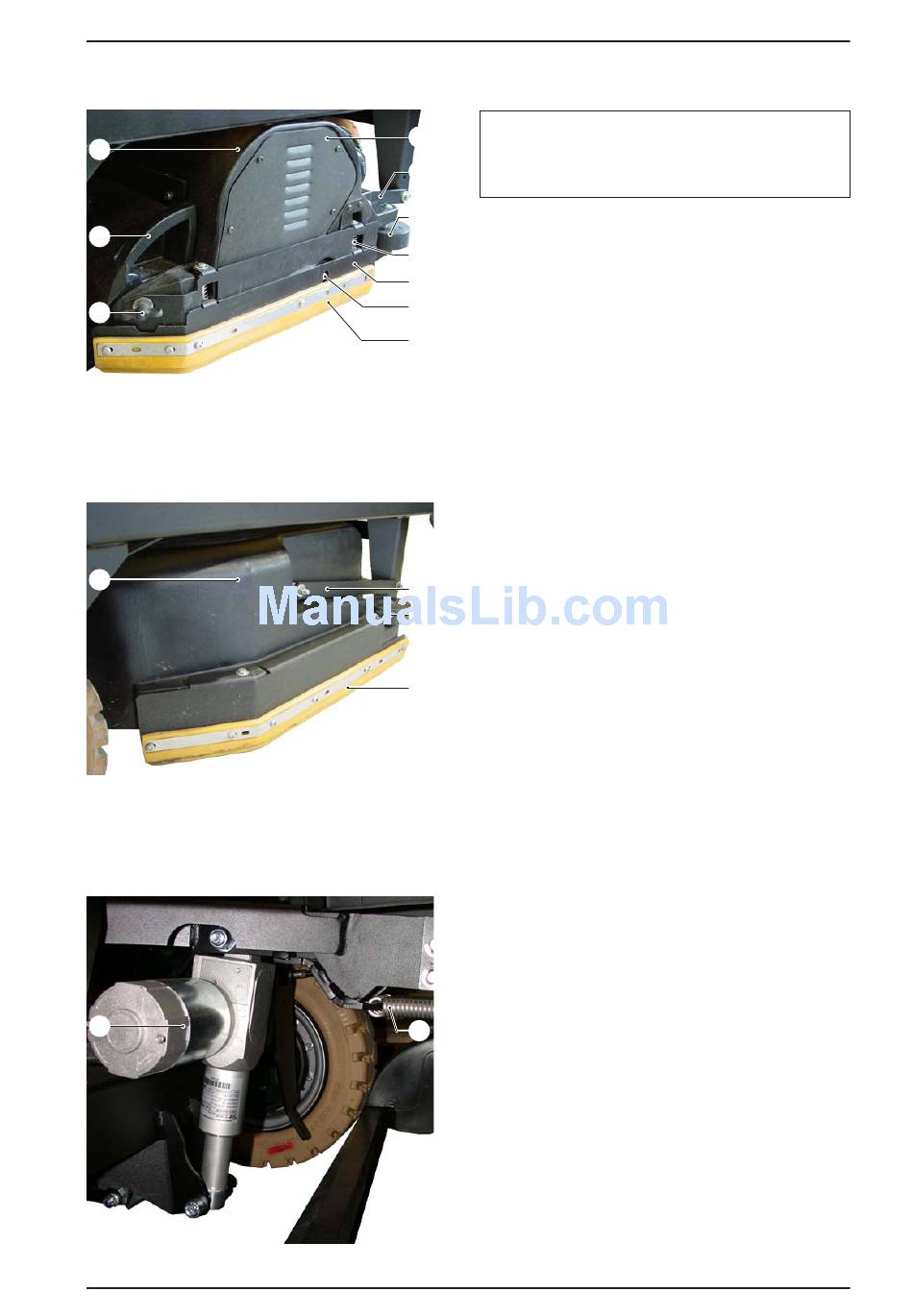

2.2 Brush head

10
9
8
Brush head (BR version)
13
Brush head (BD version)
15
Lifting motor, brush head
Service Manual 08.2007
Note:
1
The springs (14) protect and relieve the lifting
2
motor (15) of the brush head.
3
4
5
6
7
11
3
12
1 Brush drive assembly cover plate
2 Brush head support bracket (BR version)
3 Deflection roller
4 Spring for mounting plate with sealing strip
5 Mounting plate for sealing strip, with
spring pressure
14
6 Adjusting screw, brush pattern
7 Side sealing strip (BR version)
8 Rear wing screw, fastening
9 Coarse dirt container (BR version)
10 Brush head (BR version)
11 Brush head support bracket (BD version)
12 Side sealing strip (BD version)
13 Brush head (BD version)
14 Spring (4x), brush head
15 Lifting motor - brush head (M20)
Technical features
Page 13 / 171
