BR/BD 100/250 R BP / RI
5.4.8

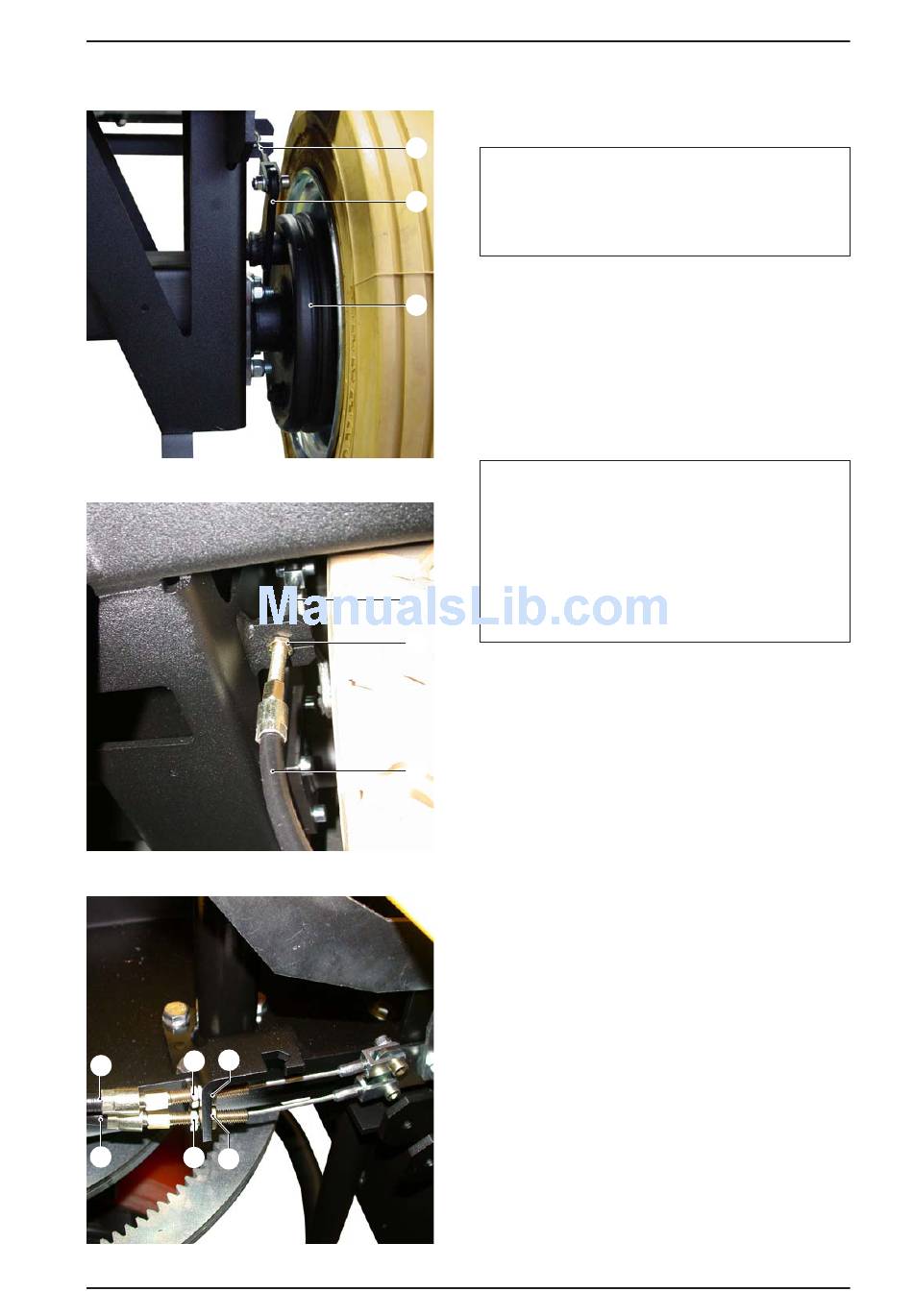

Rear wheel brake

Rear wheel brake
Bowden cable of the left rear wheel brake
6
7
5
8 7
6
Bowden cable of the rear wheel brake at the brake
pedal
Service Manual 08.2007
Basic settings and service procedures
Adjust the rear wheel brake
1
Note:
The wheels must brake uniformly and
2
symmetrically when the foot brake is
pressed.
The rear wheel brakes can be adjusted separa-
3 tely on both sides if necessary.
– Loosen lock nuts (6).
– Use the adjusting nuts (7) to tighten or loosen
the Bowden cable.
– Tighten the lock nuts (6) again.
– Check the brake.
Note:
The brake must securely hold the device
with a max. load at a grade of 15%. If the
brake effect diminishes despite an accurate
setting of the distances, the brake pads must
be checked/replaced and the function of the
1
brake must be checked.
4
5
1 Brake cable
2 Brake lever (drum brake)
3 Rear wheel brake (drum brake)
4 Lock nut
5 Bowden cable to left drum brake
6 Lock nut
7 Adjusting nut
8 Bowden cable to right drum brake
Page 115 / 171
