Technical features

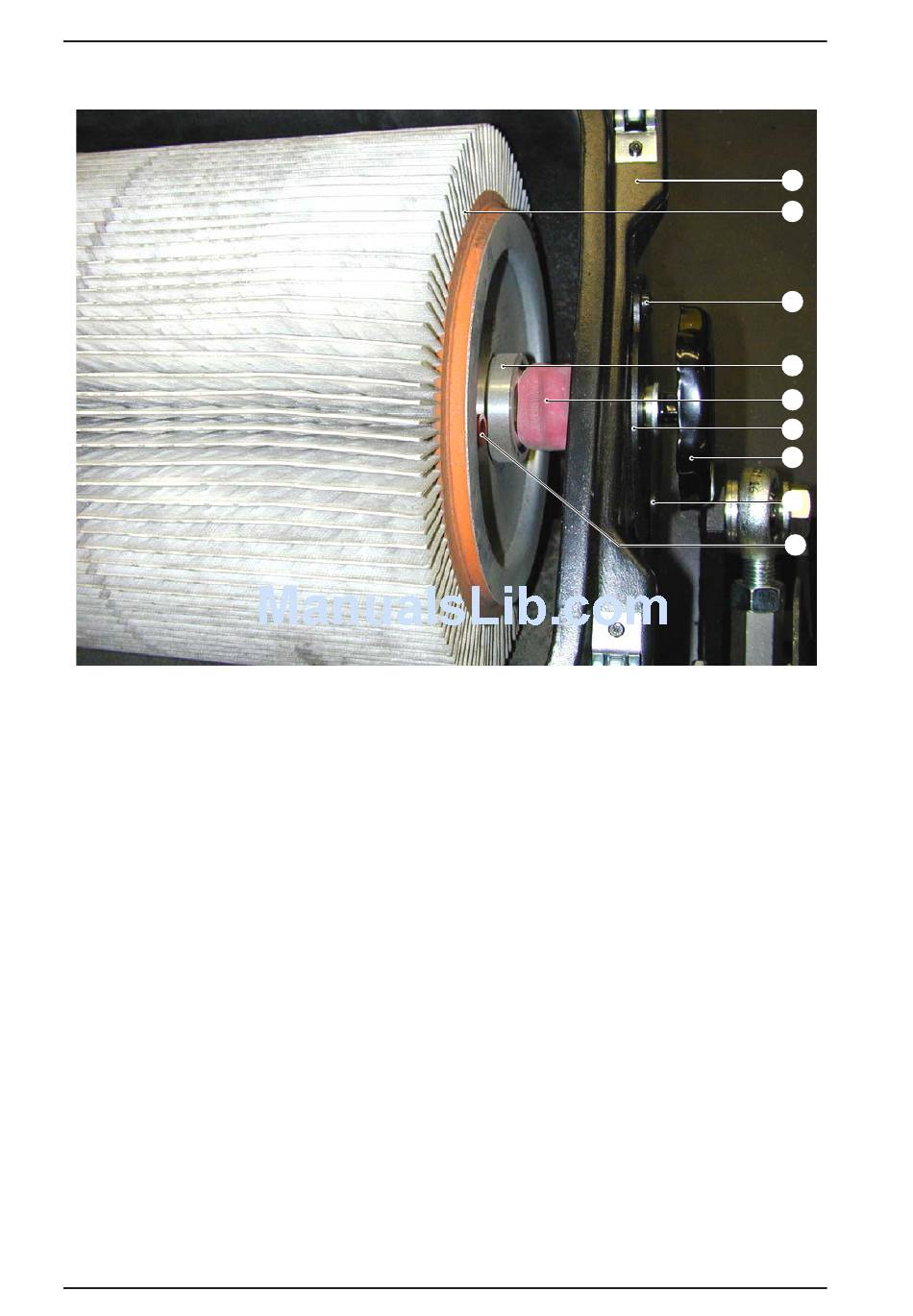

2.13 Pre-sweeper unit, round filter with retainer
1 Filter case
2 Round filter
3 Retaining screws (2x), retainer plate
4 Ball bearing
5 Rubber grommet, dust guard
6 Retainer plate
7 Handwheel, filter locking system
8 Rubber plug (2), round filter
Page 36 / 171
BR/BD 100/250 R BP / RI
If the round filter is blocked it must be removed
from the filter case.
– Loosen retaining screws (3).
– Turn the retainer plate (6) slightly in an anti-
clockwise direction.
– Pull on the handwheel (7) until the retainer has
been pulled out of the round filter.
– The round filter (2) can be removed.
Service Manual 08.2007
1
2
3
4
5
6
7
3
8
