BR/BD 100/250 R BP / RI

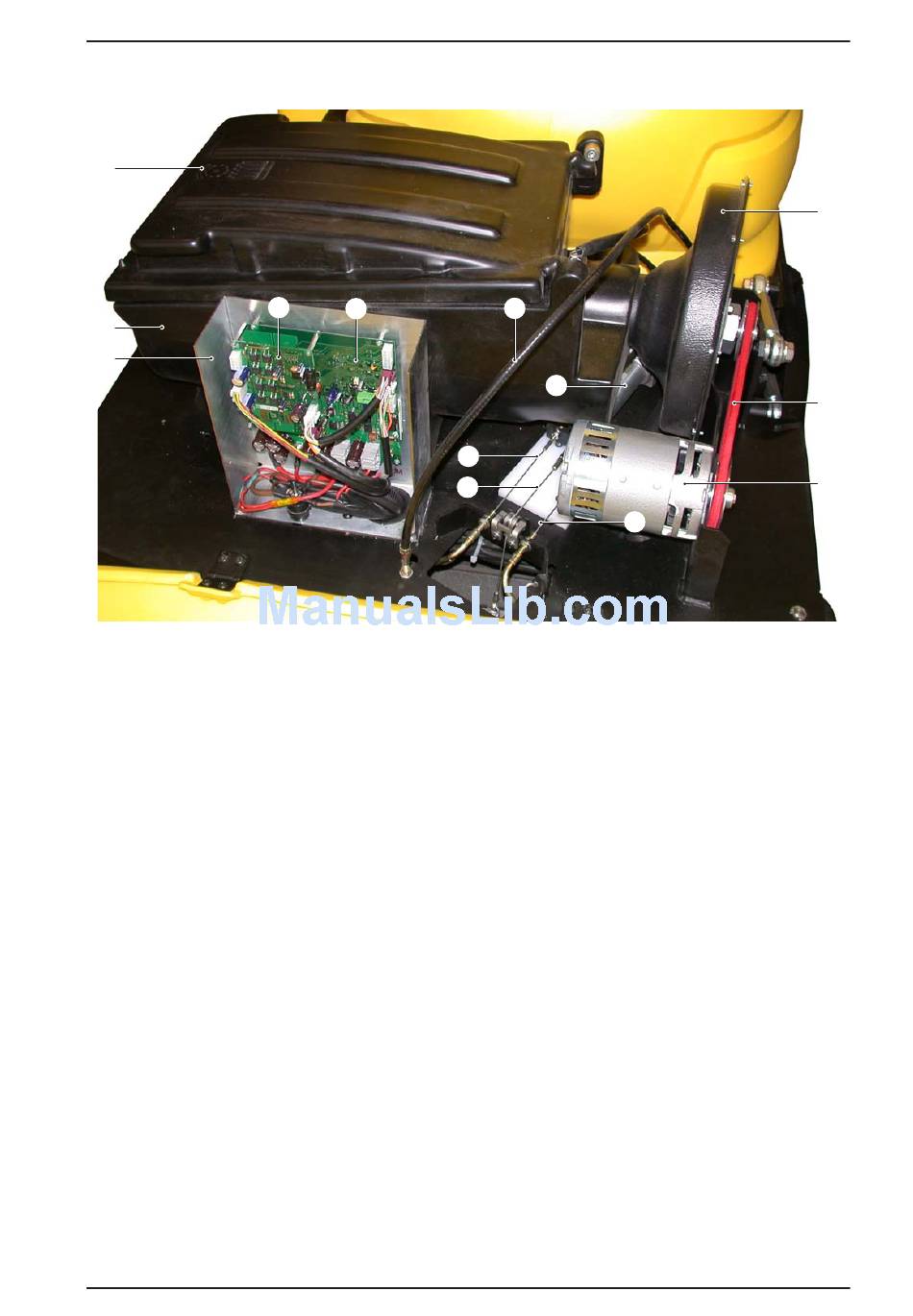

2.13 Pre-sweeper unit, housing cover open
12
11
10
1 Impeller fan housing
2 Drive belt, fan
3 Fan motor (M13)
4 Bowden cables raise/lower main brush
5 Bowden cables raise/lower side brush
6 Lifting motor, main brush and side brush
7 Bowden cable, course-dirt flap
8 Printed circuit board (A4/1), lifting module
9 Printed circuit board (A3/1), cleaning
module
10 Electrical box
11 Bottom part of filter case
12 Top part of filter case
Service Manual 08.2007
9
8
7
6
4
5
4
Technical features
1
2
3
Page 33 / 171
