BR/BD 100/250 R BP / RI
2.10

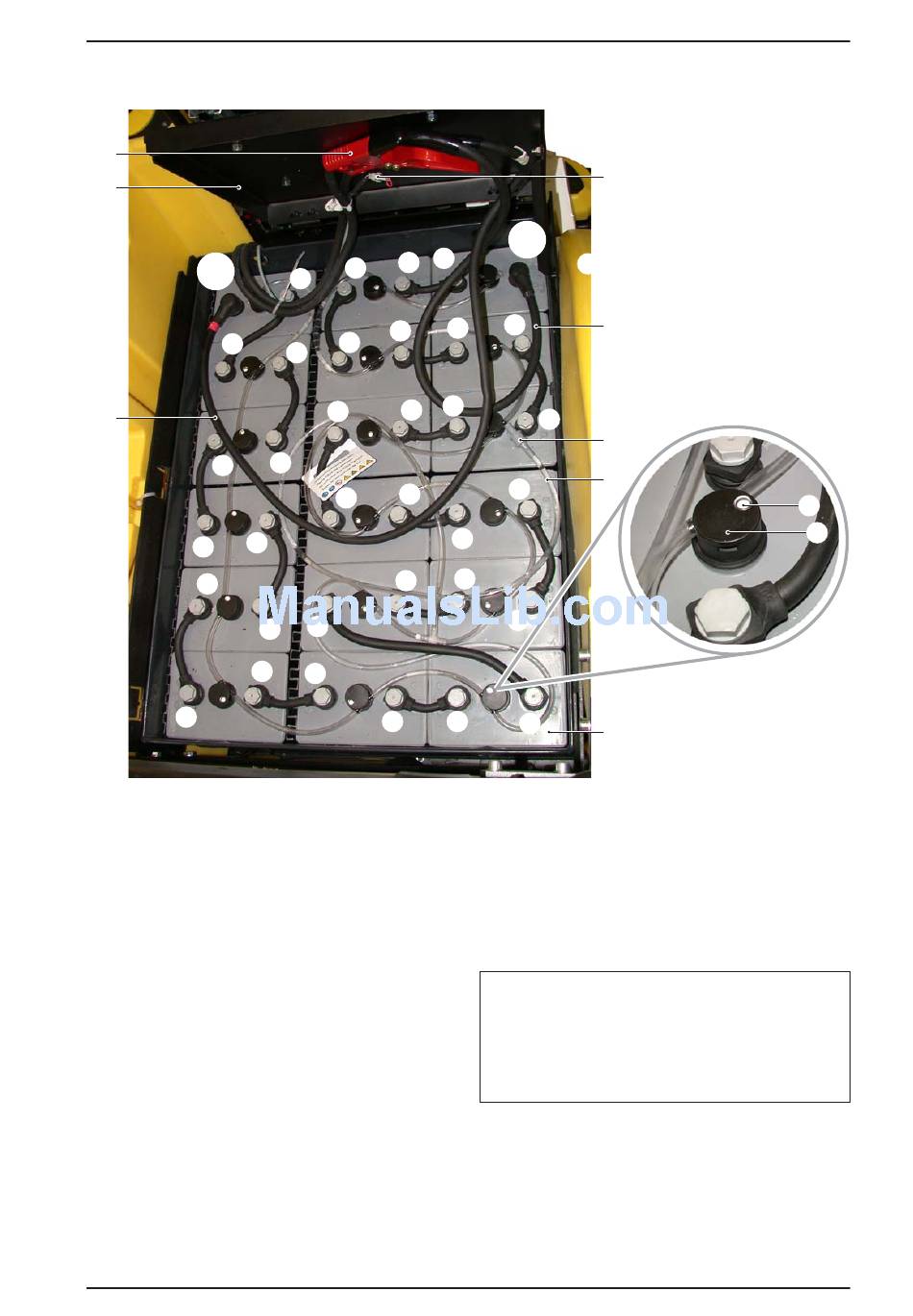

Battery (low-maintenance) with filling system

10
9
+
+
8
–
–
+
–
–
+
1 Connection cable, seat sensor (S10)
2 Connection cable with battery (–)
3 Connector, filling hose
4 Filling hose
5 Level indicator, filling valve
6 Filling valve (18x)
7 Battery (G1) (6.654-136), low
maintenance
8 Connection cable with battery (+)
9 Seat, folded up
10 Central plug (X1)
Service Manual 08.2007
–
+
–
+
–
–
–
+
+
+
–
–
+
+
+
–
–
+
–
+
–
+
–
+
–
+
–
+
–
All the unit's electrical components are connec-
ted with the block battery (6.654-136) through
the central plug (10). If the upper section of the
central plug (10) is pulled out the whole unit is
isolated. The electromagnetic brake (Y1) is ac-
tivated.
Note:
An external battery charger is connected to
the upper section of the central plug (10).
Only use distilled water to refill the battery.
Technical features
1
2
3
4
7
Page 23 / 171
5
6
