Technical features

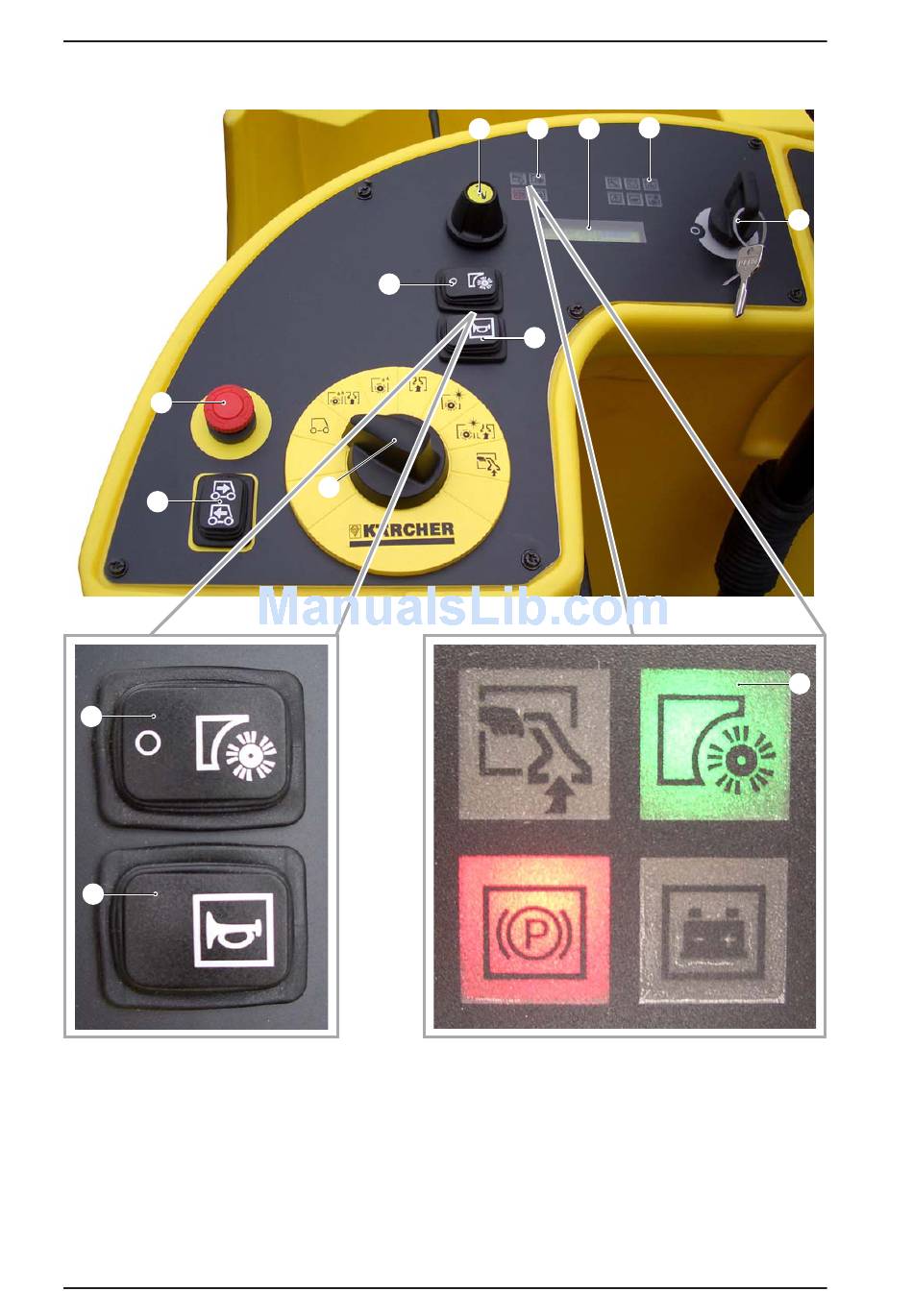

2.13 Pre-sweeper unit, control panel
9
10
6
7
1 Key switch (S0)
2 Filter shaker indicator lamp ON/OFF
3 Display, Warning- and information module
(A0)
4 Indicator lamp, Pre-sweeper ON/OFF
5 Information button, rotary and keying
function
Page 32 / 171
5
6
8
6 Switch, pre-sweeper unit (S6)
7 Push button, horn (S3)
8 Program switch (S9)
9 EMERGENCY-STOP push button (S1)
10 Direction of travel changeover switch
(S2)
BR/BD 100/250 R BP / RI
2
4 3
7
Service Manual 08.2007
1
4
