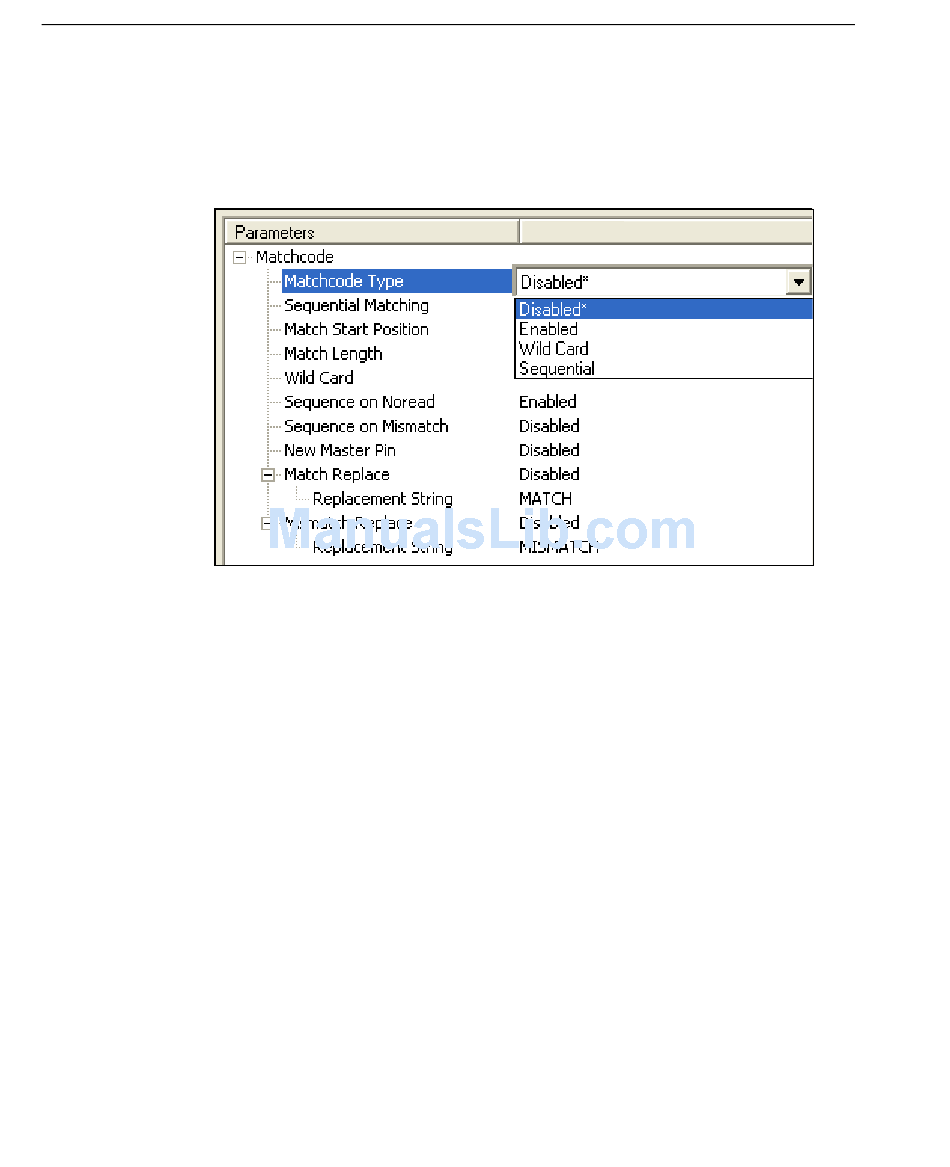

Matchcode Type
Matchcode Type
Definition:
Allows the user to choose the way that master symbols will be compared
with subsequently read symbols.
Note: First set Triggering Mode to External or Serial.
ESP:
Serial Cmd:
<K223,matchcode
match length,wild card character,sequence on No Read,sequence on
mismatch>
Default:
Disabled
Options:
0 = Disabled
2 = Wild Card
Disabled:
Has no effect on operations.
Enabled:
Instructs the Imager to compare symbols or portions of symbols with the
master symbol.
Wild Card:
Allows the user to enter user-defined wild card characters in the master
symbol.
Sequential:
Instructs the Imager to sequence after each match (numeric only) and
compare symbols or portions of symbols for sequential numbers.
Note: If Matchcode Type is set to Sequential, the Imager will behave
as if Number of Symbols were set to 1, regardless of the user-defined
configuration.
9-4
type,sequential matching,match start position,
1 = Enabled
3 = Sequential
MS-4 Imager User's Manual
