Serial Verification

Allows the user to verify configuration command status.
Serial Command Echo Status
Usage: This command is useful in removing any doubt about the Imager's interpretation
of any configuration command.
For example, if the current preamble is "SOM" and <K701,1,START> is
entered, the Imager will echo back <K701,SOM> since the attempted
entry "START" exceeds the four character limit for that command.
Therefore, it is rejected and the existing "SOM" message is echoed back
and remains the preamble message.
Definition: When enabled, a configuration command
received from the host is echoed back to the
host with the resultant settings.
Function: If a command with multiple fields is processed, some of the fields may
have been processed properly while others were not. The changes will
appear in the string echoed back so that the user will know which fields
did or did not change.
Serial Cmd: <K701,serial command echo
control/hex output>
Default: Disabled
Options: 0 = Disabled
Serial Command Beep Status
Usage: Used to audibly verify the acceptance and validity of a command.
Definition: Causes the Imager to beep once whenever a K command is entered to
indicate that the command was accepted and processed.
Function: If an invalid command is entered, the Imager beeps 5 times to indicate an
invalid entry. However, this does not necessarily mean that all data fields
have been entered incorrectly. Only one bad field needs to be found in
order to activate the 5 beep response.
Serial Cmd: <K701,serial command echo
control/hex output>
Default: Disabled
Options: 0 = Disabled
MS-4 Imager User's Manual
status,serial command beep status,
1 = Enabled
status,serial command beep
1 = Enabled
I/O Parameters

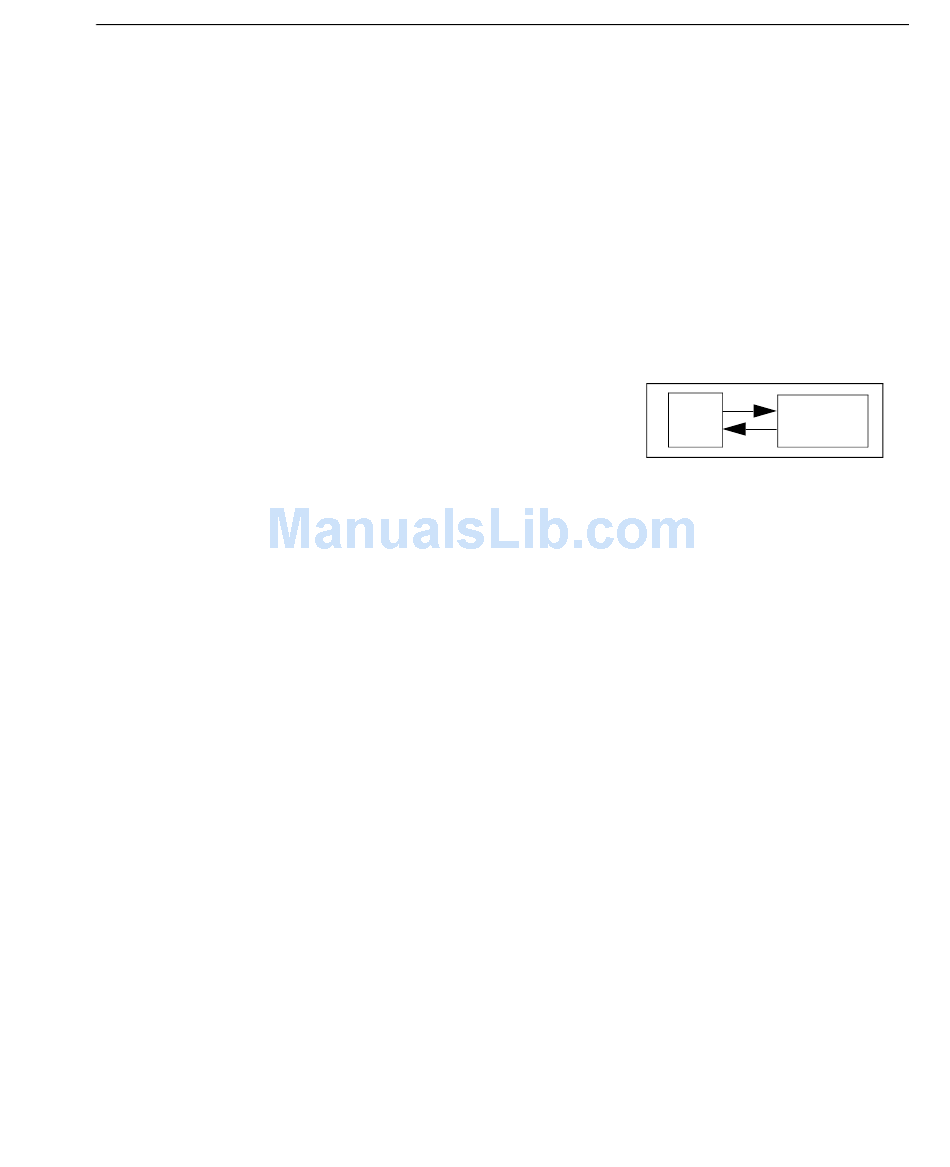

Host Imager
