Auxiliary Port Connections
Full Duplex Mode
Usage:
When communication to and from the auxiliary port is required.
Definition:
In Full Duplex Mode all auxiliary port data and symbol data is sent directly
to the host. Symbol data is not displayed on the auxiliary port menu.

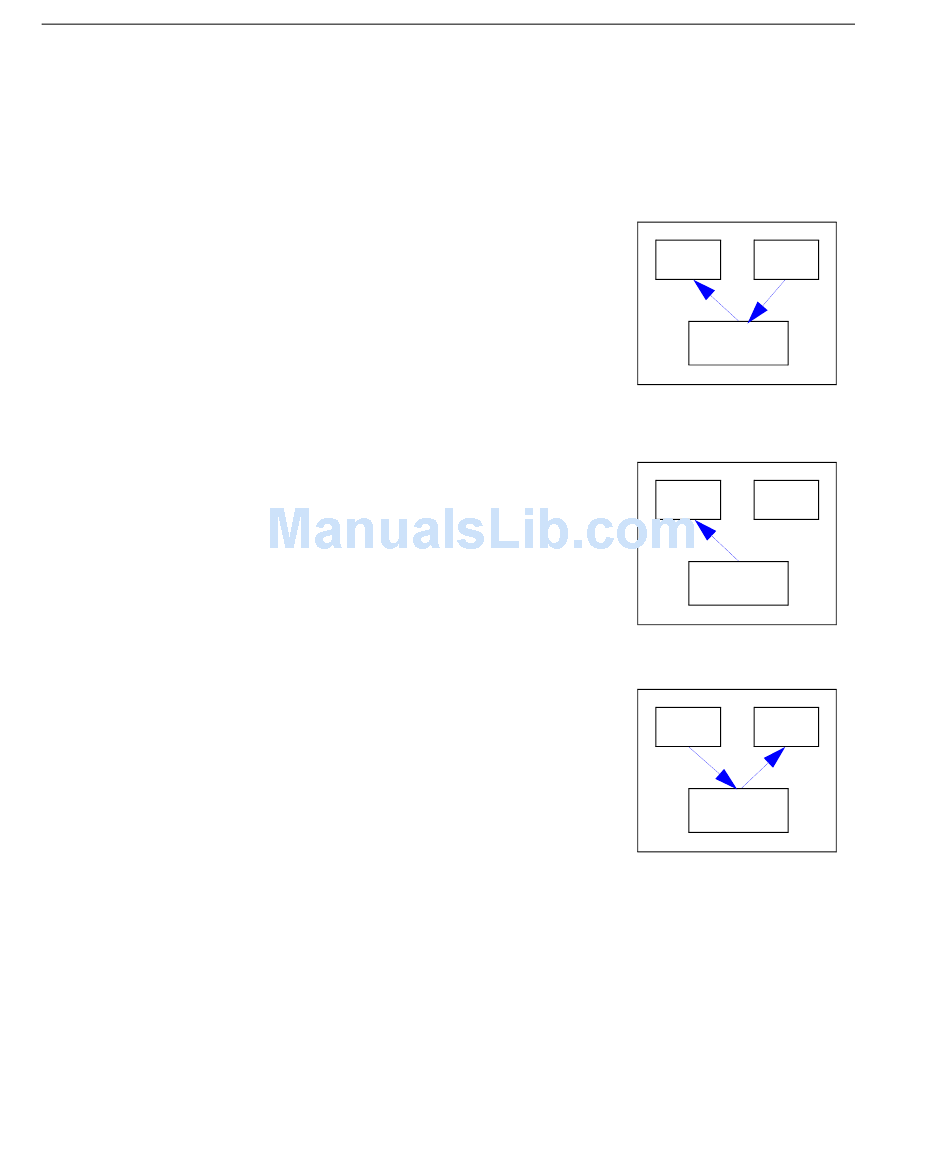

Data Originating from the Auxiliary Port
• Auxiliary port data to the host is ignored if the
Imager is in a polled mode.
• Auxiliary port data or read data is sent to the
host whenever it is received.
• Auxiliary port data is not echoed.
• Auxiliary port data to the host is always sent
without a preamble or postamble.
Data Originating from the Imager
• Data is not sent to the auxiliary port.
Data Originating from the Host
• All host data is echoed to the auxiliary port in
unpolled mode.
Serial Cmd:
<K101,aux port
status,daisy chain i.d.>
Options:
3 = Full Duplex
3-14
mode,baud rate,parity,stop bits,data bits,daisy chain i.d.
Aux.
Host
Port
Imager
Aux.
Host
Port
Imager
Aux.
Host
Port
Imager
MS-4 Imager User's Manual
