Window of Interest
Window of Interest by Serial Command
The exact size and position of the WOI within
the image area can be defined numerically in
terms of pixels.

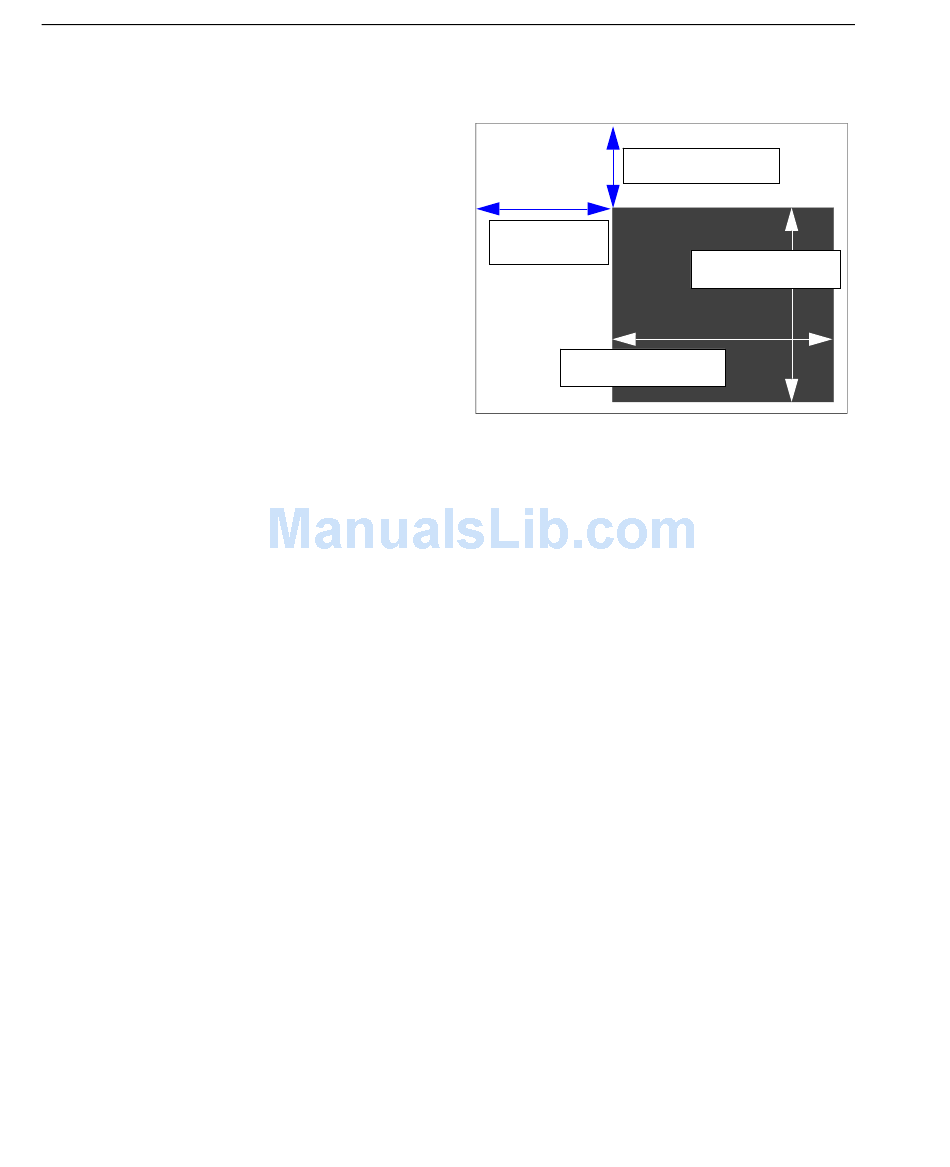

The figure to the right shows where to locate
the start position of the row and column pointers
and how to measure the column depth and
row width dimensions.
Top (Row Pointer)
Definition: Defines the row position of the upper-left starting point of the window.
Serial Cmd: <K516,row
Default: 0
Options: 0 to 480
Left (Column Pointer)
Definition: Defines the column position of the upper-left starting point of the window.
Serial Cmd: <K516,row
Default: 0
Options: 0 to 640
Height (Row Depth)
Definition: Defines the size, in rows, of the window. Maximum value is defined as
the maximum row size of the image sensor minus the Top value.
Serial Cmd: <K516,row pointer,column
Default: 0
Options: 3 to (480 - row pointer)
Width (Column Width)
Definition: Defines the column position of the upper-left starting point of the window.
Serial Cmd: <K516,row pointer,column pointer,row
Default: 0
Options: 8 to (640 - column pointer)
10-12
pointer,column pointer,row depth,column width>
pointer,column pointer,row depth,column width>
pointer,row
WOI Row Pointer
WOI Column
Pointer
WOI Column Width
depth,column width>
depth,column
MS-4 Imager User's Manual
WOI Row Depth
width>
