Microscan LVS-9510 Operation Manual

Lvs-95 series. barcode quality station
Hide thumbs Also See for LVS-9510:
Table of Contents

Advertisement

Quick Links

®
LVS
95XX Series Barcode Quality
Station Operations Manual
English
P/N 84-9310001-02 Rev A
M-95XX-4.0.0-A-En-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVS-9510 and is the answer not in the manual?

Questions and answers

Related Manuals for Microscan LVS-9510

Summary of Contents for Microscan LVS-9510

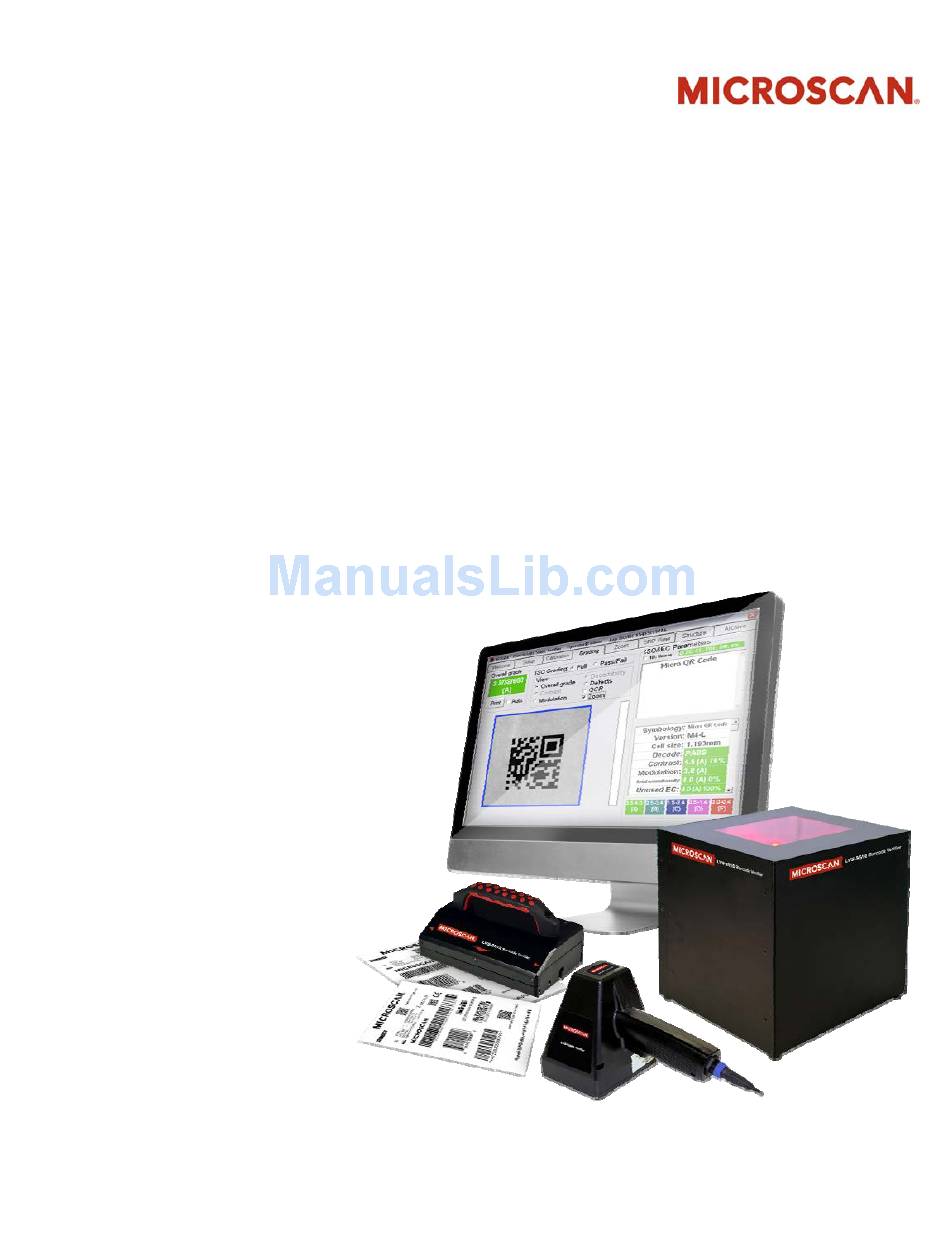

  • Page 1 ® 95XX Series Barcode Quality Station Operations Manual English P/N 84-9310001-02 Rev A M-95XX-4.0.0-A-En-0...
