Matchcode Type

Matchcode Type
Allows the user to choose the way that master symbols will be compared
with subsequently read symbols.
Definition:
Note: First set Triggering Mode to External or Serial.

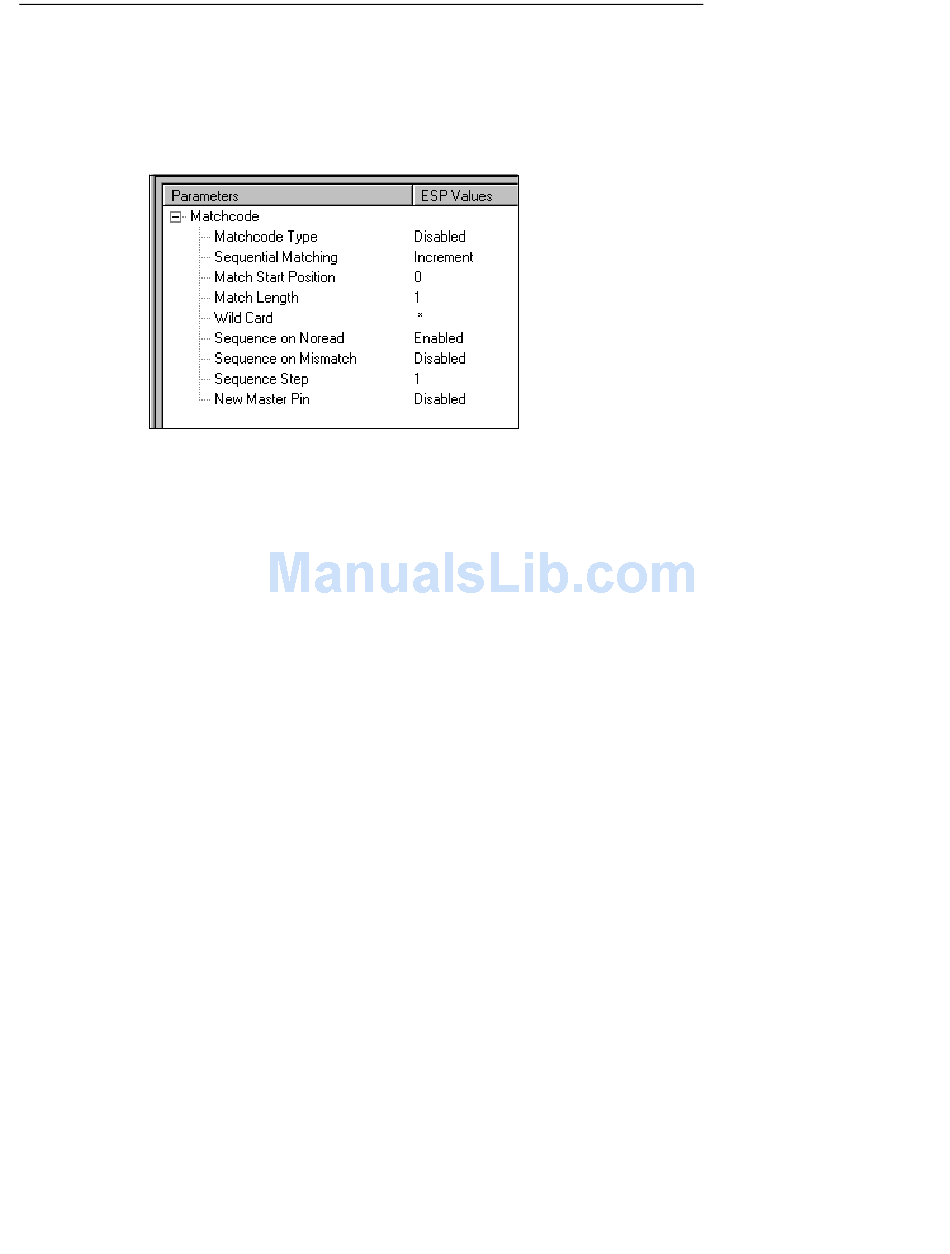

ESP:
<K223,matchcode
Serial Cmd:
match length,wild card character,sequence on noread,sequence on mismatch>
Default: Disabled
0 = Disabled
Options:
2 = Sequential
Disabled: Has no effect on operations.
Instructs the reader to compare symbols or portions of symbols with the
Enabled:
master symbol.
Instructs the reader to sequence after each match (numeric only) and
compare symbols or portions of symbols for sequential numbers.
Sequential:
Note: If Matchcode Type is set to Sequential, Number of Symbols will
default back to 1 (if set to any number greater than 1).
Allows the user to enter user defined wild card characters in the master
Wild Card:
symbol.
7-4
type,sequential matching,match start position,
1 = Enabled
3 = Wild Card
Quadrus EZ Reader User's Manual
