Dynamic Setup

Dynamic Setup

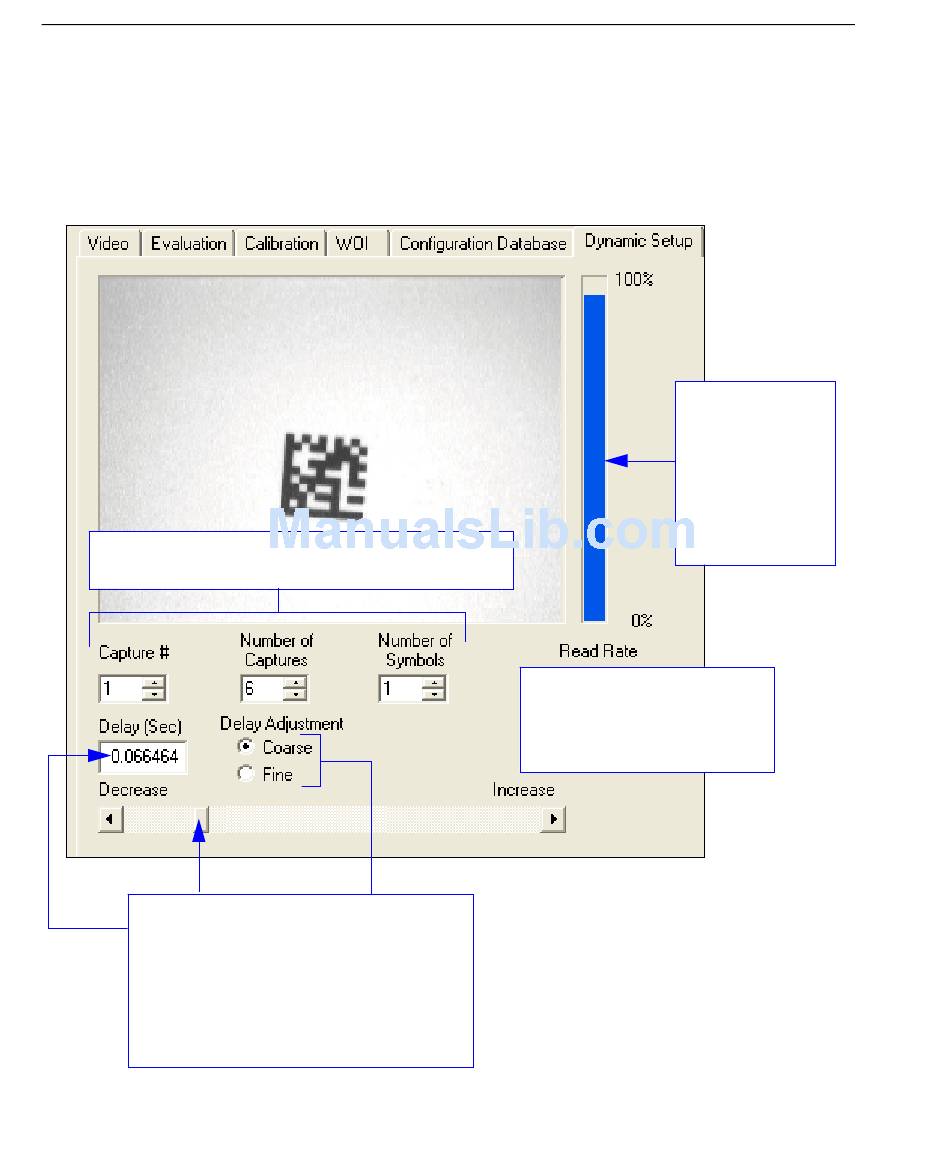

Dynamic Setup is used to calculate image capture timing during a read cycle. Without proper
timing, the Imager will not be able to decode all symbols in a read cycle. An external trigger is
used to activate image captures so the user can make timing adjustments as capture events
occur.
The user can control Capture #, Number of Captures,
and Number of Symbols using these spin boxes.
The Delay Adjustment slider allows the
user extremely precise control of the time
delays between image captures in a read
cycle. Delay values are shown in seconds
in the field above the slider. The Coarse
and Fine Delay Adjustment options
determine whether larger or smaller
adjustment increments will be used.
10-14
Read Rate is
represented
graphically in
real-time as the
user makes
adjustments to
the time delay
between image
captures.
The user can control Capture
#, Number of Captures, and
Number of Symbols using
these controls.
