Using ESP

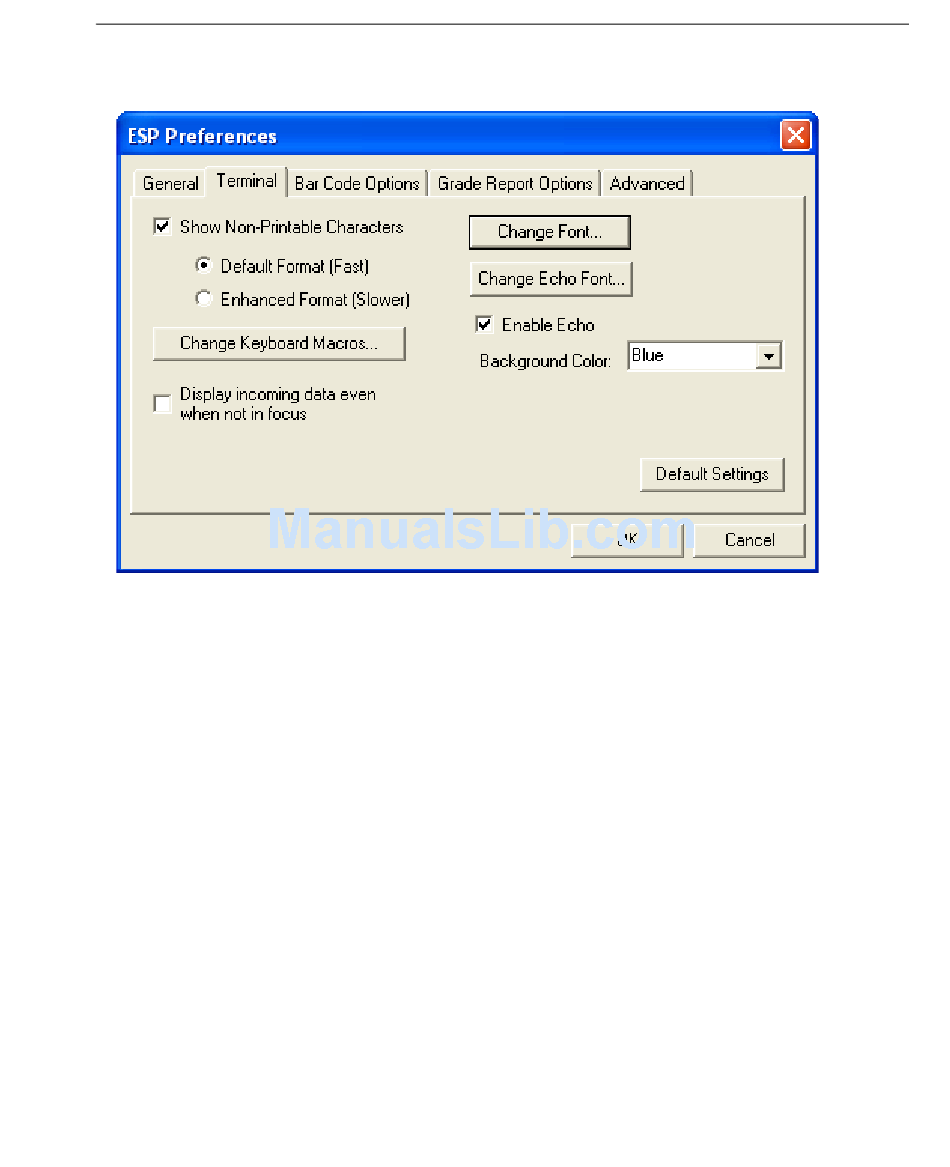

Terminal Tab
When Show Non-Printable Characters is checked, characters such as "CRLF" will be
displayed in the Terminal window. When Enhanced Format is checked, the characters
are displayed with more detailed formatting.
Change Keyboard Macros
In this dialog you can first select the function key and then enter your macro keystrokes in the
associated key map. For example, to make Ctrl-F5 the keystroke to enable, send a trigger
character, select F5, and then in the Ctrl row, enter <trigger character> and click OK. Then
whenever the Ctrl-F5 keystroke is pressed, the trigger character will start the read cycle.
Change Font
Allows you to modify the font used for decode data received from the Imager on the Terminal
screen.
Change Echo Font
Allows you to modify the font used for command characters typed into the Terminal view.
Toolbar Style
Displays user-selected toolbar buttons as icons, text only, or both (default).
