Configure the Imager in ESP
Step 10 — Configure the Imager in ESP

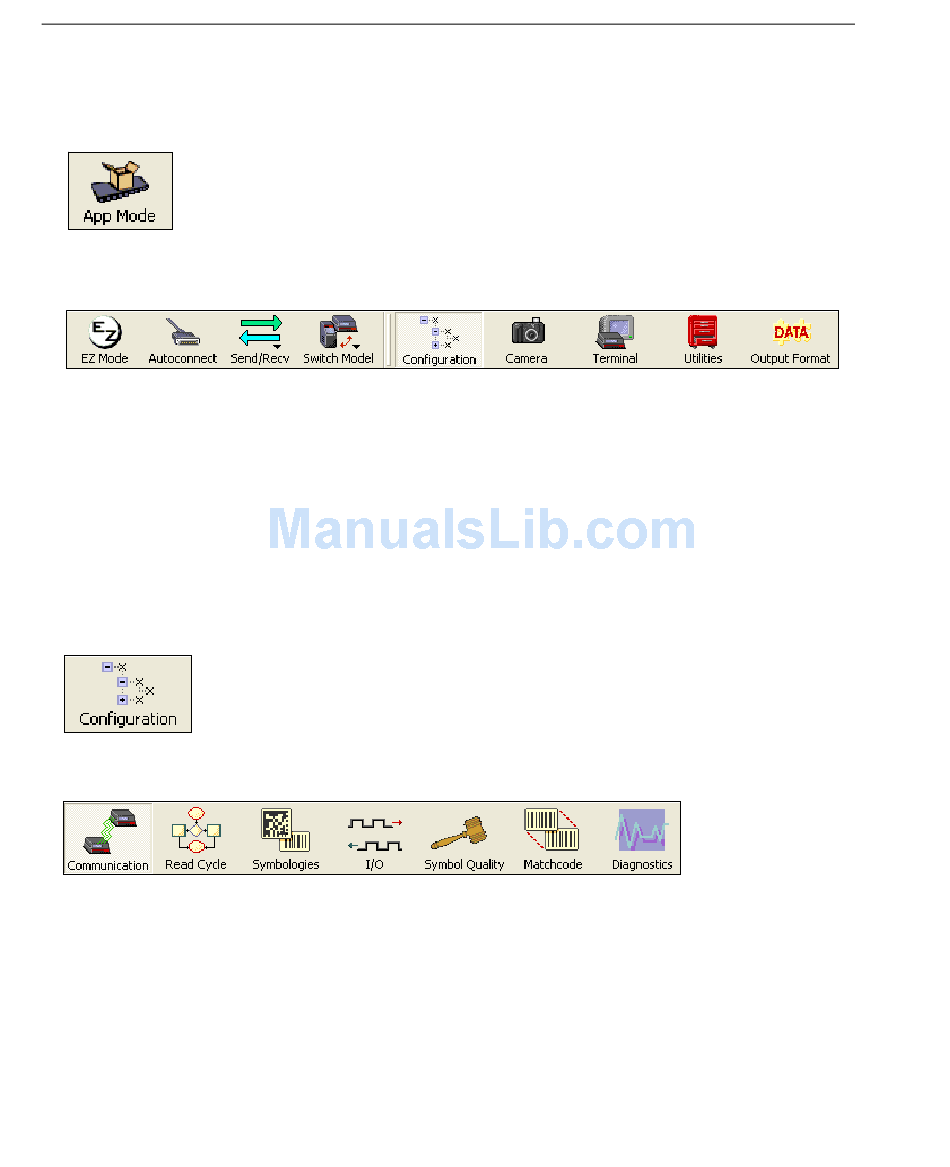

To make setup changes to the MS-4, click the App Mode button.
The following modes are accessible by clicking the buttons in the first row of App Mode
icons:
• Establish communications between ESP and the Imager by clicking the Autoconnect button.
• Send or receive commands by clicking the Send/Recv button.
• Make changes to Camera options by clicking the Camera button.
• Access the Terminal window, where you can see symbol data and enter serial commands,
by clicking the Terminal button.
• Review status settings or make changes to operational commands by clicking the Utilities
button.
• Format data for output by clicking the Output Format button.
Click the Configuration button to display the second row of ESP icons.
From here you can make changes in the configuration trees that can be accessed by clicking
the buttons on the second row of icons in the ESP window.
For further details, see ESP Help in the pulldown Help menu.
