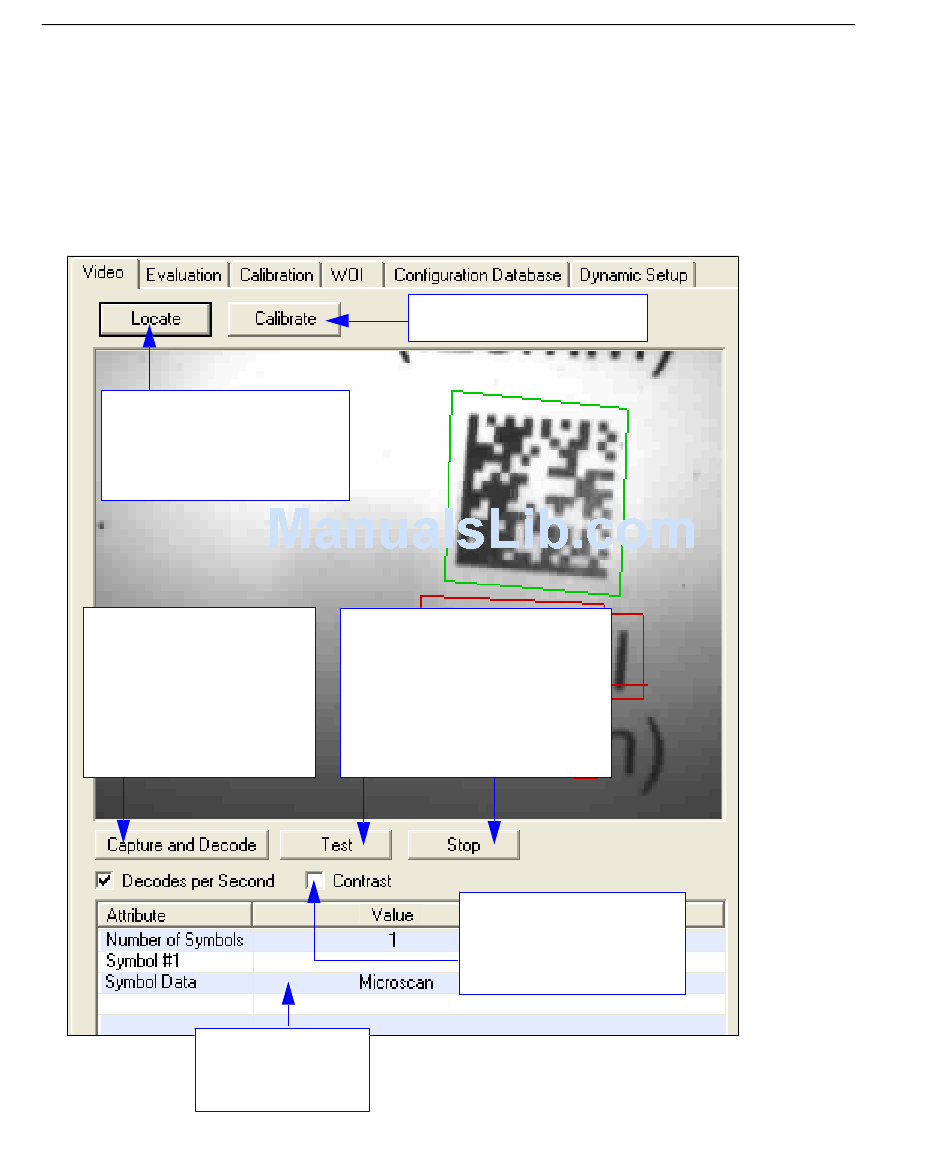

The Video view is similar to the EZ Mode interface, in that the user has the ability to perform
the same Locate, Calibrate, and Test routines. There is also a focal distance adjustment
tool to the right of the video view.
Video also features Capture and Decode functionality, which is similar to the Configuration
interfaces (Communication, Read Cycle, Symbologies, I/O, Matchcode, and Diagnostics).
Activates the Imager's target
pattern and initiates live
video display of the symbol
in the field of view.
Allows the user to take an
image capture of the
symbol in the field of view
at any time, and to
decode the symbol data.
Similar to the Capture
and Decode function in
the Configuration views.
Symbol data and
Test results are
shown in this field.
10-4
Initiates Calibration routine.
Initiates the Test routine.
Allows the user to test the
Imager's read rate and
decodes per second, and also
displays decoded symbol data
in the field at the bottom of the
screen, Click Stop to end the
Test routine.
When enabled, shows the
symbol in higher contrast
than the default contrast
value.
