Definition:
Determines how the image dimension parameters will be implemented.
Serial Cmd: <K256,switch mode,frame count/time,image process
Default:
0
Options:
0 = Window of Interest

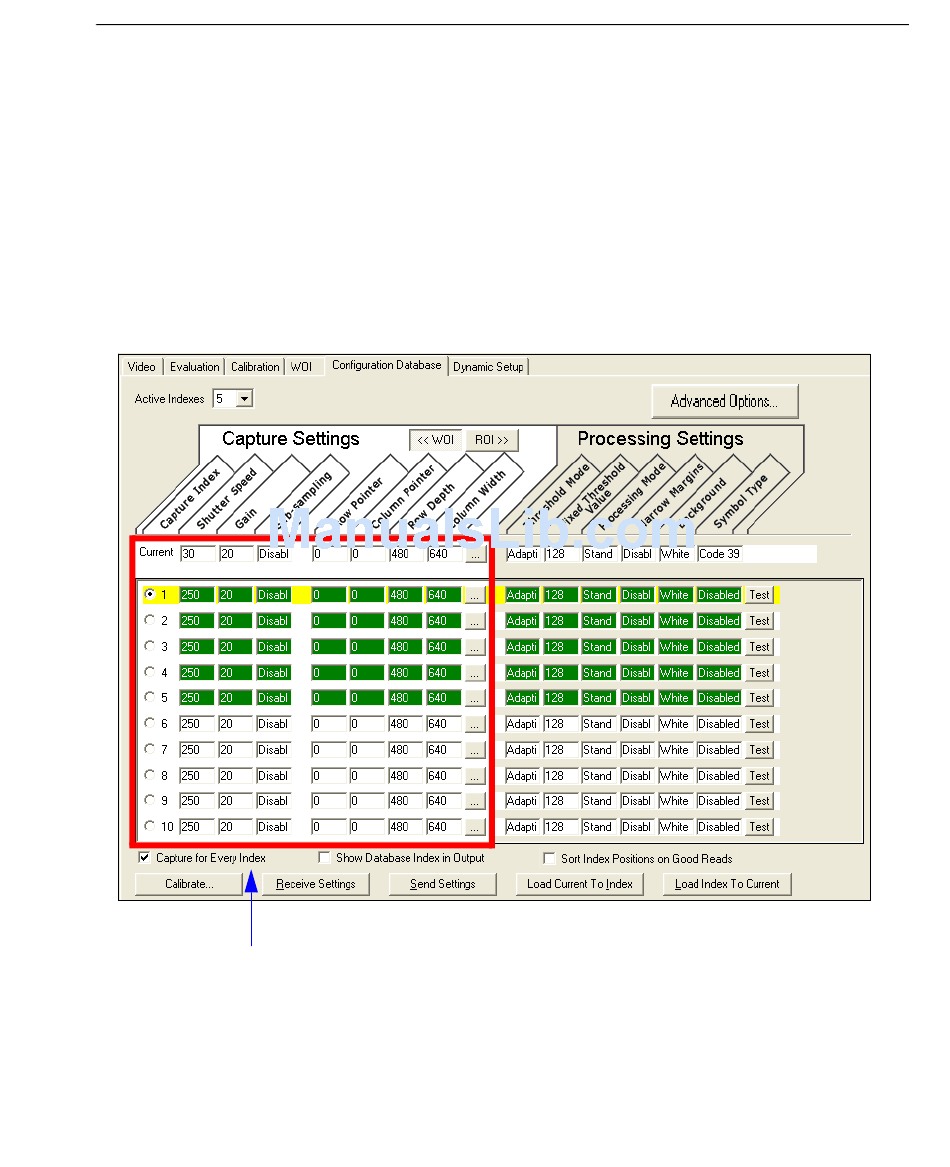

Window of Interest (WOI) by ESP
When Image Dimensions is set to Window of Interest, the database image dimension
parameters are camera settings, and they determine the size of the image to be captured.
Camera settings (Capture Index, Shutter Speed, Gain, Sub-Sampling) located in
the left half of the highlighted area.
Image capture dimensions (Row Pointer, Column Pointer, Row Depth, Column
Width) located in the right half of the highlighted area.
MS-4 Imager User's Manual
1 = Region of Interest
Configuration Database
looping,image
dimensions>
11-11
