Configuration and Start-Up

User Manual
5 Configuration and Start-Up
This chapter provides descriptions about the configuration and start-up of the ILX69-
PBM.
ILX69-PBM Configuration and Parameterization Steps:
The configuration and parameterization of the ILX69-PBM is carried out in three steps:
Configuration of the module in a CompactLogix™ project using the Studio 5000 or
1
RSLogix 5000 programming tool.
2 Parameterization and configuration of the ILX69-PBM with the ProSoft fdt
Configuration Manager configuration software.
3 Creating the data objects and the ladder diagram in Studio 5000/RSLogix 5000.
5.1

CompactLogix Project

This section covers the configuration of the ILX69-PBM in a CompactLogix™ system.

5.1.1 Creating a New Project

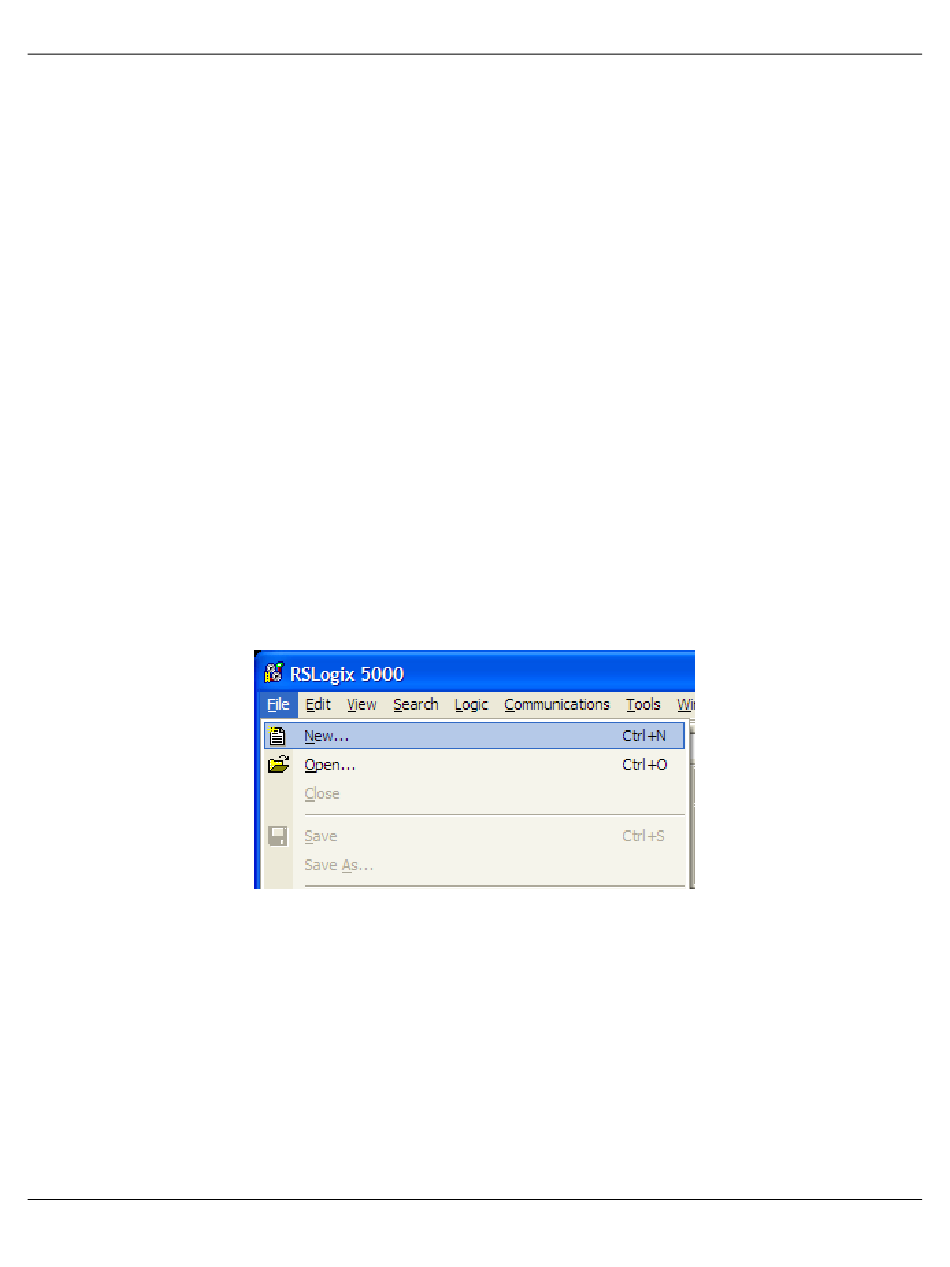

1 Open the F
