User Interface
Operations

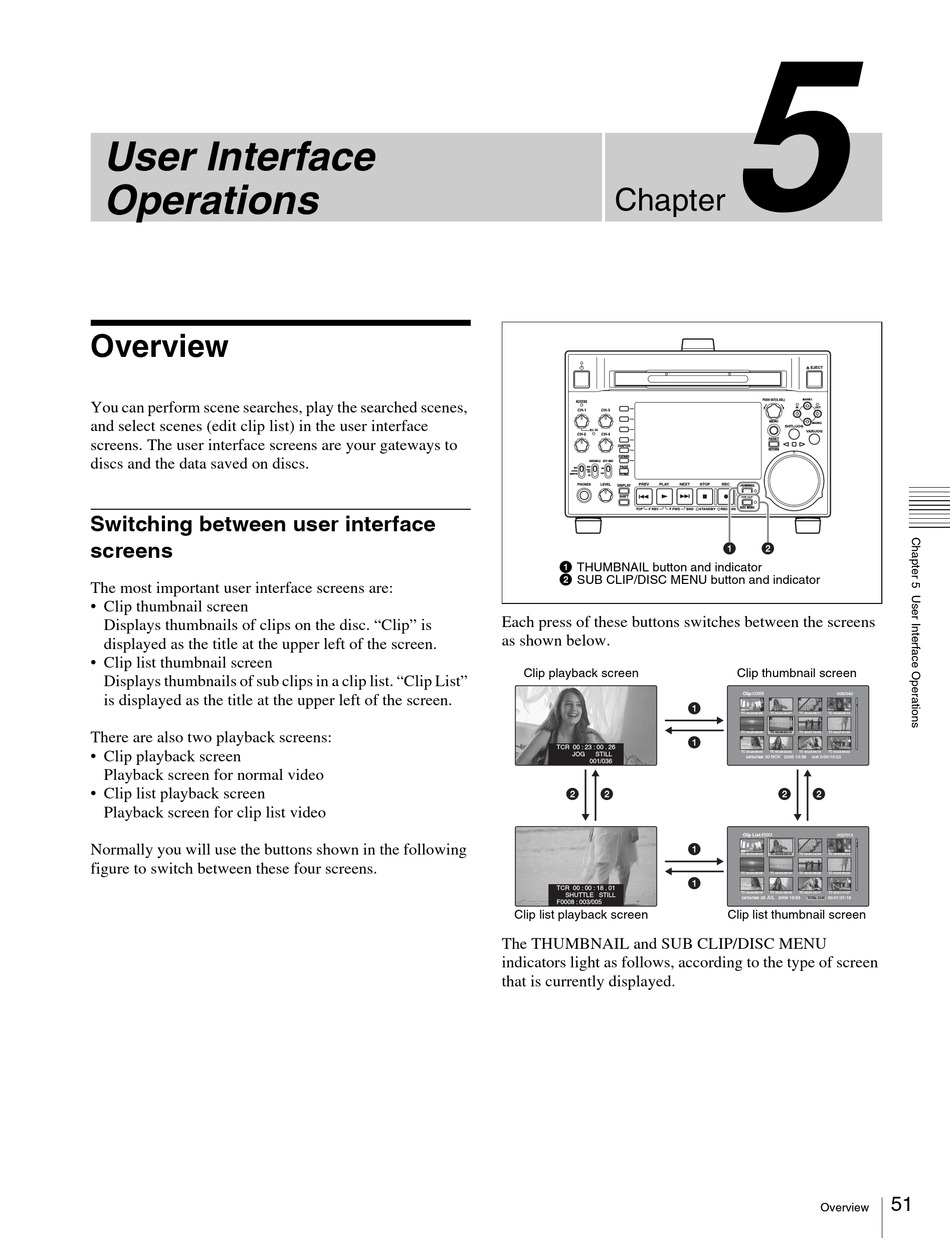

Overview

You can perform scene searches, play the searched scenes,
and select scenes (edit clip list) in the user interface
screens. The user interface screens are your gateways to
discs and the data saved on discs.
Switching between user interface
screens
The most important user interface screens are:
• Clip thumbnail screen
Displays thumbnails of clips on the disc. "Clip" is
displayed as the title at the upper left of the screen.
• Clip list thumbnail screen
Displays thumbnails of sub clips in a clip list. "Clip List"
is displayed as the title at the upper left of the screen.
There are also two playback screens:
• Clip playback screen
Playback screen for normal video
• Clip list playback screen
Playback screen for clip list video
Normally you will use the buttons shown in the following
figure to switch between these four screens.
Chapter
ACCESS
CH-1 CH-3
ALL CH
CH-2 CH-4
CHAPTER
EXPAND
VARIABLE KEY INHI
REC PAGE
NET ON
PRE-
LOCAL
SET
OFF
REMOTE
PB HOME
PHONES LEVEL PREV PLAY NEXT
DISPLAY
SHIFT
TOP F REV F FWD
1 THUMBNAIL button and indicator
2 SUB CLIP/DISC MENU button and indicator
Each press of these buttons switches between the screens
as shown below.
Clip playback screen
TCR 00 : 23 : 00 . 26
JOG STILL
001/036
2 2
TCR 00 : 00 : 18 . 01
SHUTTLE STILL
F0008 : 003/005
Clip list playback screen
The THUMBNAIL and SUB CLIP/DISC MENU
indicators light as follows, according to the type of screen
that is currently displayed.
5
EJECT
MARK1
PUSH SET(S.SEL)
IN OUT
MENU
MARK2
SHTL/JOG
VAR/JOG
RESET
RETURN
STOP REC
THUMBNAIL
SUB CLIP
DISC MENU
END STANDBY REC INHI
1 2
Clip thumbnail screen
Clip:C0006 006/040
1
TC 00:23:00:25 TC 00:23:40:07 TC 00:24:45:11 TC 00:25:06:14
TC 00:25:49:23 TC 00:26:22:10 TC 00:27:19:04 TC 00:27:51:09
1
TC 00:28:06:09 TC 00:28:22:02 TC 00:23:34:18 TC 00:23:54:22
30 NOV 2005 13:38 0:00:10:23
DATE&TIME DUR
2 2
Clip List:E0001 002/013
1
TC 00:00:00:00 TC 00:00:04:14 TC 00:00:12:04 TC 00:00:20:13
TC 00:00:28:08 TC 00:00:35:15 TC 00:00:46:08 TC 00:00:53:22
1
TC 00:00:59:16 TC 00:01:06:18 TC 00:01:13:11 TC 00:01:17:27
28 JUL 2006 19:55 00:01:31:16
DATE&TIME TOTAL DUR
Clip list thumbnail screen
Overview
