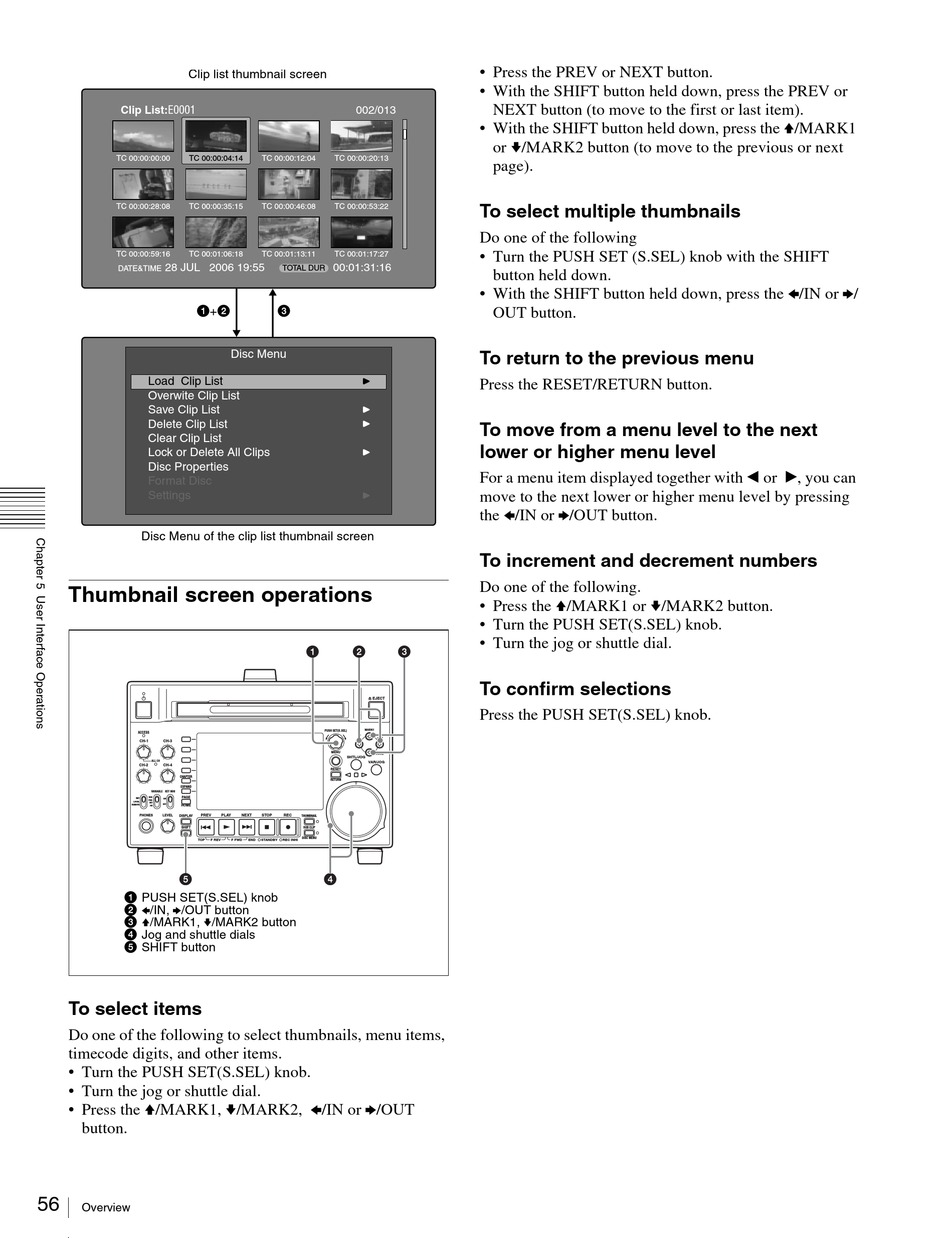

Clip list thumbnail screen
Clip List:E0001
TC 00:00:00:00 TC 00:00:04:14
TC 00:00:28:08 TC 00:00:35:15
TC 00:00:59:16 TC 00:01:06:18
28 JUL 2006 19:55
DATE&TIME
1+2
Load Clip List
Overwite Clip List
Save Clip List
Delete Clip List
Clear Clip List
Lock or Delete All Clips
Disc Properties
Format Disc
Settings
Disc Menu of the clip list thumbnail screen

Thumbnail screen operations

ACCESS
CH-1 CH-3
ALL CH
CH-2 CH-4
CHAPTER
EXPAND
VARIABLE KEY INHI
PAGE
NET REC
ON
PRE-
LOCAL
SET
OFF
REMOTE HOME
PB
PHONES LEVEL PREV
DISPLAY
SHIFT
TOP F REV
5
1 PUSH SET(S.SEL) knob
2 B/IN, b/OUT button
3 V/MARK1, v/MARK2 button
4 Jog and shuttle dials
5 SHIFT button
To select items
Do one of the following to select thumbnails, menu items,
timecode digits, and other items.
• Turn the PUSH SET(S.SEL) knob.
• Turn the jog or shuttle dial.
• Press the V/MARK1, v/MARK2, B/IN or b/OUT
button.
56
Overview
002/013
TC 00:00:12:04 TC 00:00:20:13
TC 00:00:46:08 TC 00:00:53:22
TC 00:01:13:11 TC 00:01:17:27
00:01:31:16
TOTAL DUR
3
Disc Menu
1 2 3
EJECT
MARK1
PUSH SET(S.SEL)
IN OUT
MENU
MARK2
SHTL/JOG
VAR/JOG
RESET
RETURN
PLAY NEXT STOP REC
THUMBNAIL
SUB CLIP
DISC MENU
F FWD END STANDBY REC INHI
4
• Press the PREV or NEXT button.
• With the SHIFT button held down, press the PREV or
NEXT button (to move to the first or last item).
• With the SHIFT button held down, press the V/MARK1
or v/MARK2 button (to move to the previous or next
page).
To select multiple thumbnails
Do one of the following
• Turn the PUSH SET (S.SEL) knob with the SHIFT
button held down.
• With the SHIFT button held down, press the B/IN or b/
OUT button.
To return to the previous menu
Press the RESET/RETURN button.
To move from a menu level to the next
lower or higher menu level
For a menu item displayed together with b or B, you can
move to the next lower or higher menu level by pressing
the B/IN or b/OUT button.
To increment and decrement numbers
Do one of the following.
• Press the V/MARK1 or v/MARK2 button.
• Turn the PUSH SET(S.SEL) knob.
• Turn the jog or shuttle dial.
To confirm selections
Press the PUSH SET(S.SEL) knob.
