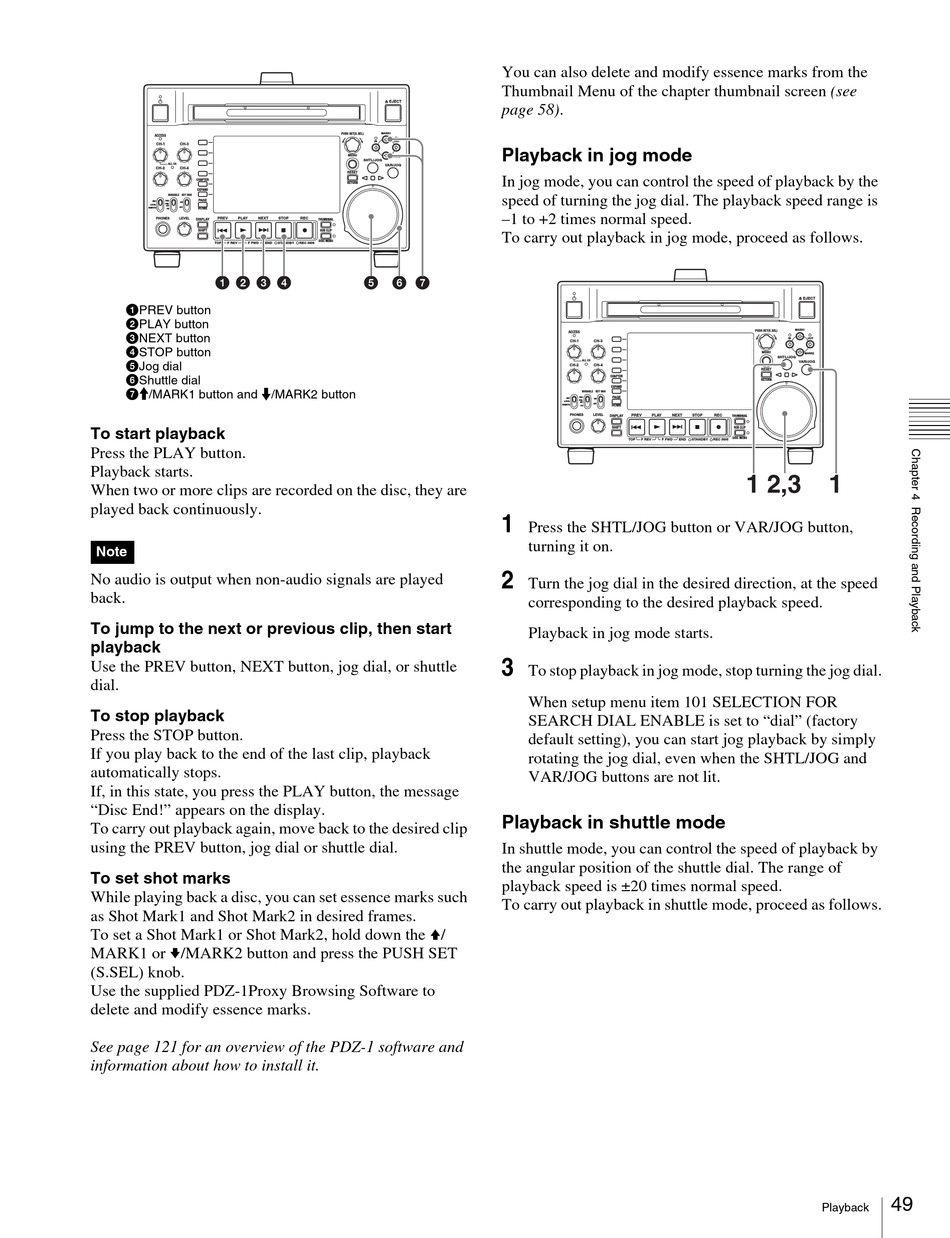

Sony PDW-HD1500 Operation Manual page 49

ACCESS
CH-1 CH-3
ALL CH
CH-2 CH-4
CHAPTER
EXPAND
VARIABLE KEY INHI
REC PAGE
NET
ON
PRE-
LOCAL
SET
OFF
REMOTE HOME
PB
PHONES LEVEL PREV PLAY NEXT
DISPLAY
SHIFT
TOP F REV F FWD END
1 2 3 4
1PREV button
2PLAY button
3NEXT button
4STOP button
5Jog dial
6Shuttle dial
7M/MARK1 button and m/MARK2 button
To start playback
Press the PLAY button.
Playback starts.
When two or more clips are recorded on the disc, they are
played back continuously.
Note
No audio is output when non-audio signals are played
back.
To jump to the next or previous clip, then start
playback
Use the PREV button, NEXT button, jog dial, or shuttle
dial.
To stop playback
Press the STOP button.
If you play back to the end of the last clip, playback
automatically stops.
If, in this state, you press the PLAY button, the message
"Disc End!" appears on the display.
To carry out playback again, move back to the desired clip
using the PREV button, jog dial or shuttle dial.
To set shot marks
While playing back a disc, you can set essence marks such
as Shot Mark1 and Shot Mark2 in desired frames.
To set a Shot Mark1 or Shot Mark2, hold down the V/
MARK1 or v/MARK2 button and press the PUSH SET
(S.SEL) knob.
Use the supplied PDZ-1Proxy Browsing Software to
delete and modify essence marks.
See page 121 for an overview of the PDZ-1 software and
information about how to install it.
EJECT
PUSH SET(S.SEL) MARK1
IN OUT
MENU
MARK2
SHTL/JOG
VAR/JOG
RESET
RETURN
STOP REC
THUMBNAIL
SUB CLIP
DISC MENU
STANDBY REC INHI
5 6 7
You can also delete and modify essence marks from the
Thumbnail Menu of the chapter thumbnail screen (see
page 58).
Playback in jog mode
In jog mode, you can control the speed of playback by the
speed of turning the jog dial. The playback speed range is
–1 to +2 times normal speed.
To carry out playback in jog mode, proceed as follows.
ACCESS
CH-1 CH-3
ALL CH
CH-2 CH-4
CHAPTER
EXPAND
VARIABLE KEY INHI
REC PAGE
NET
ON
PRE-
LOCAL
SET
OFF
REMOTE HOME
PB
PREV PLAY NEXT
PHONES LEVEL
DISPLAY
SHIFT
TOP F REV F FWD END
1
Press the SHTL/JOG button or VAR/JOG button,
turning it on.
2
Turn the jog dial in the desired direction, at the speed
corresponding to the desired playback speed.
Playback in jog mode starts.
3
To stop playback in jog mode, stop turning the jog dial.
When setup menu item 101 SELECTION FOR
SEARCH DIAL ENABLE is set to "dial" (factory
default setting), you can start jog playback by simply
rotating the jog dial, even when the SHTL/JOG and
VAR/JOG buttons are not lit.
Playback in shuttle mode
In shuttle mode, you can control the speed of playback by
the angular position of the shuttle dial. The range of
playback speed is ±20 times normal speed.
To carry out playback in shuttle mode, proceed as follows.
EJECT
PUSH SET(S.SEL) MARK1
IN OUT
MENU
MARK2
SHTL/JOG
VAR/JOG
RESET
RETURN
STOP REC
THUMBNAIL
SUB CLIP
DISC MENU
STANDBY REC INHI
1 2,3 1
Playback
49
