a V/MARK1 button and v/MARK2 button
When the THUMBNAIL indicator (see page 17) is lit, you
can use these for thumbnail selection.
The V/MARK1 and v/MARK2 buttons can be pressed
with the PUSH SET (S.SEL) knob held down to record a
shot mark 1 or shot mark 2 as an essence mark.
Use the supplied PDZ-1Proxy Browsing Software to
delete and modify essence marks.
Essence marks can also be deleted and modified from the
Thumbnail Menu of the chapter thumbnail screen (see
page 53).
b IN indicator and OUT indicator
IN indicator: When an IN point is set, this lights. If an
attempt is made to set the IN point after a recorded
OUT point, this flashes.
OUT indicator: When an OUT point is set, this lights. If
an attempt is made to set the OUT point before a
recorded IN point, this flashes.
c B/IN button and b/OUT button
When the THUMBNAIL indicator (see page 17) is lit, you
can use these for thumbnail selection.
An In or Out point is set when you press the PUSH SET
(S.SEL) knob with the B/IN or b/OUT button held down.
The In or Out point setting is deleted when you press the
RESET/RETURN button with the B/IN or b/OUT button
held down.

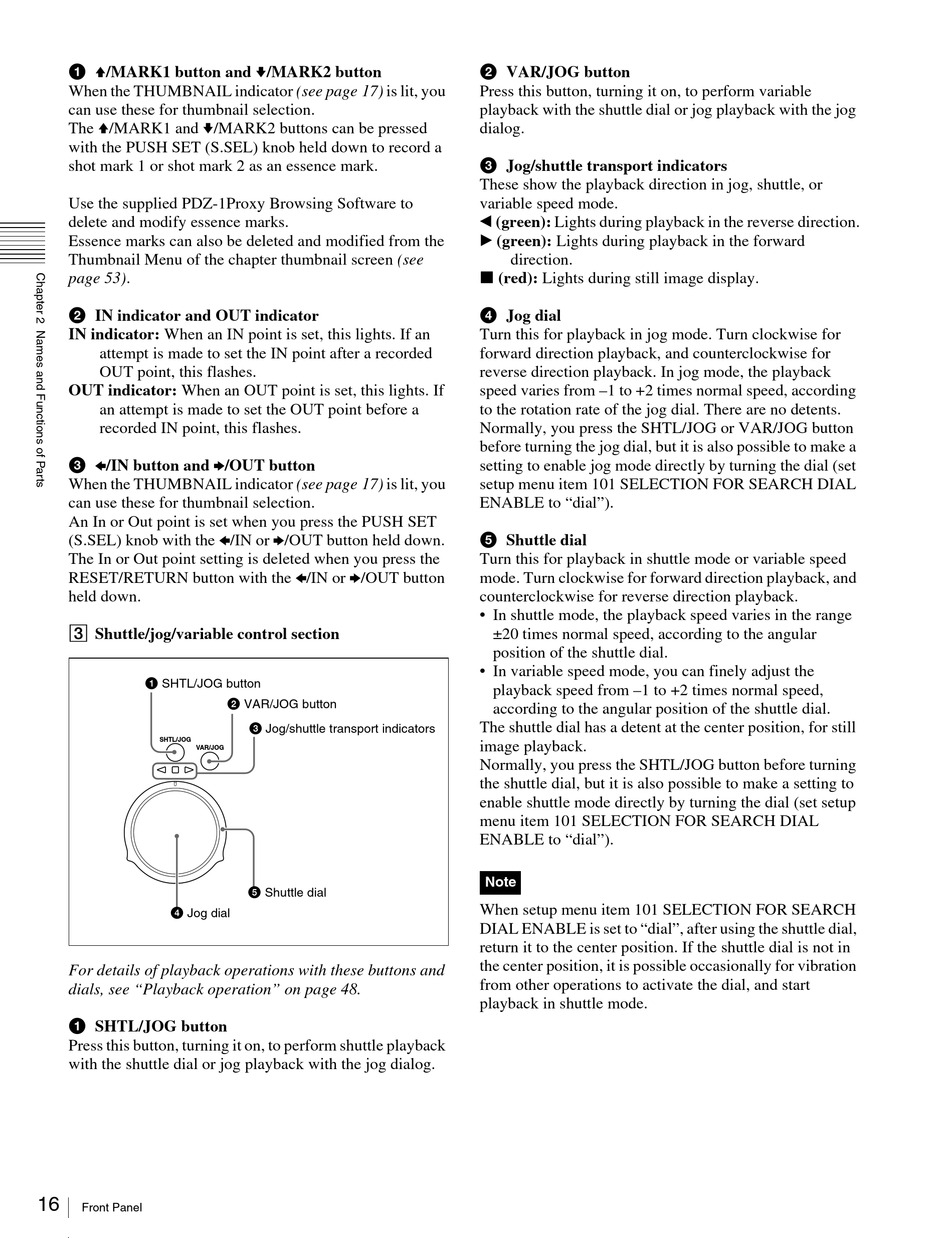

C Shuttle/jog/variable control section
1 SHTL/JOG button
SHTL/JOG
VAR/JOG
RESET
RETURN
4 Jog dial
For details of playback operations with these buttons and
dials, see "Playback operation" on page 48.
a SHTL/JOG button
Press this button, turning it on, to perform shuttle playback
with the shuttle dial or jog playback with the jog dialog.
16
Front Panel
2 VAR/JOG button
3 Jog/shuttle transport indicators
5 Shuttle dial
b VAR/JOG button
Press this button, turning it on, to perform variable
playback with the shuttle dial or jog playback with the jog
dialog.
c Jog/shuttle transport indicators
These show the playback direction in jog, shuttle, or
variable speed mode.
b (green): Lights during playback in the reverse direction.
B (green): Lights during playback in the forward
direction.
x (red): Lights during still image display.
d Jog dial
Turn this for playback in jog mode. Turn clockwise for
forward direction playback, and counterclockwise for
reverse direction playback. In jog mode, the playback
speed varies from –1 to +2 times normal speed, according
to the rotation rate of the jog dial. There are no detents.
Normally, you press the SHTL/JOG or VAR/JOG button
before turning the jog dial, but it is also possible to make a
setting to enable jog mode directly by turning the dial (set
setup menu item 101 SELECTION FOR SEARCH DIAL
ENABLE to "dial").
e Shuttle dial
Turn this for playback in shuttle mode or variable speed
mode. Turn clockwise for forward direction playback, and
counterclockwise for reverse direction playback.
• In shuttle mode, the playback speed varies in the range
±20 times normal speed, according to the angular
position of the shuttle dial.
• In variable speed mode, you can finely adjust the
playback speed from –1 to +2 times normal speed,
according to the angular position of the shuttle dial.
The shuttle dial has a detent at the center position, for still
image playback.
Normally, you press the SHTL/JOG button before turning
the shuttle dial, but it is also possible to make a setting to
enable shuttle mode directly by turning the dial (set setup
menu item 101 SELECTION FOR SEARCH DIAL
ENABLE to "dial").
Note
When setup menu item 101 SELECTION FOR SEARCH
DIAL ENABLE is set to "dial", after using the shuttle dial,
return it to the center position. If the shuttle dial is not in
the center position, it is possible occasionally for vibration
from other operations to activate the dial, and start
playback in shuttle mode.
