This unit can automatically enter standby off mode
whenever a specified time elapses in disc stop mode. For
details, see the description of setup menu item 501 STILL
TIMER (page 95).
e REC button
To start recording, hold down this button, and press the
PLAY button. The recording takes place on an unrecorded
part of the disc.
To stop recording, press the STOP button.
To monitor in E-E mode
You can press this button from stop mode to monitor input
signals in E-E mode. The button lights when pressed. Press
the STOP button to return to the original video.
You can also press this button during playback and
searches. E-E mode playback continues for as long as the
button is held down.

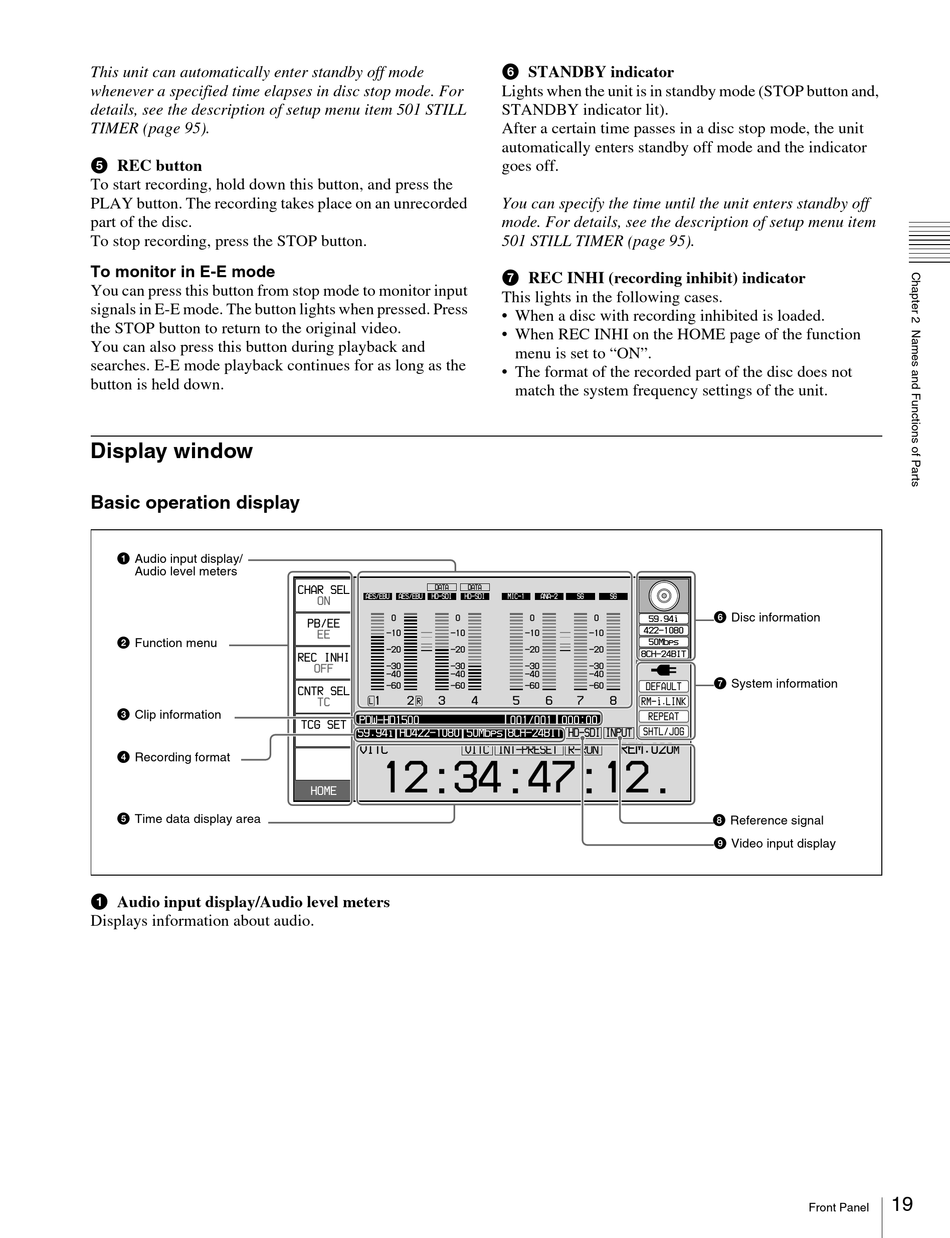

Display window

Basic operation display
1 Audio input display/
Audio level meters
2 Function menu
3 Clip information
4 Recording format
5 Time data display area
a Audio input display/Audio level meters
Displays information about audio.
DATA DATA
CHAR SEL
AES/EBU AES/EBU HD-SDI HD-SDI
ON
0 0
PB/EE
EE -10 -10
-20 -20
REC INHI
-30 -30
OFF
-40 -40
-60 -60
CNTR SEL
1 2 3 4
TC
L R
PDW-HD1500
TCG SET
59.94i HD422-1080 50Mbps
VITC
VITC INT-PRESET R-RUN
12 : 34 : 47 :
HOME
f STANDBY indicator
Lights when the unit is in standby mode (STOP button and,
STANDBY indicator lit).
After a certain time passes in a disc stop mode, the unit
automatically enters standby off mode and the indicator
goes off.
You can specify the time until the unit enters standby off
mode. For details, see the description of setup menu item
501 STILL TIMER (page 95).
g REC INHI (recording inhibit) indicator
This lights in the following cases.
• When a disc with recording inhibited is loaded.
• When REC INHI on the HOME page of the function
menu is set to "ON".
• The format of the recorded part of the disc does not
match the system frequency settings of the unit.
MIC-1 ANA-2 SG SG
0 0 59.94i
422-1080
-10 -10
50Mbps
-20 -20
8CH-24BIT
-30 -30
-40 -40
-60 -60
DEFAULT
5 6 7 8
RM-i.LINK
REPEAT
001/001 000:00
8CH-24BIT HD-SDI INPUT SHTL/JOG
REM:020
M
12
.
6 Disc information
7 System information
8 Reference signal
9 Video input display
19
