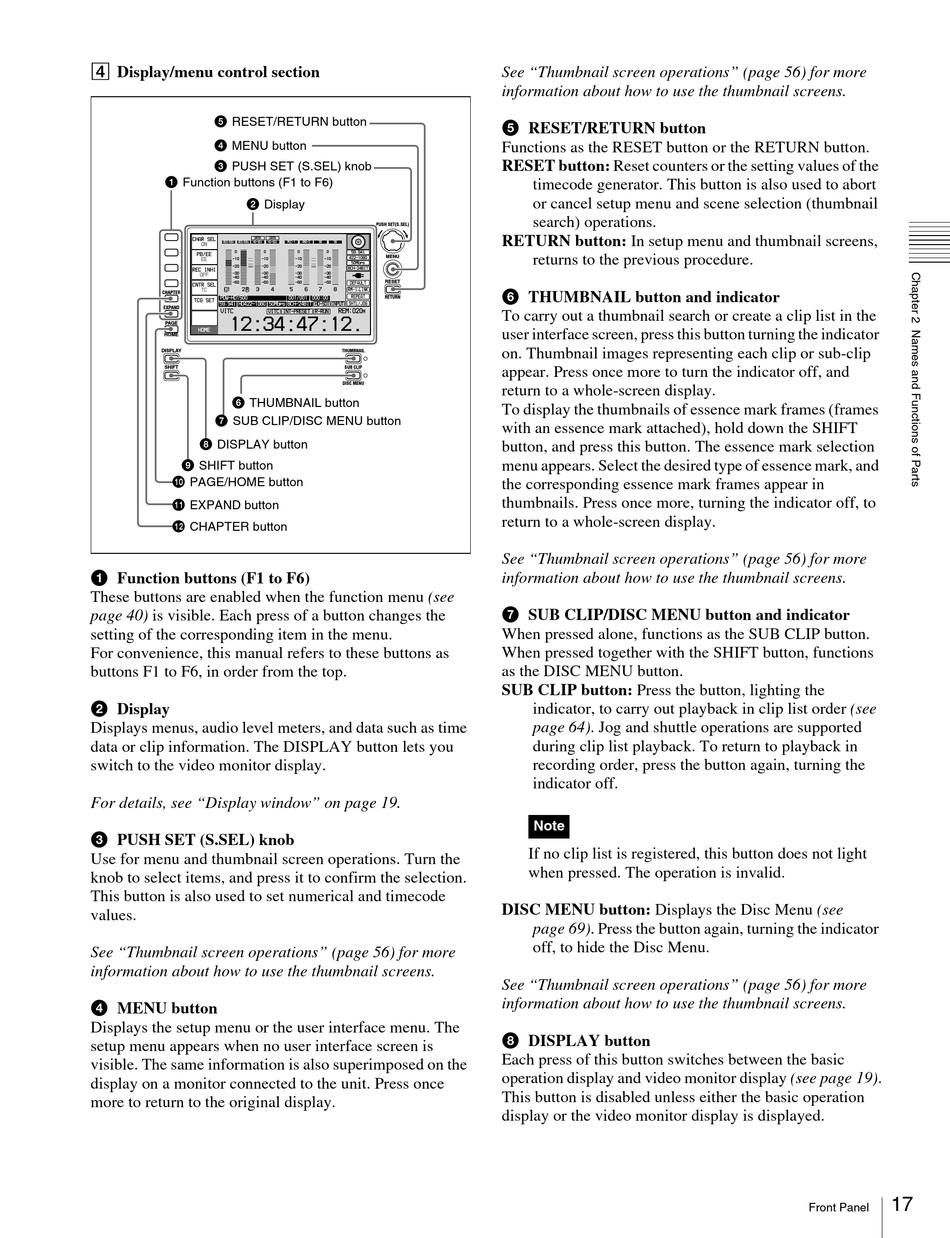

D Display/menu control section
5 RESET/RETURN button

4 MENU button

3 PUSH SET (S.SEL) knob
1 Function buttons (F1 to F6)
2 Display
DATA DATA
CHAR SEL
AES/EBU AES/EBU HD-SDI HD-SDI
ON
0 0
PB/EE
EE -10 -10
-20 -20
REC INHI
OFF -30 -30
-40 -40
-60 -60
CNTR SEL
1 2 3
TC L R
CHAPTER
PDW-HD1500
TCG SET
59.94i HD422-1080 50Mbps
EXPAND
VITC VITC INT-PRESET R-RUN
12 : 34 : 47 :
PAGE
HOME
HOME
PREV PLAY NEXT
DISPLAY
SHIFT
TOP F REV F FWD END
6 THUMBNAIL button
7 SUB CLIP/DISC MENU button

8 DISPLAY button

9 SHIFT button
0 PAGE/HOME button
qa EXPAND button
qs CHAPTER button
a Function buttons (F1 to F6)
These buttons are enabled when the function menu (see
page 40) is visible. Each press of a button changes the
setting of the corresponding item in the menu.
For convenience, this manual refers to these buttons as
buttons F1 to F6, in order from the top.
b Display
Displays menus, audio level meters, and data such as time
data or clip information. The DISPLAY button lets you
switch to the video monitor display.
For details, see "Display window" on page 19.
c PUSH SET (S.SEL) knob
Use for menu and thumbnail screen operations. Turn the
knob to select items, and press it to confirm the selection.
This button is also used to set numerical and timecode
values.
See "Thumbnail screen operations" (page 56) for more
information about how to use the thumbnail screens.
d MENU button
Displays the setup menu or the user interface menu. The
setup menu appears when no user interface screen is
visible. The same information is also superimposed on the
display on a monitor connected to the unit. Press once
more to return to the original display.
PUSH SET(S.SEL)
MIC-1 ANA-2 SG SG
0 0
59.94i
MENU
422-1080
-10 -10
50Mbps S
-20 -20
8CH-24BIT
-30 -30
-40 -40
RESET
-60 -60 DEFAULT
4 5 6 7 8
RM-i.LINK
REPEAT RETURN
001/001 000:00
SHTL/JOG
8CH-24BIT HD-SDI INPUT
REM:020
M
12
.
STOP REC
THUMBNAIL
SUB CLIP
DISC MENU
STANDBY REC INHI
See "Thumbnail screen operations" (page 56) for more
information about how to use the thumbnail screens.
e RESET/RETURN button
Functions as the RESET button or the RETURN button.
RESET button: Reset counters or the setting values of the
timecode generator. This button is also used to abort
or cancel setup menu and scene selection (thumbnail
search) operations.
RETURN button: In setup menu and thumbnail screens,
returns to the previous procedure.
f THUMBNAIL button and indicator
To carry out a thumbnail search or create a clip list in the
user interface screen, press this button turning the indicator
on. Thumbnail images representing each clip or sub-clip
appear. Press once more to turn the indicator off, and
return to a whole-screen display.
To display the thumbnails of essence mark frames (frames
with an essence mark attached), hold down the SHIFT
button, and press this button. The essence mark selection
menu appears. Select the desired type of essence mark, and
the corresponding essence mark frames appear in
thumbnails. Press once more, turning the indicator off, to
return to a whole-screen display.
See "Thumbnail screen operations" (page 56) for more
information about how to use the thumbnail screens.
g SUB CLIP/DISC MENU button and indicator
When pressed alone, functions as the SUB CLIP button.
When pressed together with the SHIFT button, functions
as the DISC MENU button.
SUB CLIP button: Press the button, lighting the
indicator, to carry out playback in clip list order (see
page 64). Jog and shuttle operations are supported
during clip list playback. To return to playback in
recording order, press the button again, turning the
indicator off.
Note
If no clip list is registered, this button does not light
when pressed. The operation is invalid.
DISC MENU button: Displays the Disc Menu (see
page 69). Press the button again, turning the indicator
off, to hide the Disc Menu.
See "Thumbnail screen operations" (page 56) for more
information about how to use the thumbnail screens.
h DISPLAY button
Each press of this button switches between the basic
operation display and video monitor display (see page 19).
This button is disabled unless either the basic operation
display or the video monitor display is displayed.
17
Front Panel
