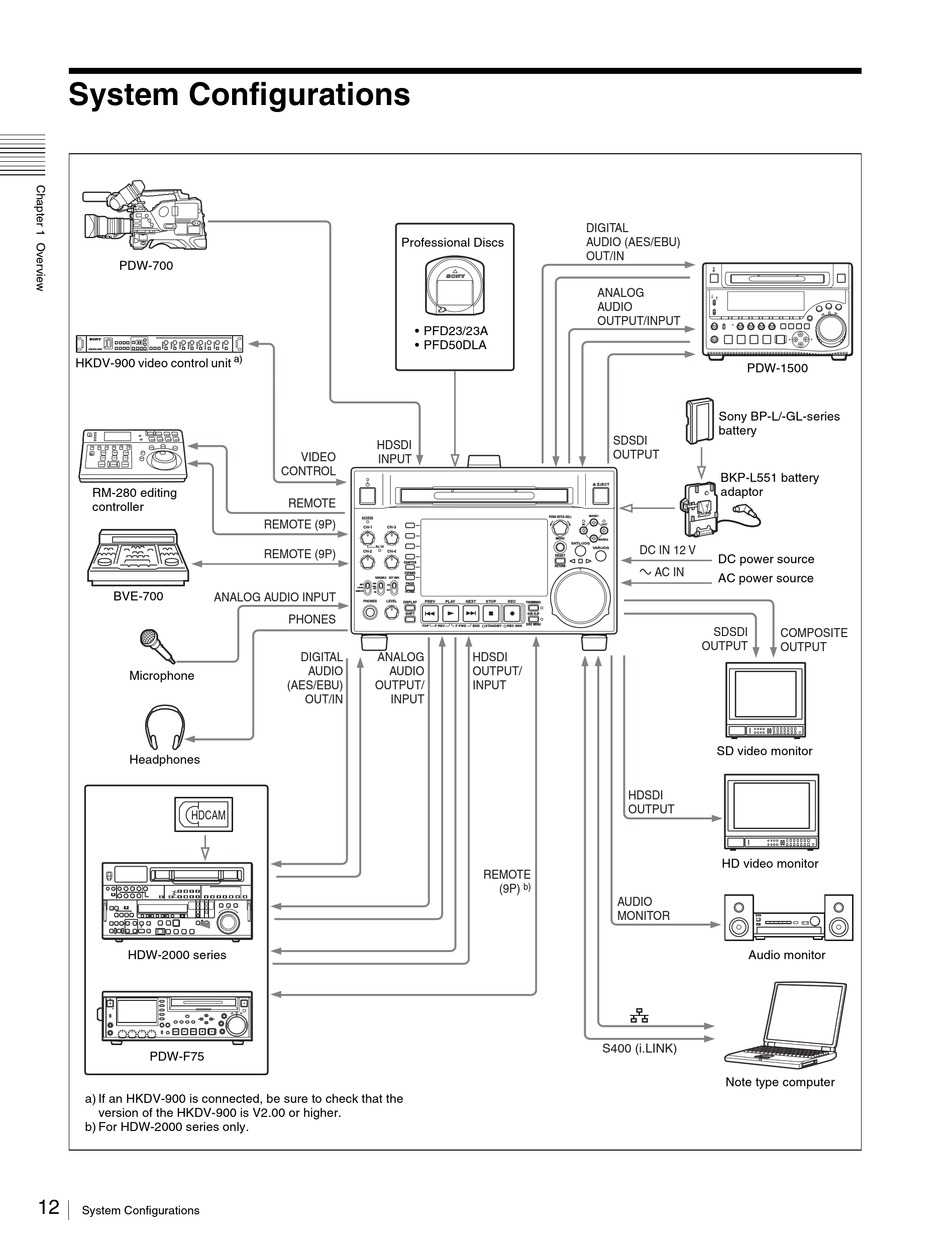

System Configurations

PDW-700
HKDV-900
HKDV-900 video control unit
RM-280 editing
controller
BVE-700
ANALOG AUDIO INPUT
Microphone
Headphones
HDCAM
HDW-2000 series
PDW-F75
a) If an HKDV-900 is connected, be sure to check that the
version of the HKDV-900 is V2.00 or higher.
b) For HDW-2000 series only.
12
System Configurations
Professional Discs
a)
HDSDI
VIDEO
INPUT
CONTROL
REMOTE
ACCESS
REMOTE (9P)
CH-1 CH-3
ALL CH
REMOTE (9P) CH-2 CH-4
CHAPTER
EXPAND
VARIABLE KEY INHI
REC PAGE
NET
ON
PRE-
LOCAL
SET
OFF
REMOTE HOME
PB
PHONES LEVEL
DISPLAY
SHIFT
PHONES
DIGITAL ANALOG
AUDIO AUDIO
(AES/EBU) OUTPUT/
OUT/IN INPUT
DIGITAL
AUDIO (AES/EBU)
OUT/IN
• PFD23/23A
• PFD50DLA
PUSH SET(S.SEL) MARK1
IN
MENU
SHTL/JOG
VAR/JOG
RESET
RETURN
PREV PLAY NEXT STOP REC
THUMBNAIL
SUB CLIP
DISC MENU
TOP F REV F FWD END STANDBY REC INHI
HDSDI
OUTPUT/
INPUT
REMOTE
b)
(9P)
ANALOG
AUDIO
OUTPUT/INPUT
PDW-1500
Sony BP-L/-GL-series
battery
SDSDI
OUTPUT
BKP-L551 battery
EJECT
adaptor
OUT
MARK2
DC IN 12 V
DC power source
- AC IN
AC power source
SDSDI
OUTPUT
SD video monitor
HDSDI
OUTPUT
HD video monitor
AUDIO
MONITOR
Audio monitor
S400 (i.LINK)
Note type computer
COMPOSITE
OUTPUT
