AES/EBU
0
-10
-20
-30
-40
-60
1
L
C Monitor channel

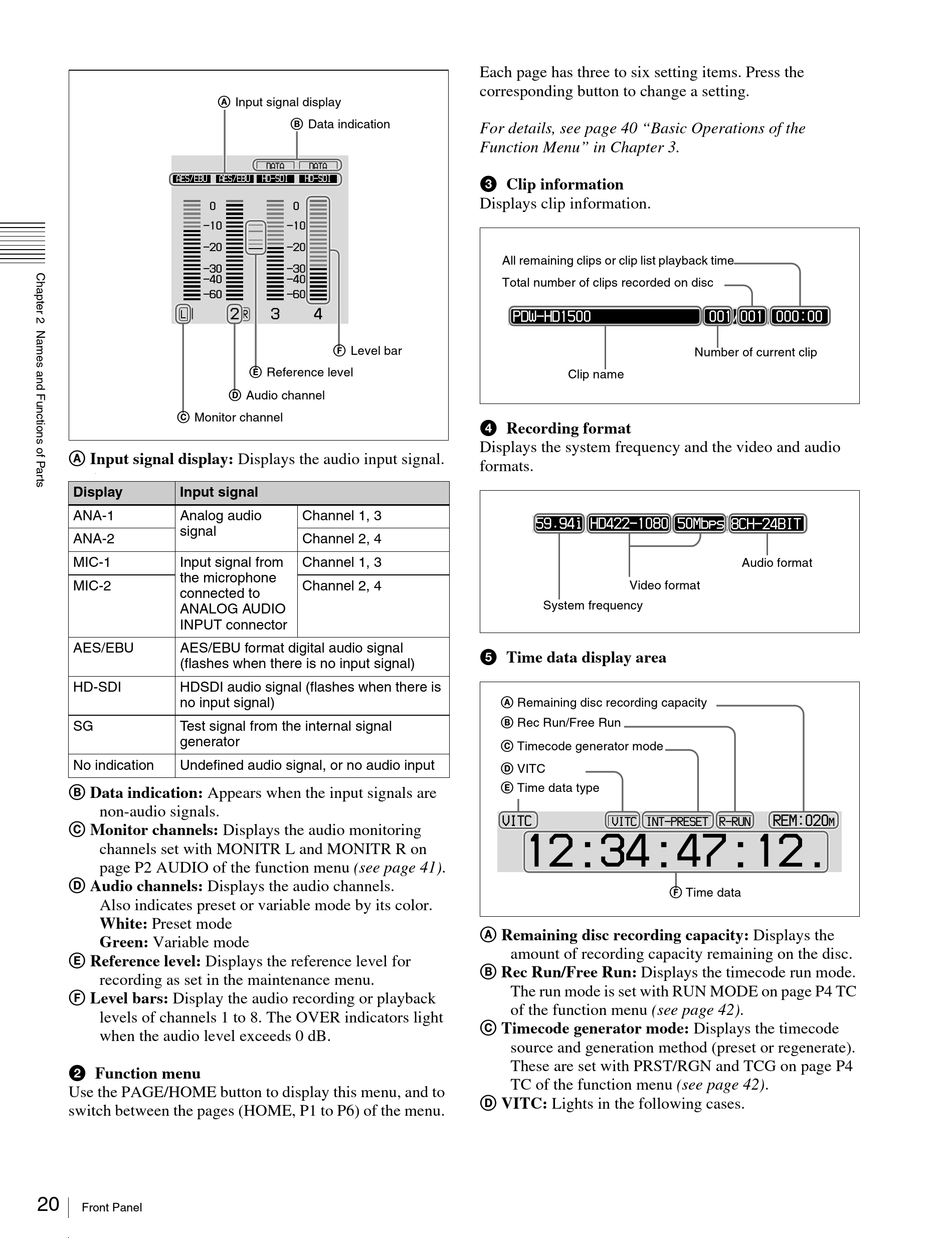

A Input signal display: Displays the audio input signal.
.
Display Input signal
ANA-1 Analog audio
signal
ANA-2
MIC-1 Input signal from
the microphone
MIC-2
connected to
ANALOG AUDIO
INPUT connector
AES/EBU AES/EBU format digital audio signal
(flashes when there is no input signal)
HD-SDI HDSDI audio signal (flashes when there is
no input signal)
SG Test signal from the internal signal
generator
No indication Undefined audio signal, or no audio input
B Data indication: Appears when the input signals are
non-audio signals.
C Monitor channels: Displays the audio monitoring
channels set with MONITR L and MONITR R on
page P2 AUDIO of the function menu (see page 41).
D Audio channels: Displays the audio channels.
Also indicates preset or variable mode by its color.
White: Preset mode
Green: Variable mode
E Reference level: Displays the reference level for
recording as set in the maintenance menu.
F Level bars: Display the audio recording or playback
levels of channels 1 to 8. The OVER indicators light
when the audio level exceeds 0 dB.
b Function menu
Use the PAGE/HOME button to display this menu, and to
switch between the pages (HOME, P1 to P6) of the menu.
20
Front Panel
A Input signal display
B Data indication
DATA DATA
AES/EBU HD-SDI HD-SDI
0
-10
-20
-30
-40
-60
2 3 4
R
F Level bar
E Reference level
D Audio channel
Channel 1, 3
Channel 2, 4
Channel 1, 3
Channel 2, 4
Each page has three to six setting items. Press the
corresponding button to change a setting.
For details, see page 40 "Basic Operations of the
Function Menu" in Chapter 3.
c Clip information
Displays clip information.
All remaining clips or clip list playback time
Total number of clips recorded on disc
PDW-HD1500
Clip name
d Recording format
Displays the system frequency and the video and audio
formats.
59.94i HD422-1080 50Mbps
Video format
System frequency
e Time data display area
A Remaining disc recording capacity
B Rec Run/Free Run
C Timecode generator mode
D VITC
E Time data type
VITC
VITC INT-PRESET R-RUN
12 : 34 : 47 :
A Remaining disc recording capacity: Displays the
amount of recording capacity remaining on the disc.
B Rec Run/Free Run: Displays the timecode run mode.
The run mode is set with RUN MODE on page P4 TC
of the function menu (see page 42).
C Timecode generator mode: Displays the timecode
source and generation method (preset or regenerate).
These are set with PRST/RGN and TCG on page P4
TC of the function menu (see page 42).
D VITC: Lights in the following cases.
001/001 000:00
Number of current clip
8CH-24BIT
Audio format
REM:020
M
12
.
F Time data
