Maintenance Menu Operations - Sony PDW-HD1500 Operation Manual

Item
M53: DEFAULT GATEWAY
PRESET
M54: LINK SPEED
M55: DUPLEX
M56: JUMBO FRAME
a) A jumbo frame is a frame larger than the maximum 1514 bytes (not
including FCS) of the standard Ethernet frame. Jumbo frames make it
possible to deliver larger payloads per packet. Since fewer packets need to
be routed, packet processing overhead is lower and network throughput is
potentially improved. (Note that this item is enabled only when LINK
SPEED is set to "1000Mbps". For it to work, all other devices that handle
packets on the network must also support jumbo frames.)

Maintenance menu operations

This section describes the indications in the maintenance
menu and how to change the settings.
To display the maintenance menu
Holding down the PAGE/HOME button and the SHIFT
button, press the MENU button.
The maintenance menu appears on the video monitor
display and the currently-set menu item is displayed in
reverse video.
Meanings of indications on the menu
screen
On-screen indication
Right-pointing arrow
(c) at the right of a
menu item
Left-pointing arrow (C)
at the left of a menu
item
106

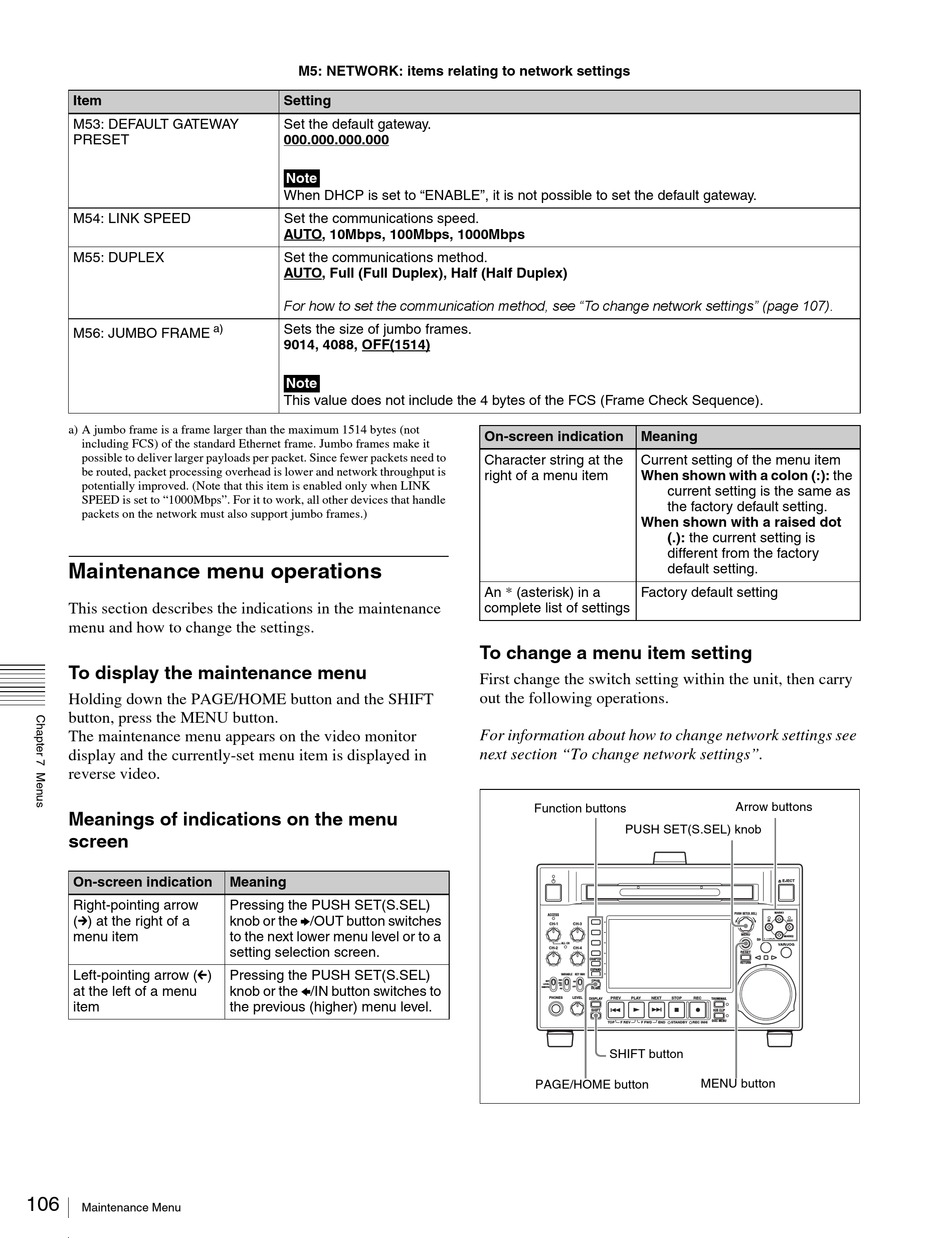

Maintenance Menu
M5: NETWORK: items relating to network settings
Setting
Set the default gateway.
000.000.000.000
Note
When DHCP is set to "ENABLE", it is not possible to set the default gateway.
Set the communications speed.
AUTO, 10Mbps, 100Mbps, 1000Mbps
Set the communications method.
AUTO, Full (Full Duplex), Half (Half Duplex)
For how to set the communication method, see "To change network settings" (page 107).
a) Sets the size of jumbo frames.
9014, 4088, OFF(1514)
Note
This value does not include the 4 bytes of the FCS (Frame Check Sequence).
Meaning
Pressing the PUSH SET(S.SEL)
knob or the b/OUT button switches
to the next lower menu level or to a
setting selection screen.
Pressing the PUSH SET(S.SEL)
knob or the B/IN button switches to
the previous (higher) menu level.
On-screen indication Meaning
Character string at the Current setting of the menu item
right of a menu item When shown with a colon (:): the
When shown with a raised dot
An * (asterisk) in a Factory default setting
complete list of settings
To change a menu item setting
First change the switch setting within the unit, then carry
out the following operations.
For information about how to change network settings see
next section "To change network settings".
Function buttons
PUSH SET(S.SEL) knob
ACCESS
CH-1 CH-3
ALL CH
CH-2 CH-4
CHAPTER
EXPAND
VARIABLE KEY INHI
REC PAGE
NET
ON
PRE-
LOCAL
SET
OFF
REMOTE HOME
PB
PHONES LEVEL PREV PLAY NEXT
DISPLAY
SHIFT
TOP F REV F FWD END
SHIFT button
PAGE/HOME button
current setting is the same as
the factory default setting.
(.): the current setting is
different from the factory
default setting.
Arrow buttons
EJECT
PUSH SET(S.SEL) MARK1
IN OUT
MENU
MARK2
SHTL/JOG
VAR/JOG
RESET
RETURN
STOP REC
THUMBNAIL
SUB CLIP
DISC MENU
STANDBY REC INHI
MENU button
