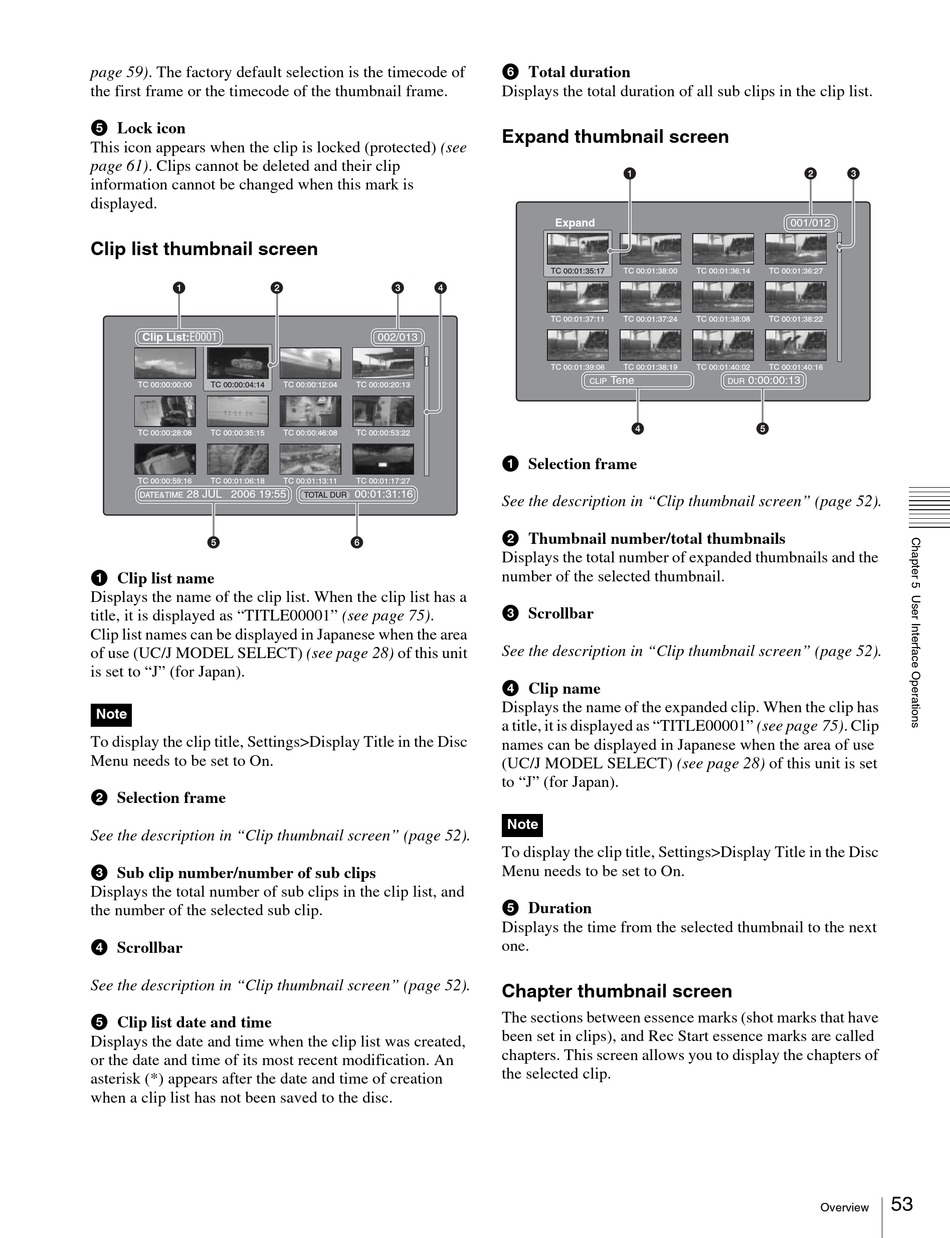

Sony PDW-HD1500 Operation Manual page 53

page 59). The factory default selection is the timecode of
the first frame or the timecode of the thumbnail frame.
e Lock icon
This icon appears when the clip is locked (protected) (see
page 61). Clips cannot be deleted and their clip
information cannot be changed when this mark is
displayed.
Clip list thumbnail screen
1
Clip List:E0001
TC 00:00:00:00 TC 00:00:04:14
TC 00:00:28:08 TC 00:00:35:15
TC 00:00:59:16 TC 00:01:06:18
28 JUL 2006 19:55
DATE&TIME
5
a Clip list name
Displays the name of the clip list. When the clip list has a
title, it is displayed as "TITLE00001" (see page 75).
Clip list names can be displayed in Japanese when the area
of use (UC/J MODEL SELECT) (see page 28) of this unit
is set to "J" (for Japan).
Note
To display the clip title, Settings>Display Title in the Disc
Menu needs to be set to On.
b Selection frame
See the description in "Clip thumbnail screen" (page 52).
c Sub clip number/number of sub clips
Displays the total number of sub clips in the clip list, and
the number of the selected sub clip.
d Scrollbar
See the description in "Clip thumbnail screen" (page 52).
e Clip list date and time
Displays the date and time when the clip list was created,
or the date and time of its most recent modification. An
asterisk (*) appears after the date and time of creation
when a clip list has not been saved to the disc.
2 3 4
002/013
TC 00:00:12:04 TC 00:00:20:13
TC 00:00:46:08 TC 00:00:53:22
TC 00:01:13:11 TC 00:01:17:27
00:01:31:16
TOTAL DUR
6
f Total duration
Displays the total duration of all sub clips in the clip list.
Expand thumbnail screen
1
Expand
TC 00:01:35:17 TC 00:01:38:00
TC 00:01:37:11 TC 00:01:37:24
TC 00:01:39:06 TC 00:01:38:19
Tene
CLIP
4
a Selection frame
See the description in "Clip thumbnail screen" (page 52).
b Thumbnail number/total thumbnails
Displays the total number of expanded thumbnails and the
number of the selected thumbnail.
c Scrollbar
See the description in "Clip thumbnail screen" (page 52).
d Clip name
Displays the name of the expanded clip. When the clip has
a title, it is displayed as "TITLE00001" (see page 75). Clip
names can be displayed in Japanese when the area of use
(UC/J MODEL SELECT) (see page 28) of this unit is set
to "J" (for Japan).
Note
To display the clip title, Settings>Display Title in the Disc
Menu needs to be set to On.
e Duration
Displays the time from the selected thumbnail to the next
one.
Chapter thumbnail screen
The sections between essence marks (shot marks that have
been set in clips), and Rec Start essence marks are called
chapters. This screen allows you to display the chapters of
the selected clip.
2 3
001/012
TC 00:01:36:14 TC 00:01:36:27
TC 00:01:38:08 TC 00:01:38:22
TC 00:01:40:02 TC 00:01:40:16
0:00:00:13
DUR
5
Overview
53
