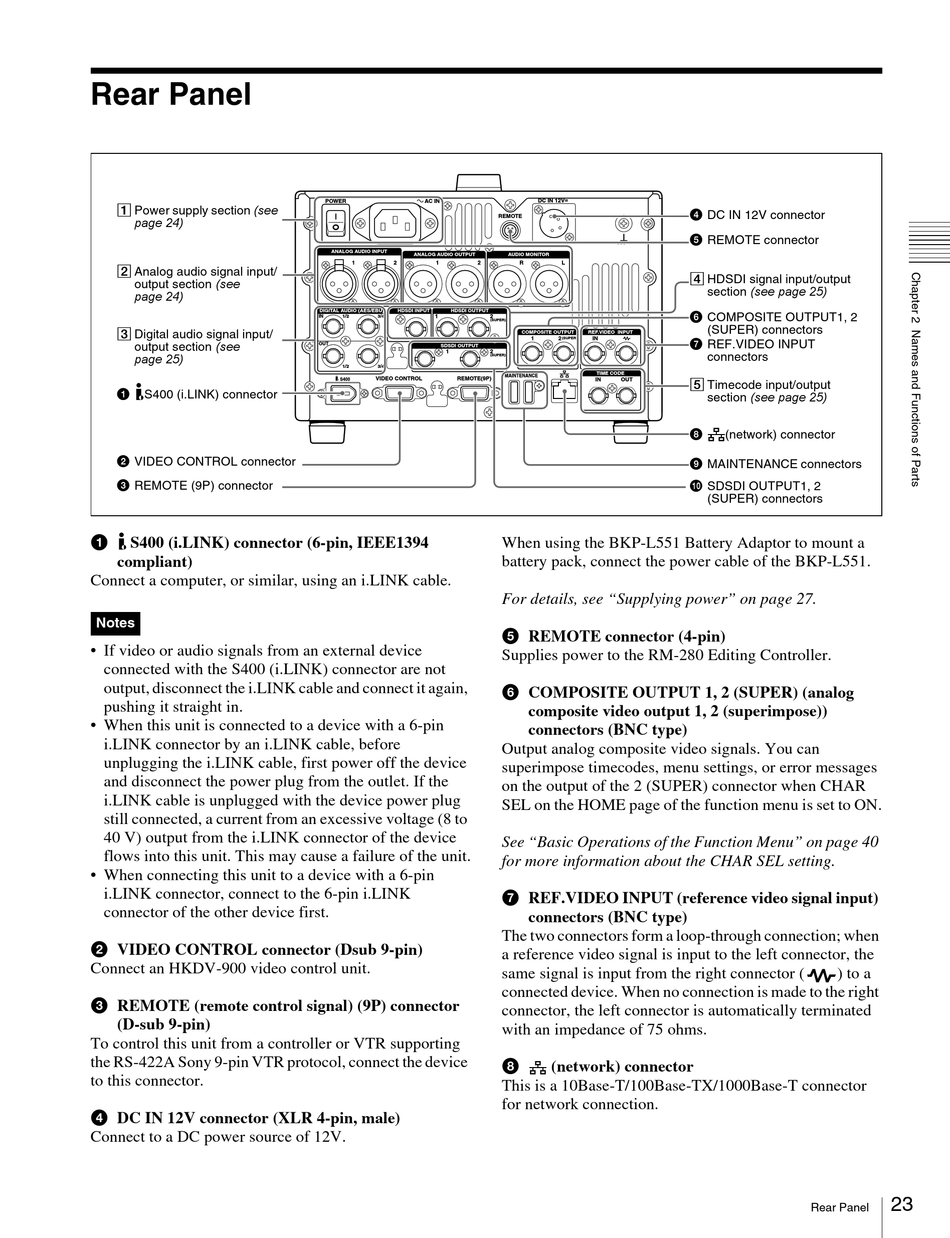

Rear Panel

1 Power supply section (see
page 24)
2 Analog audio signal input/
output section (see
page 24)
3 Digital audio signal input/
output section (see
page 25)
S400 (i.LINK) connector
1
2 VIDEO CONTROL connector
3 REMOTE (9P) connector
a
S400 (i.LINK) connector (6-pin, IEEE1394
compliant)
Connect a computer, or similar, using an i.LINK cable.
Notes
• If video or audio signals from an external device
connected with the S400 (i.LINK) connector are not
output, disconnect the i.LINK cable and connect it again,
pushing it straight in.
• When this unit is connected to a device with a 6-pin
i.LINK connector by an i.LINK cable, before
unplugging the i.LINK cable, first power off the device
and disconnect the power plug from the outlet. If the
i.LINK cable is unplugged with the device power plug
still connected, a current from an excessive voltage (8 to
40 V) output from the i.LINK connector of the device
flows into this unit. This may cause a failure of the unit.
• When connecting this unit to a device with a 6-pin
i.LINK connector, connect to the 6-pin i.LINK
connector of the other device first.
b VIDEO CONTROL connector (Dsub 9-pin)
Connect an HKDV-900 video control unit.
c REMOTE (remote control signal) (9P) connector
(D-sub 9-pin)
To control this unit from a controller or VTR supporting
the RS-422A Sony 9-pin VTR protocol, connect the device
to this connector.
d DC IN 12V connector (XLR 4-pin, male)
Connect to a DC power source of 12V.
POWER AC IN
ANALOG AUDIO INPUT
ANALOG AUDIO OUTPUT
1 2 1 2
DIGITAL AUDIO (AES/EBU) HDSDI INPUT HDSDI OUTPUT
IN 1/2 3/4 1 2
(SUPER)
OUT
SDSDI OUTPUT
1 2
(SUPER)
1/2 3/4
S400 VIDEO CONTROL REMOTE(9P)
DC IN 12V =
REMOTE
AUDIO MONITOR
R L
COMPOSITE OUTPUT REF.VIDEO INPUT
1 2 IN
(SUPER)
TIME CODE
MAINTENANCE
IN OUT
When using the BKP-L551 Battery Adaptor to mount a
battery pack, connect the power cable of the BKP-L551.
For details, see "Supplying power" on page 27.
e REMOTE connector (4-pin)
Supplies power to the RM-280 Editing Controller.
f COMPOSITE OUTPUT 1, 2 (SUPER) (analog
composite video output 1, 2 (superimpose))
connectors (BNC type)
Output analog composite video signals. You can
superimpose timecodes, menu settings, or error messages
on the output of the 2 (SUPER) connector when CHAR
SEL on the HOME page of the function menu is set to ON.
See "Basic Operations of the Function Menu" on page 40
for more information about the CHAR SEL setting.
g REF.VIDEO INPUT (reference video signal input)
connectors (BNC type)
The two connectors form a loop-through connection; when
a reference video signal is input to the left connector, the
same signal is input from the right connector (
connected device. When no connection is made to the right
connector, the left connector is automatically terminated
with an impedance of 75 ohms.
h
(network) connector
This is a 10Base-T/100Base-TX/1000Base-T connector
for network connection.
4 DC IN 12V connector
5 REMOTE connector
4 HDSDI signal input/output
section (see page 25)
6 COMPOSITE OUTPUT1, 2
(SUPER) connectors
7 REF.VIDEO INPUT
connectors
5 Timecode input/output
section (see page 25)
8 (network) connector
9 MAINTENANCE connectors
0 SDSDI OUTPUT1, 2
(SUPER) connectors
) to a
