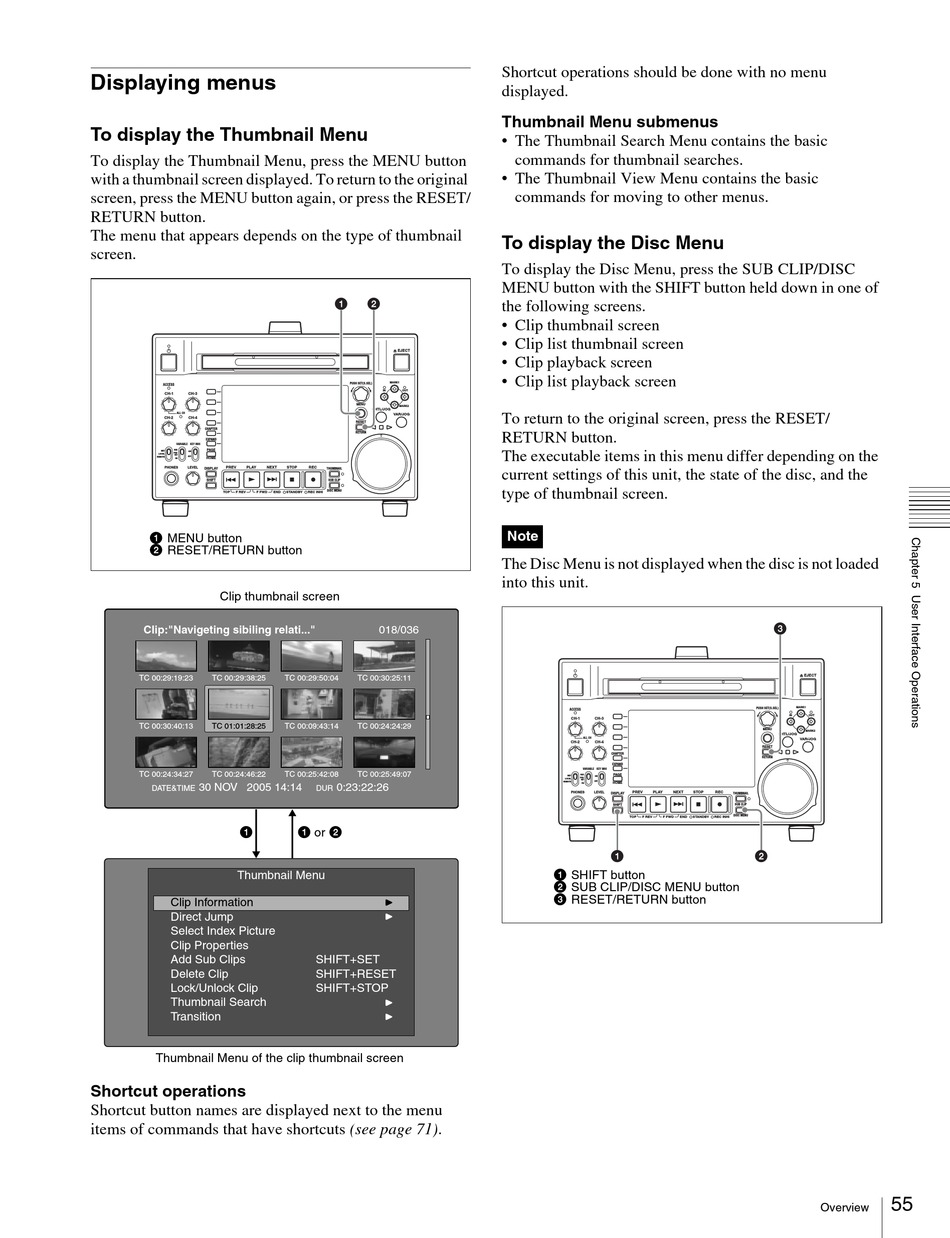

Displaying menus

To display the Thumbnail Menu
To display the Thumbnail Menu, press the MENU button
with a thumbnail screen displayed. To return to the original
screen, press the MENU button again, or press the RESET/
RETURN button.
The menu that appears depends on the type of thumbnail
screen.
ACCESS
CH-1 CH-3
ALL CH
CH-2 CH-4
CHAPTER
EXPAND
VARIABLE KEY INHI
REC PAGE
NET ON
PRE-
LOCAL
SET
OFF
REMOTE
PB HOME
PHONES LEVEL PREV PLAY NEXT
DISPLAY
SHIFT
TOP F REV F FWD
1 MENU button
2 RESET/RETURN button
Clip thumbnail screen
Clip:"Navigeting sibiling relati..."
TC 00:29:19:23 TC 00:29:38:25
TC 00:30:40:13 TC 01:01:28:25
TC 00:24:34:27 TC 00:24:46:22
30 NOV 2005 14:14
DATE&TIME
1
Thumbnail Menu
Clip Information
Direct Jump
Select Index Picture
Clip Properties
Add Sub Clips
Delete Clip
Lock/Unlock Clip
Thumbnail Search
Transition
Thumbnail Menu of the clip thumbnail screen
Shortcut operations
Shortcut button names are displayed next to the menu
items of commands that have shortcuts (see page 71).
1 2
EJECT
MARK1
PUSH SET(S.SEL)
IN OUT
MENU
MARK2
SHTL/JOG
VAR/JOG
RESET
RETURN
STOP REC
THUMBNAIL
SUB CLIP
DISC MENU
END STANDBY REC INHI
018/036
TC 00:29:50:04 TC 00:30:25:11
TC 00:09:43:14 TC 00:24:24:29
TC 00:25:42:08 TC 00:25:49:07
0:23:22:26
DUR
1 or 2
SHIFT+SET
SHIFT+RESET
SHIFT+STOP
Shortcut operations should be done with no menu
displayed.
Thumbnail Menu submenus
• The Thumbnail Search Menu contains the basic
commands for thumbnail searches.
• The Thumbnail View Menu contains the basic
commands for moving to other menus.
To display the Disc Menu
To display the Disc Menu, press the SUB CLIP/DISC
MENU button with the SHIFT button held down in one of
the following screens.
• Clip thumbnail screen
• Clip list thumbnail screen
• Clip playback screen
• Clip list playback screen
To return to the original screen, press the RESET/
RETURN button.
The executable items in this menu differ depending on the
current settings of this unit, the state of the disc, and the
type of thumbnail screen.
Note
The Disc Menu is not displayed when the disc is not loaded
into this unit.
ACCESS
CH-1 CH-3
ALL CH
CH-2 CH-4
CHAPTER
EXPAND
VARIABLE KEY INHI
PAGE
REC
NET ON
PRE-
LOCAL
SET
OFF
REMOTE HOME
PB
PHONES LEVEL PREV PLAY NEXT
DISPLAY
SHIFT
TOP F REV F FWD END
1
1 SHIFT button
2 SUB CLIP/DISC MENU button
3 RESET/RETURN button
3
EJECT
MARK1
PUSH SET(S.SEL)
IN OUT
MENU
MARK2
SHTL/JOG
VAR/JOG
RESET
RETURN
STOP REC
THUMBNAIL
SUB CLIP
DISC MENU
STANDBY REC INHI
2
