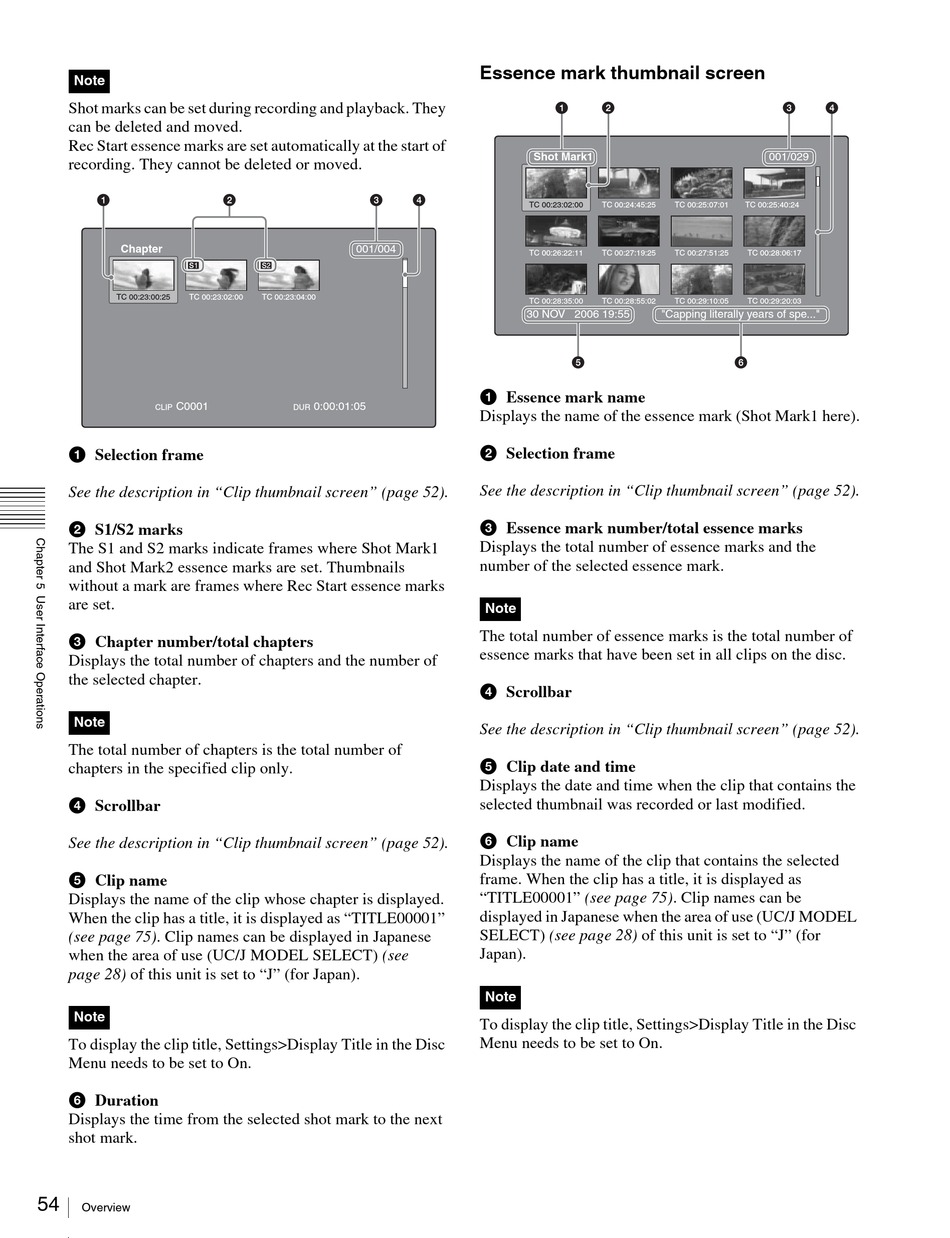

Sony PDW-HD1500 Operation Manual page 54

Note
Shot marks can be set during recording and playback. They
can be deleted and moved.
Rec Start essence marks are set automatically at the start of
recording. They cannot be deleted or moved.
1
Chapter
TC 00:23:00:25 TC 00:23:02:00
C0001
CLIP
a Selection frame
See the description in "Clip thumbnail screen" (page 52).
b S1/S2 marks
The S1 and S2 marks indicate frames where Shot Mark1
and Shot Mark2 essence marks are set. Thumbnails
without a mark are frames where Rec Start essence marks
are set.
c Chapter number/total chapters
Displays the total number of chapters and the number of
the selected chapter.
Note
The total number of chapters is the total number of
chapters in the specified clip only.
d Scrollbar
See the description in "Clip thumbnail screen" (page 52).
e Clip name
Displays the name of the clip whose chapter is displayed.
When the clip has a title, it is displayed as "TITLE00001"
(see page 75). Clip names can be displayed in Japanese
when the area of use (UC/J MODEL SELECT) (see
page 28) of this unit is set to "J" (for Japan).
Note
To display the clip title, Settings>Display Title in the Disc
Menu needs to be set to On.
f Duration
Displays the time from the selected shot mark to the next
shot mark.
54
Overview
2 3
001/004
TC 00:23:04:00
0:00:01:05
DUR
Essence mark thumbnail screen
1
Shot Mark1
4
TC 00:23:02:00
TC 00:26:22:11
TC 00:28:35:00
30 NOV 2006 19:55
5
a Essence mark name
Displays the name of the essence mark (Shot Mark1 here).
b Selection frame
See the description in "Clip thumbnail screen" (page 52).
c Essence mark number/total essence marks
Displays the total number of essence marks and the
number of the selected essence mark.
Note
The total number of essence marks is the total number of
essence marks that have been set in all clips on the disc.
d Scrollbar
See the description in "Clip thumbnail screen" (page 52).
e Clip date and time
Displays the date and time when the clip that contains the
selected thumbnail was recorded or last modified.
f Clip name
Displays the name of the clip that contains the selected
frame. When the clip has a title, it is displayed as
"TITLE00001" (see page 75). Clip names can be
displayed in Japanese when the area of use (UC/J MODEL
SELECT) (see page 28) of this unit is set to "J" (for
Japan).
Note
To display the clip title, Settings>Display Title in the Disc
Menu needs to be set to On.
2
001/029
TC 00:24:45:25 TC 00:25:07:01 TC 00:25:40:24
TC 00:27:19:25 TC 00:27:51:25 TC 00:28:06:17
TC 00:28:55:02 TC 00:29:10:05 TC 00:29:20:03
"Capping literally years of spe..."
6
3 4
