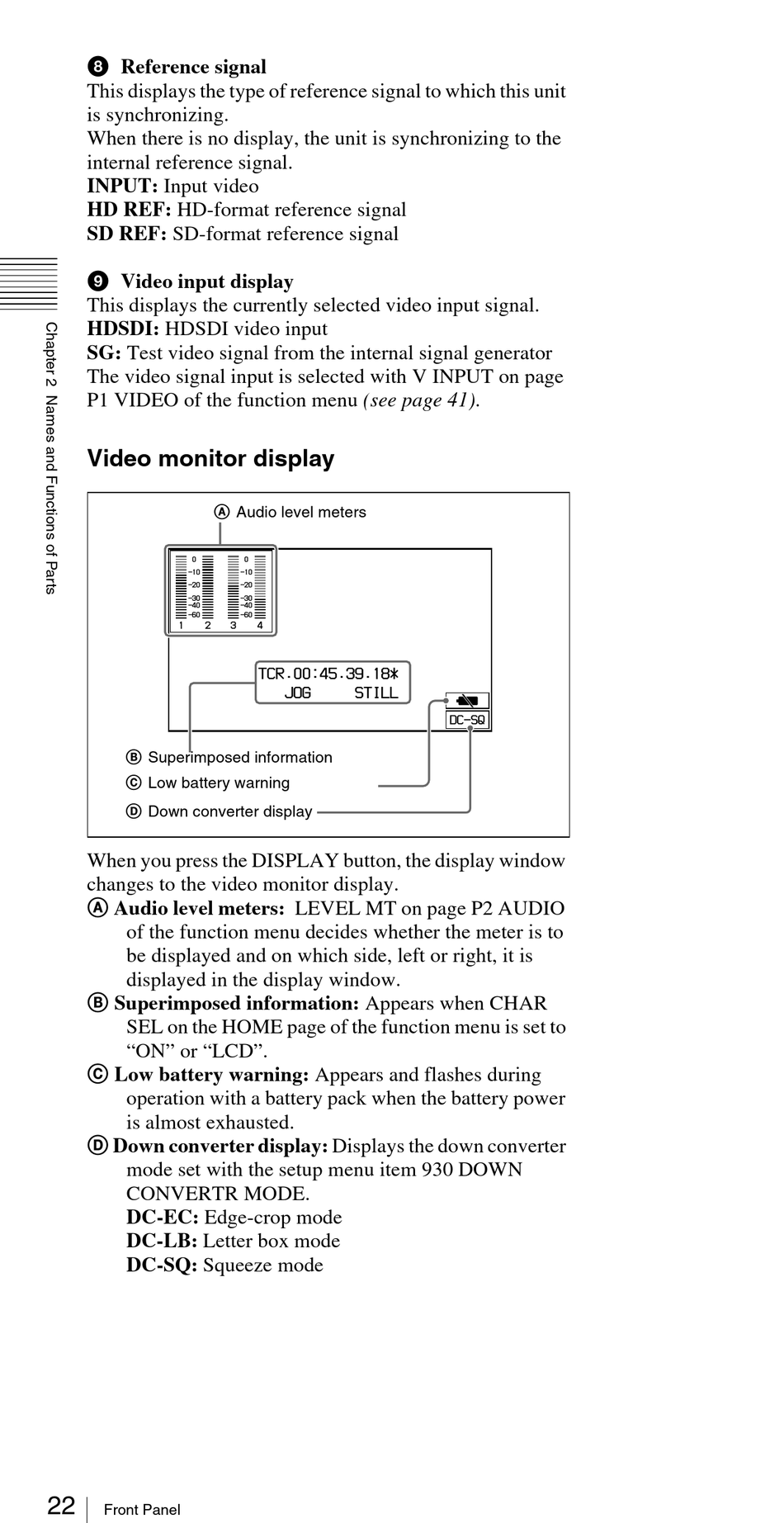

Sony PDW-HD1500 Operation Manual page 22

h Reference signal
This displays the type of reference signal to which this unit
is synchronizing.
When there is no display, the unit is synchronizing to the
internal reference signal.
INPUT: Input video
HD REF: HD-format reference signal
SD REF: SD-format reference signal
i Video input display
This displays the currently selected video input signal.
HDSDI: HDSDI video input
SG: Test video signal from the internal signal generator
The video signal input is selected with V INPUT on page
P1 VIDEO of the function menu (see page 41).
Video monitor display
A Audio level meters
0 0
-10 -10
-20 -20
-30 -30
-40 -40
-60 -60
1 2 3 4
TCR.00:45.39.18*
B Superimposed information
C Low battery warning
D Down converter display
When you press the DISPLAY button, the display window
changes to the video monitor display.
A Audio level meters: LEVEL MT on page P2 AUDIO
of the function menu decides whether the meter is to
be displayed and on which side, left or right, it is
displayed in the display window.
B Superimposed information: Appears when CHAR
SEL on the HOME page of the function menu is set to
"ON" or "LCD".
C Low battery warning: Appears and flashes during
operation with a battery pack when the battery power
is almost exhausted.
D Down converter display: Displays the down converter
mode set with the setup menu item 930 DOWN
CONVERTR MODE.
DC-EC: Edge-crop mode
DC-LB: Letter box mode
DC-SQ: Squeeze mode
22
Front Panel
JOG STILL
DC-SQ
