6.1 Configuration

Dial-Out Modem Ports Setup 6

Dial-out ports can be just a simple Unix outbound cu call
or IOLAN+ can act as a dial-out router to facilitate Internet
PPP requests.
As a dial-out router IOLAN+ automatically establishes a
PPP/SLIP/CSLIP link to that site. Then drops the call after a
preset period of inactivity. This dial-on-demand feature is
automatic. IOLAN+ will place the call when local TCP/IP
traffic needs to be routed to a configured remote site.
If not using dial-out routing, you will need a COMPORT
redirector such as ioland . The Perle CD has the ioland
utility if you are using Unix. Please load the appropriate
binary onto your system. If you can not find the correct
binary, please compile the ioland.c source code for your
system (see your Unix manual).
The Port Setup Menu should be set up as follows for both
simple dial-in connections and PPP/SLIP connections.
** Administrator **
Hardware
Speed
Parity
Bit
Stop
Break
Monitor DSR
Monitor DCD
User
Name [
Terminal type [ansi
TERM
Video pages
CLI/Menu
Reset Term
________________________________________________________________________________

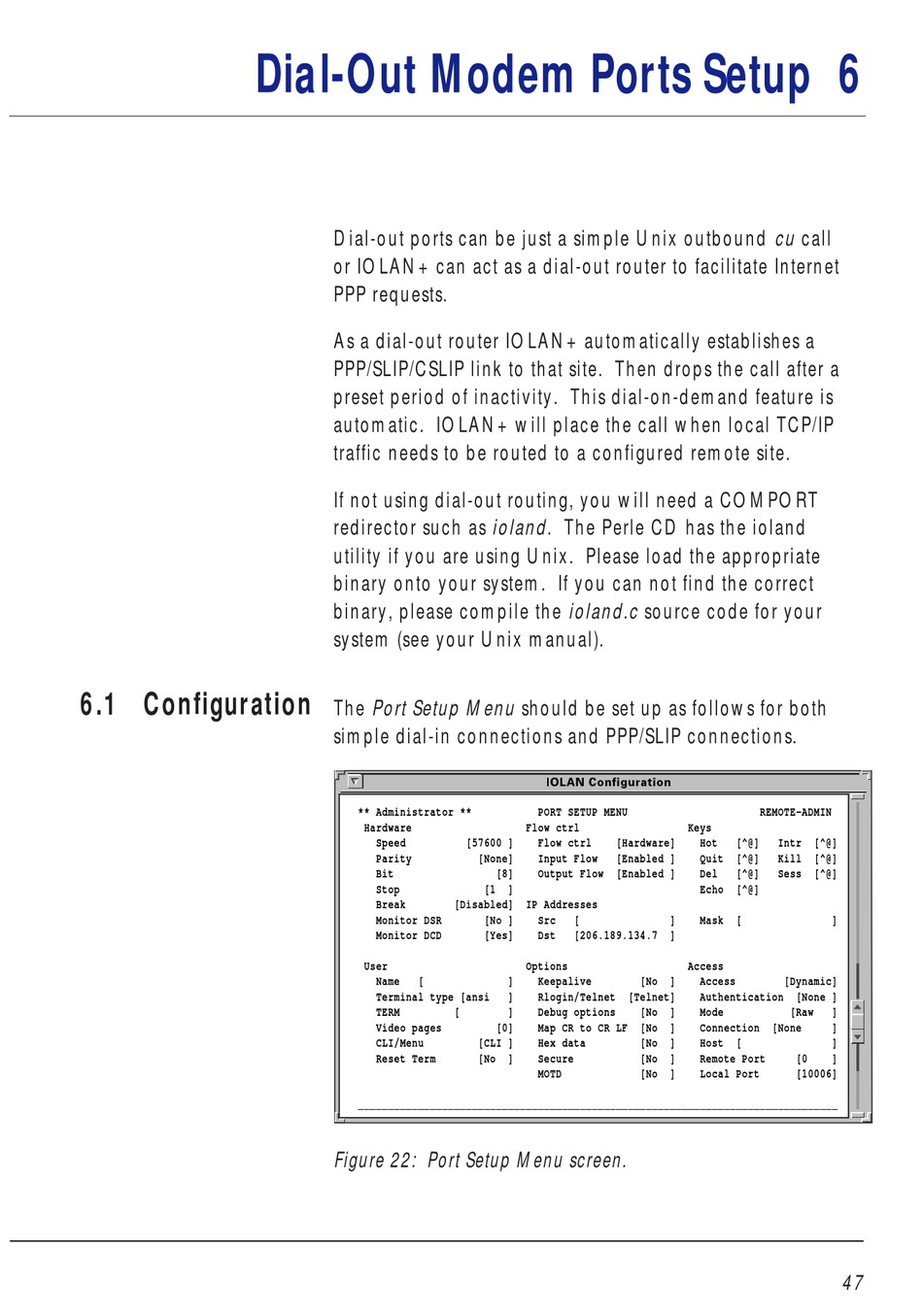

Figure 22: Port Setup Menu screen.
Dial-out Modem Ports Setup
PORT SETUP MENU
Flow ctrl
[57600 ] Flow ctrl [Hardware]
[None] Input Flow [Enabled ]
[8] Output Flow [Enabled ]
[1 ]
[Disabled] IP Addresses
[No ] Src [
[Yes] Dst [206.189.134.7 ]
Options
] Keepalive
] Rlogin/Telnet [Telnet]
[ ] Debug options
[0] Map CR to CR LF [No ]
[CLI ] Hex data
[No ] Secure
MOTD
REMOTE-ADMIN
Keys
Hot [^@] Intr [^@]
Quit [^@] Kill [^@]
Del [^@] Sess [^@]
Echo [^@]
] Mask [
Access
[No ] Access [Dynamic]
Authentication [None ]
[No ] Mode [Raw
Connection [None
[No ] Host [
[No ] Remote Port [0
[No ] Local Port [10006]
]
]
]
]
]
47
