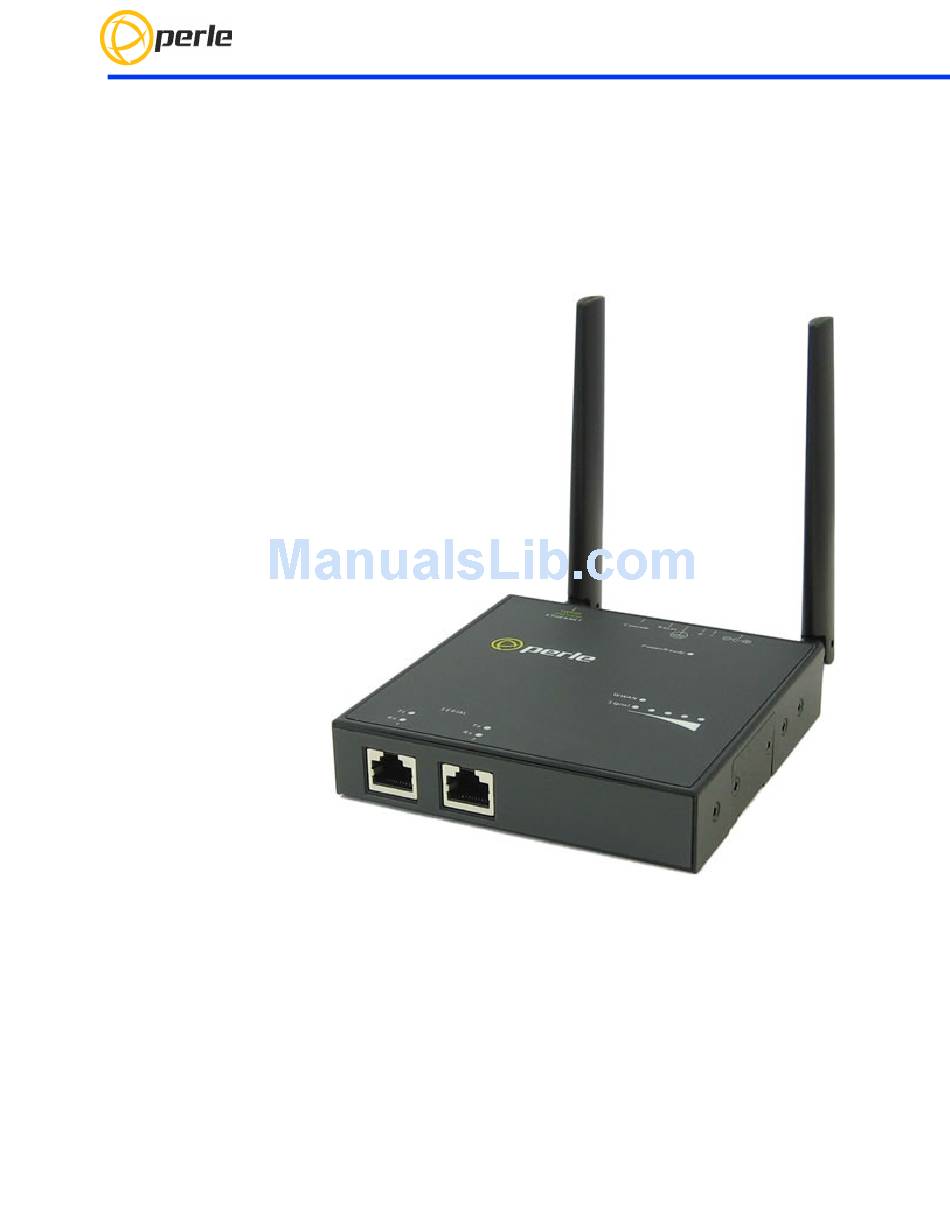

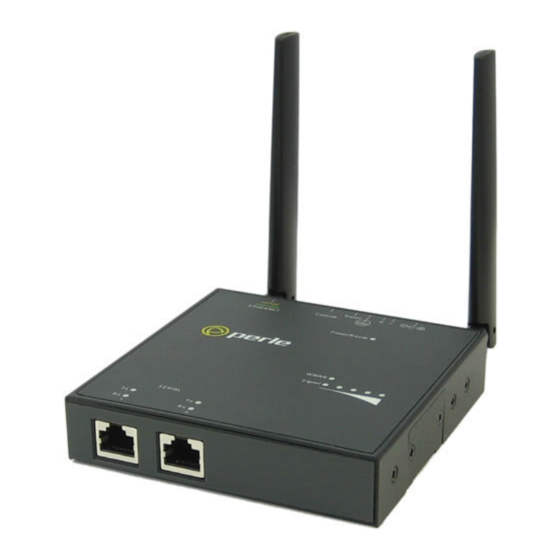

- Page 1 IOLAN SDS2 LA/LE Hardware Installation Guide Updated: October 2017 Version A.1.10.25.2017 www.perle.com Document Part#:5500410-10 (Rev C)
- Page 2 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product. Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.
-
Page 3: Table Of Contents
Table of Contents Preface ......................2 Overview . -
Page 4: Preface
SDS2 LA/LE. It covers hardware features as well as installation and operation of the IOLAN. This document does not cover how to configure your Perle IOLAN SDS2 LA/LE. Information to configure your Perle IOLAN SDS2 LA/LE can be found in the IOLAN User’s Guide. -
Page 5: Overview
Overview This chapter discusses the following topics: IOLAN SDS2 L IOLAN SDS2 L (Back View) Ethernet and Serial Port Button/Switch Functions LED Indicators Ethernet Port Status Indicators Installation IOLAN SDS2 L IOLAN SDS2 LA/LE Hardware Installation Guide... -
Page 6: Iolan Sds2 L (Back View)
The Power/Ready LEDs on the IOLAN SDS2 L will go On and then momentarily Off when released to show that the unit has been rebooted. All links will be dropped and the MAC tables will be cleared. IOLAN SDS2 LA/LE Hardware Installation Guide... -
Page 7: Led Indicators
Description 2 X Orange/ This is a progressive signal. If 3 X Green only the orange LEDs are lit, this would indicate a weak signal. Advancement of green LEDs indicate a stronger signal strength IOLAN SDS2 LA/LE Hardware Installation Guide... -
Page 8: Ethernet Port Status Indicators
Ethernet Port Status Indicators Port Link / Speed (Green, Amber and Yellow LEDs) State Description Green 1000 Mbps (flashes with activity) Green/Orange 100 Mbps (flashes with activity) Orange 10 Mbps (flashes with activity) No LAN connection IOLAN SDS2 LA/LE Hardware Installation Guide... -
Page 9: Installation
Warning: Transient protection shall be provided that is set at a level not exceeding 140% of the peak rated voltage value at the supply terminals to the equipment. IOLAN SDS2 LA/LE Hardware Installation Guide... -
Page 10: Connecting The Hardware
Follow the manufacturers instructions for attaching the ground wire to the grounding lug. 1. Attach the grounding lug to the chassis and secure with the grounding screw provided. See Figure 1. 2. Attach the power cord relief clip as shown in Figure 2. IOLAN SDS2 LA/LE Hardware Installation Guide... -
Page 11: Connecting The Console Port
Console Port The console port is an 8‐pin male connector (with DTE pinouts). 1. Connect the appropriate cable directly from the IOLAN SDS2 LA/LE to the COM port on your PC. An adapter kit can be ordered from Perle. 2. Choose Start > Control Panel > Systems or equivalent on the Windows Operating Sys‐... -
Page 12: Connecting Data Ports
To reset the IOLAN insert a paper clip into the inset hole labelled as Reset and gently press inwards. If you hold the reset button between 3 and 10 seconds, the IOLAN SDS2 L IOLAN SDS2 LA/LE Hardware Installation Guide... -
Page 13: Configuring The Iolan
(either the Perle or custom default configu‐ ration). If you hold the reset button greater than 10 seconds, then the IOLAN SDS2 L will reset the configuration to the Perle factory default configuration.The Power/Ready LEDs on the IOLAN SDS2 L will go On and then momentarily Off when released to show that the unit has been reset. -
Page 14: Appendix A - Technical Specifications
Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. https://www.perle.com/support_services/support_request.shtm Warranty / Registration This product is covered by the Perle IOLAN SDS Warranty. Details can be found at: https://www.perle.com/support_services/warranty.shtml IOLAN SDS2 LA/LE Hardware Installation Guide... -
Page 15: Appendix B - Mechanical Drawing
Appendix B - Mechanical Drawing IOLAN SDS2 LA/LE Hardware Installation Guide... -
Page 16: Appendix C - Sample Label
Appendix C - Sample Label IOLAN SDS2 LA/LE Hardware Installation Guide... -
Page 17: Appendix D - Cabling And Connectors
(NIC‐type or HUB/Switch‐type) connected to the port. Requirements: • Cat 5 UTP or STP, Cat 5e cables • 24‐22 AWG (0.20mm ‐ 0.33mm • Straight through or Ethernet Crossover cable IOLAN SDS2 LA/LE Hardware Installation Guide... -
Page 18: Appendix E - Iolan Maintenance
• Keep vent holes clear of debris • If case gets dirty wipe with a dry cloth • Ensure all cables are in good working condition and replace any frayed cables or cables without clips IOLAN SDS2 LA/LE Hardware Installation Guide... -
Page 19: Appendix F - Din Rail Mounting
2. Insert a flat blade screwdriver into the slot and twist the base to release the clip. Alter‐ natively a downward force on the clip will release the clip. 3. When the clip is released, pull the bottom of the IOLAN out slightly and remove the IOLAN from the DIN rail. IOLAN SDS2 LA/LE Hardware Installation Guide...
