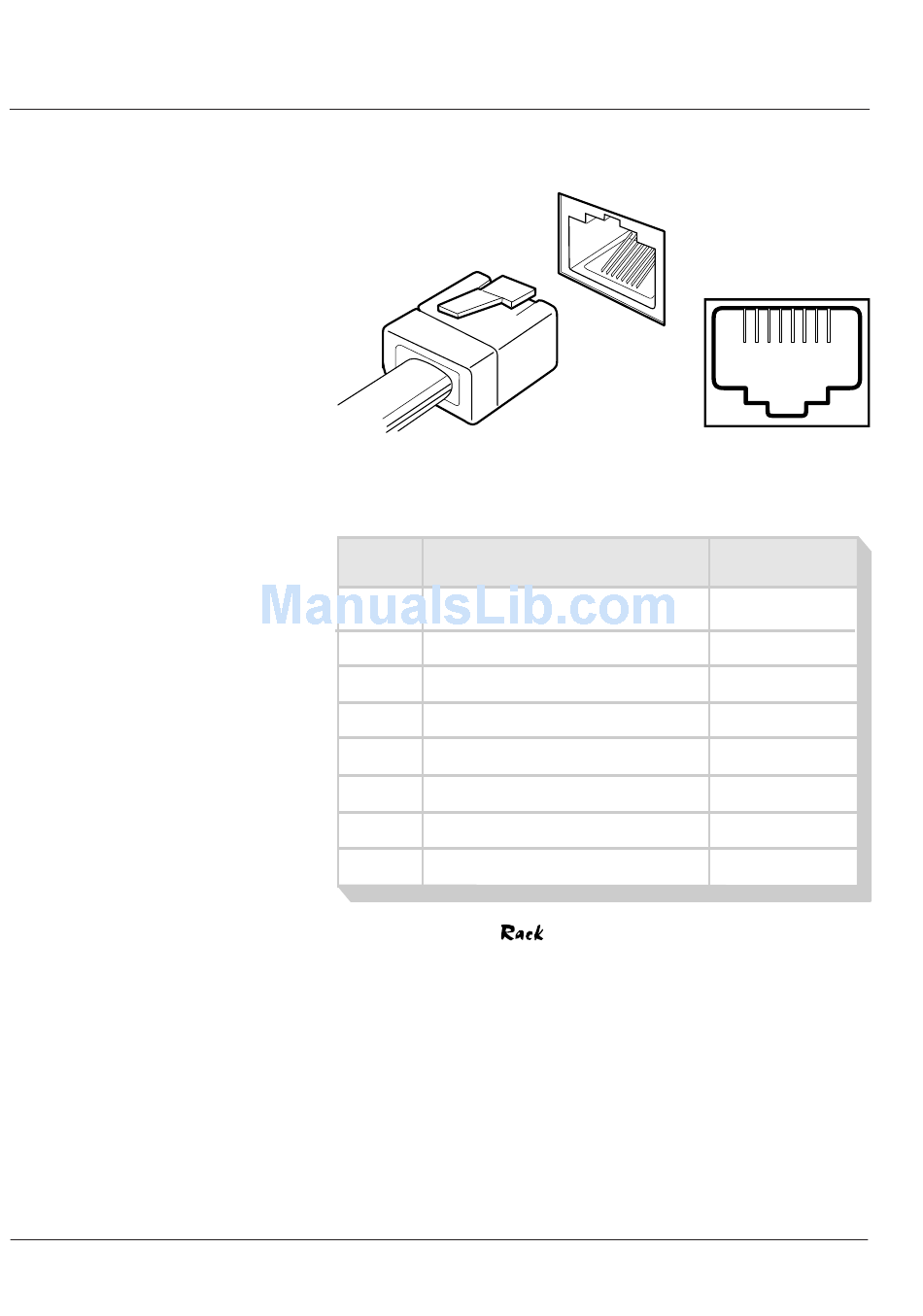

Figure 60: IOLAN+ RJ45 Connector.
Pin Description
1
Data carrier detect
2 Request to send
3 Data set ready
4 Transmitted data
5 Received data
6
Signal Ground
7 Clear to send
8 Data terminal ready
Figure 61: IOLAN+
RS-232 Pinouts (DTE)
(109)
(105)
(107)
(103)
(104)
(102)
(106)
(108)
, IOLAN+ 102/104 RJ45
Cabling Guide
1 2 3 4 5 6 7 8
Direction
Input
Output
Input
Output
Input
Ref
Input
Output
