Perle IOLAN SCG Quick Start Manual

______________________________________________________________
The IOLAN SCG gives you a way to access serial devices remotely from anywhere
there is a network connection.
This guide covers basic installation and configuration and is intended for first time
setup or product evaluation. Complete details can be found in the following guides
www.perle.com/downloads.
at
• IOLAN Secure User's Guide
• IOLAN Secure Command Line Interface Reference Guide
• IOLAN SCG Hardware Installation Guide – Expandable Models
IOLAN SCG Models

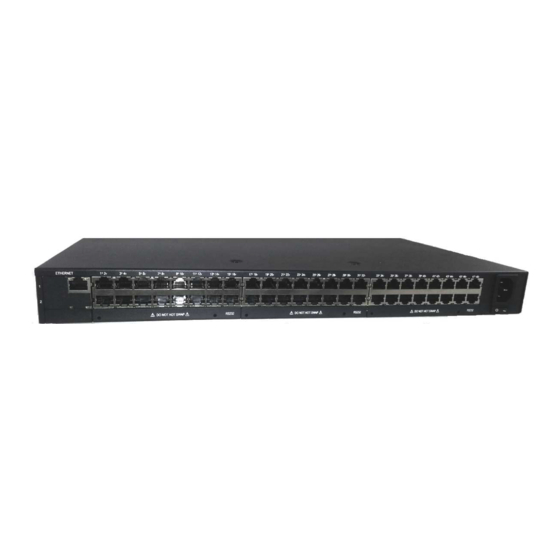

All IOLAN SCG models have the following basic hardware set. 16/32/48, RJ45 serial
and/or 16/32/48 USB ports (any combination of USB/RJ45 ports), using 16 port
expansion modules.
• 2 RJ45 auto-sensing Ethernet 10/100/1000 Mbps ports
• 2 SFP 100/1000 Ethernet transceiver ports
• 1 Micro-USB and 1 RS232 RJ45 Console Admin Port
• 2 USB front ports for serial class devices
• Front Panel Display with keyboard
Note: When using Ethernet Combo ports (RJ45 and SFP pair), only one interface
will be active at a time.
Optional hardware
• Internal V.92 modem with one RJ11 connector
• Cellular WWAN capability based on 4G LTE technology (North American or
European)
• SIM card slot to be used for 4G LTE networks
• Wireless LAN (Wifi) client 802.11 a,b,g,n @2.4Ghz/5Ghz support
What's in the box?
The following components are included with your product:
✓
IOLAN SCG Chassis: 1U-tall (1.75 inch), rack-mountable chassis
• Combination of:
• 16 port USB, RS232 or RS232/422/485 RJ45 modules
to a maximum total of 48 ports in the back of the unit
IOLAN SCG Quick Start Guide – Expandable Models
IOLAN SCG
Expandable Models
Quick Start Guide
P/N 5500437-10 (Rev E) 1
